6 Timer mode
74 © Copyright Reserved Autonics Co., Ltd.
Output
mode

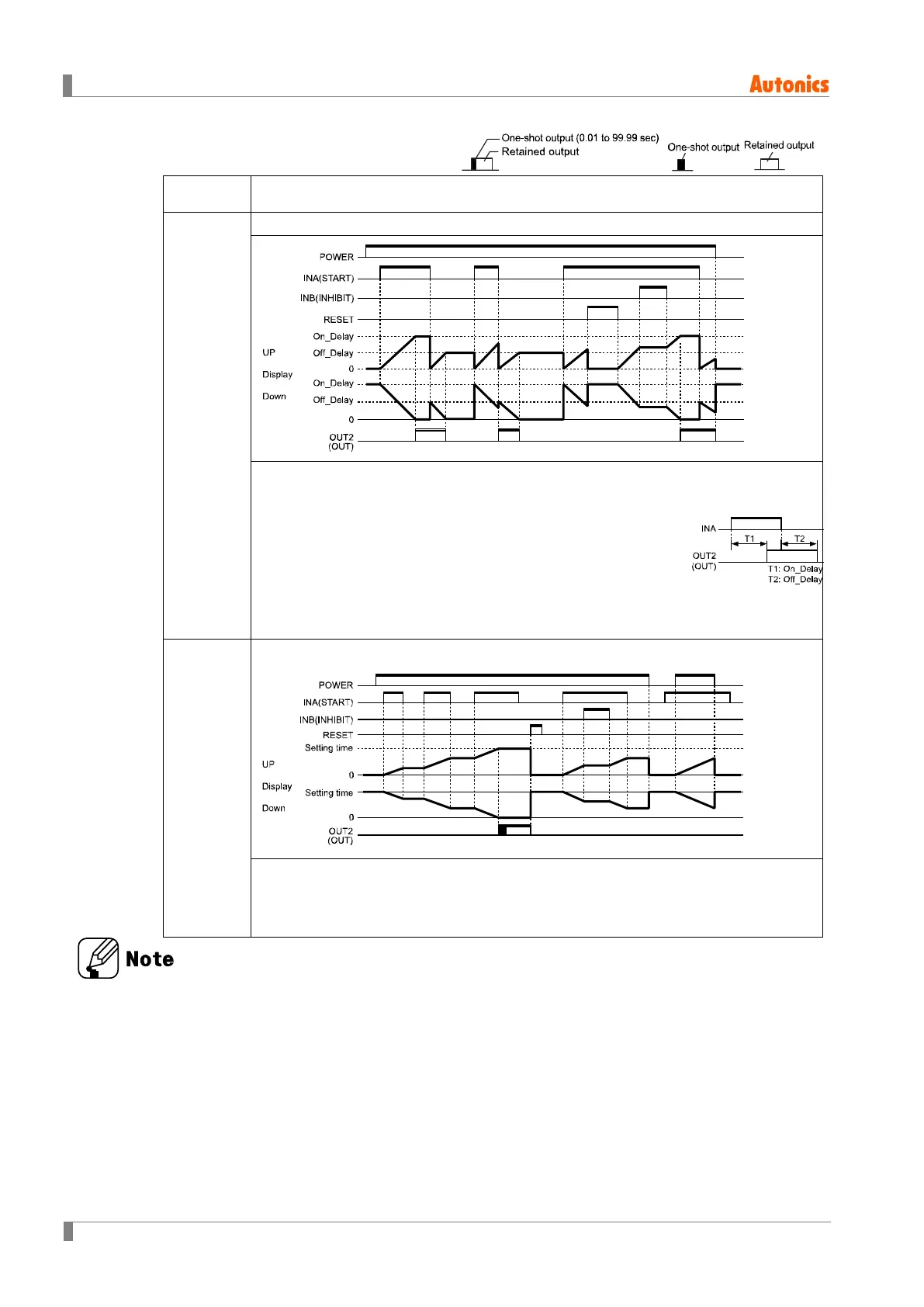

Time chart
NFD.1
[NFd1]
On-Off Delay1 (Power RESET)
1)When INA input turns ON, time progresses and output
turns ON after On_Delay time.
2)When INA input turns OFF, time progresses and output
turns OFF after Off_Delay time.
3)If INA input turns OFF within On_Delay time, output will
turn ON and step 2 operate.
4)If INA input turns ON within Off_Delay time, output will
turn OFF and step 1 operate.
INTG
[INTG]
Integration Time (Power RESET)
1)Time is progressing while INA input is ON.
2)Time progress stops while INA input is OFF.
3)When it reaches the setting time, output is ON.
※Power RESET: There is no memory protection. (resets the display value when power is off)
※Power Hold: There is memory protection. (memorizes the display value at the moment of
power off, indicates the memorized display value when power is resupplied.)
