6 Timer mode
76 © Copyright Reserved Autonics Co., Ltd.
Output
mode

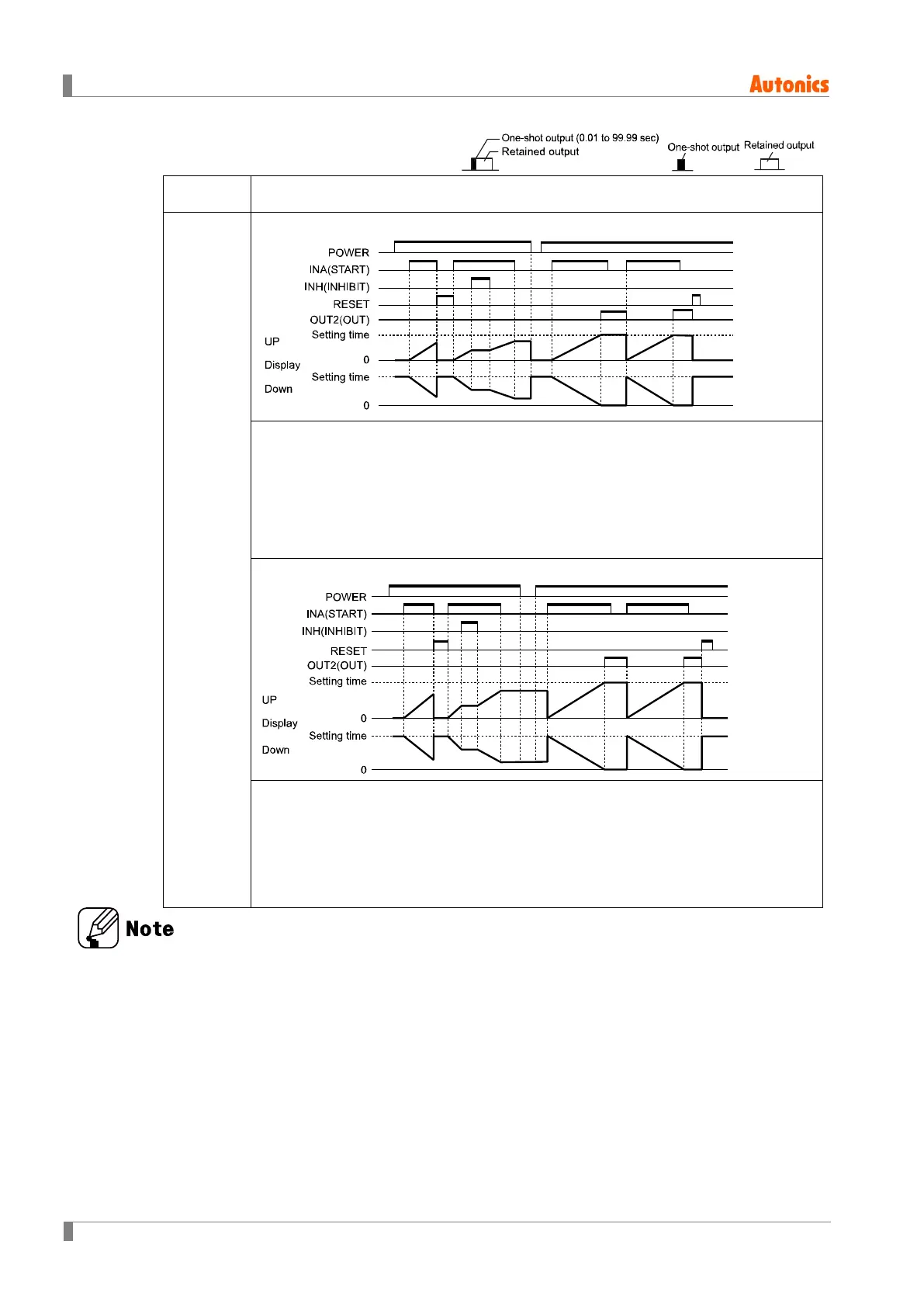

Time chart
ON TIME
Display
[ONtD]
When memory protection setting is OFF
※ON time indicate mode of INA signal.
1)Time reset start operates when INA signal turns ON.
2)Time progress stops while INA signal is OF F.
3)When INA signal is OFF, if INA input time is greater than the setting time, the
display value flashes and the operation stops until RESET signal ON.
※1
4)When time progress stops and power turns O F F, the progressed time is reset.
When memory protection setting is ON
※ON time indicate mode of INA signal.
1)Time reset start operates when INA signal turns ON.
2)Time progress stops while INA signal is OFF.
3)When time progress stops and power turns OFF, the progressed time at the
moment
of power OFF is memorized.
※1: For free voltage input model (CX6□-□□F).
※Power RESET: There is no memory protection. (resets the display value when power is off)
※Power Hold: There is memory protection. (memorizes the display value at the moment of
power off, indicates the memorized display value when power is resupplied.)
※When memory protection setting is OFF, it does not memorize the display value
when power turns OFF. (the display value is reset when power turns OFF)
※When memory protection setting is ON, it memorizes the display value when power turns OFF.
.When re-suppling the power, it displays the memorized value.
