LCD Display Timer
Rt: Reset time (min. 500ms)

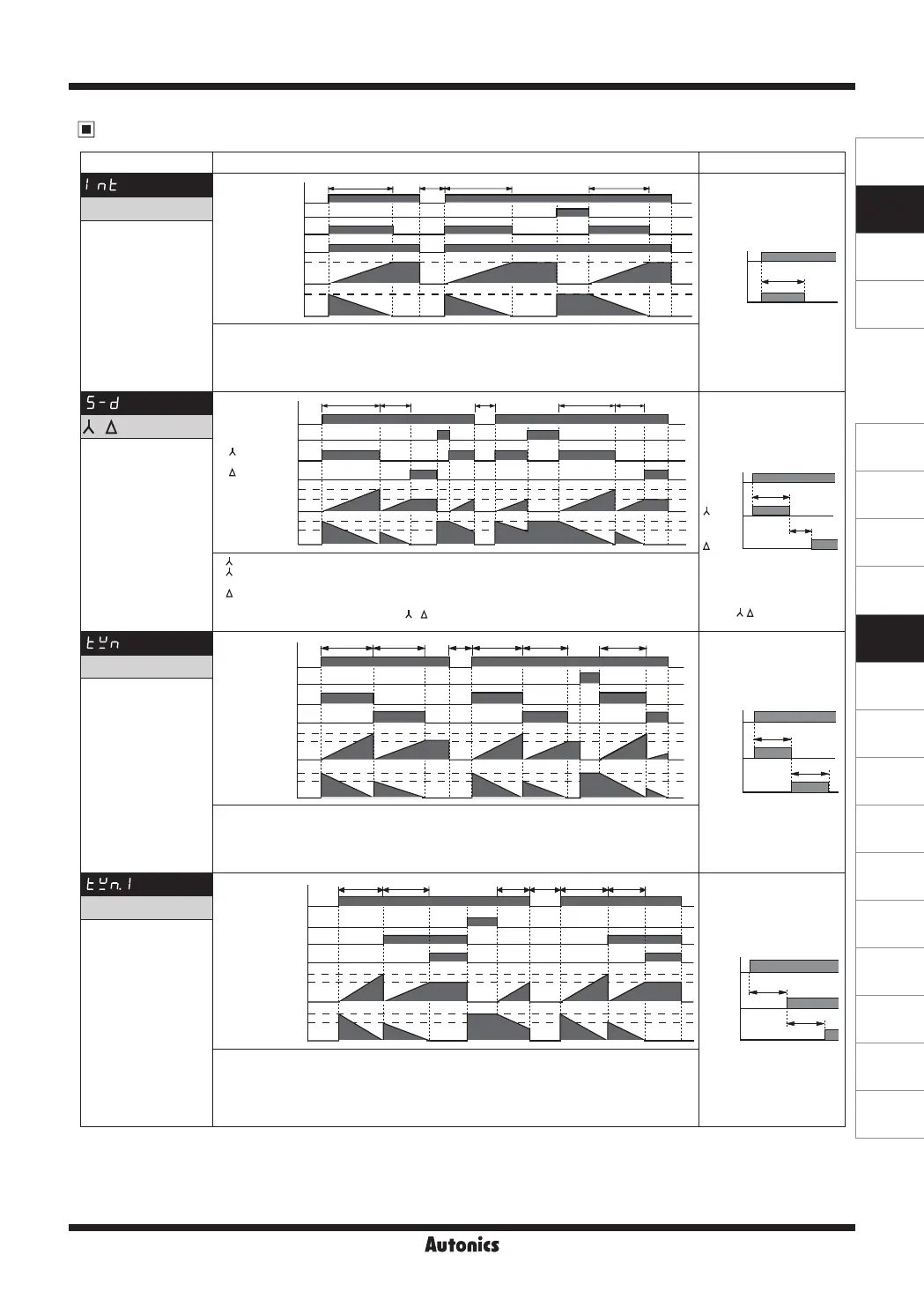

LE4SA Output Operation Mode
Mode Time chart Operation
[ ]
POWER
※
RESET
Time limit contact
(
⑧
-
⑥
)
Instantaneous contact
(
①
-
③
)
Setting time
Setting time
0
0
UP
DOWN
T T TRt
T
POWER
Time limit
contact
output
INT
Interval
1. Time limit output will be ON when power is ON and Timing operation starts.
2. Time limit output will be OFF when timing operation is progressed up to the setting time. Display value will be
HOLD.
3. If selecting time limit 1c + instantaneous 1c mode, instantaneous output will be ON when power is ON and
goes OFF when power is OFF.
4. If pressing RESET key, display value and time limit output will be reset.
[ ]
T1 T2 T1 T2Rt
POWER
※
RESET
contact (
⑧
-
⑥
)
contact (
①
-
③
)
Setting time
Setting time
T1
T2
0
T1
T2
0
UP
DOWN
POWER
contact
contact
T1
T2
-
Star-Delta
(output will be set
automatically
as Time limit 2c)
1. contact will be ON when power is ON and Timing operation starts.
2. contact will be OFF when timing operation is progressed up to the T1 setting time.
Timing operation will be reset and started again.
3. contact will be ON when timing operation is progressed up to the T2 switching time.
Display value will be HOLD.
4. If pressing RESET key, display value and - contacts will be reset.
5. It is able to set each T1 and T2 time separately.
[ ]
T1 T1T2 T2Rt T1
POWER
※
RESET
T1 contact (
⑧
-
⑥
)
T2 contact (
①
-
③
)
Setting time
Setting time
T1
T2
0
T1
T2
0
UP
DOWN
POWER
T1 contact
T2 contact
T1
T2
T
Twin
(output will be set
automatically
as Time limit 2c)
1. T1 contact will be ON when power is ON and Timing operation starts.
2. T1 contact will be OFF and T2 contact will be ON when timing operation is progressed up to the T1 setting
time. Timing operation will be reset and started again. T2 contact will be OFF when timing operation is
progressed up to the T2 setting time. Display value will be HOLD.
3. If pressing RESET key, display value and T1, T2 contacts will be reset.
4. It is able to set each T1 and T2 time separately.
[ ]
T1 T1Ta T2T2 Rt
POWER
※
RESET
T1 contact (
⑧
-
⑥
)
T2 contact (
①
-
③
)
Setting time
Setting time
T1
T2
0
T1
T2
0
UP
DOWN
POWER
T1 contact
T2 contact
T1
T2
T
Ⅰ
Twin 1
(output will be set
automatically
as Time limit 2c)
1. Timing operation starts when power is ON.
2. T1 contact will be ON when timing operation is progressed up to the T1 setting time. Timing operation will be
reset and started again.
3. T2 contact will be ON when timing operation is progressed up to the T2 setting time. Display value will be
HOLD.
4. If pressing RESET key, display value and T1 and T2 contacts will be reset.
5. It is able to set each T1 and T2 time separately.
※
T1: set time
T2: switching time
( - switching time)
T1, T2 = set time
Enables to set T1 and T2
time same or di󰀨erently
T1, T2 = set time
Enables to set T1 and T2
time same or di󰀨erently
T = set time
※
Initial status: UP mode-display value is "0", output is "OFF". DOWN mode-display value is "setting time", output is "OFF".
※
Instantaneous contact (OUT2) will be returned when power is o󰀨.
※
RESET key is locked for default set and release the lock to use.
