Autonics LE4S Series User Manual

N-36
LE4S Series
T = Setting time, T > Ta, Rt = Reset time

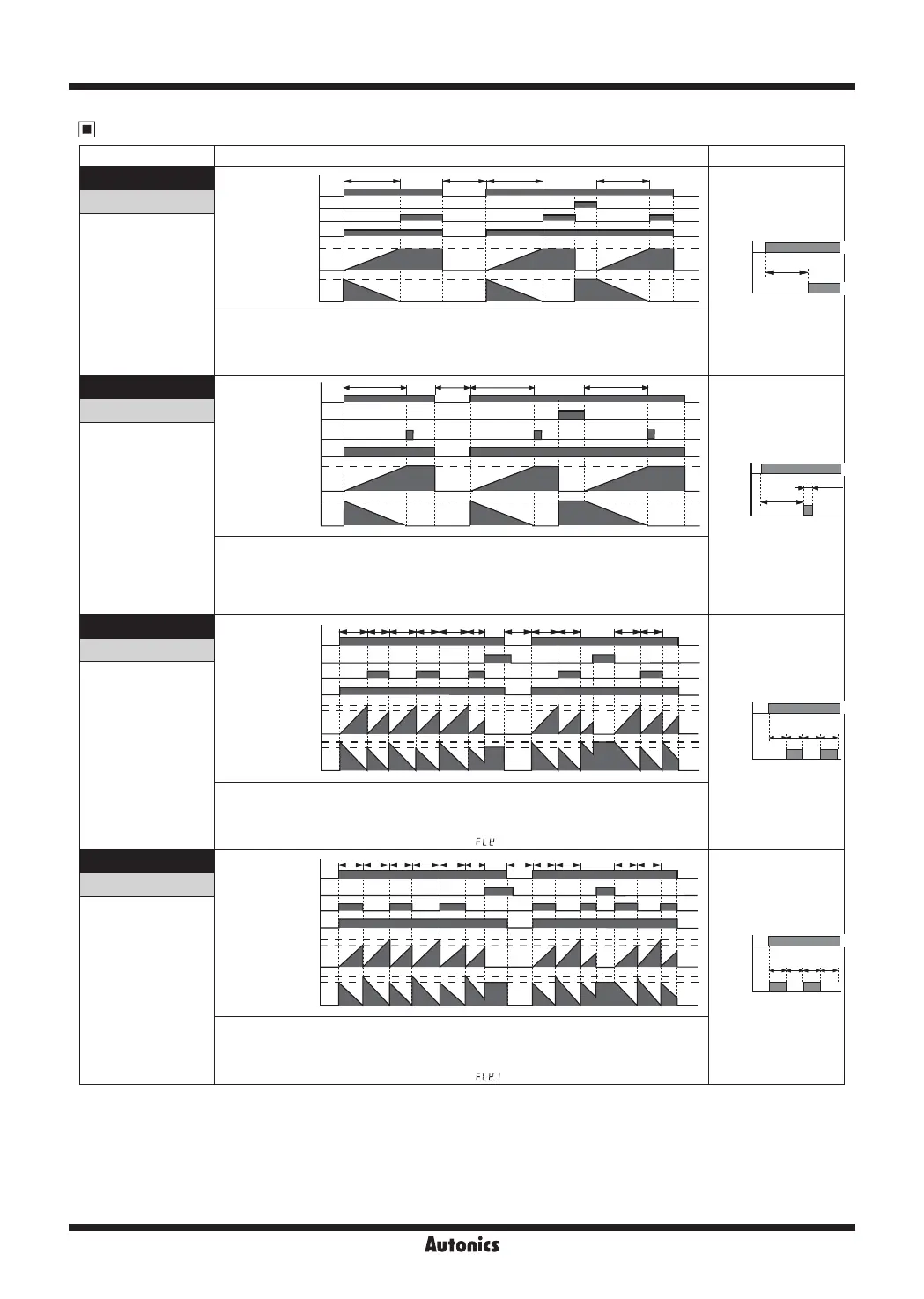

LE4SA Output Operation Mode
※
Initial status: UP mode-display value is "0", output is "OFF". DOWN mode-display value is "setting time", output is "OFF".
※
Instantaneous contact (OUT2) will be returned when power is o󰀨.
※
RESET key is locked for default set and release the lock to use.
Mode Time chart Operation
[
OND
]
POWER
※
RESET
Time limit contact
(
⑧
-
⑥
)
Instantaneous contact
(
①
-
③
)
Setting time
Setting time
0
0
UP
DOWN
T T TRt
T
POWER
Time limit
contact
output
OND
ON Delay
1. Timing operation starts when power is ON.
2. Time limit output will be ON when timing operation is progressed up to the setting time. Display value will be
HOLD.
3. If selecting time limit 1c + instantaneous 1c mode, instantaneous output will be ON when power is ON and goes
OFF when power is OFF.
4. If pressing RESET key, display value and time limit output will be reset.
[
ONd2
]
POWER
※
RESET
Time limit contact
(
⑧
-
⑥
)
Instantaneous contact
(
①
-
③
)
Setting time
Setting time
0
0
UP
DOWN
T T TRt
T
Tout
POWER
Time limit
contact
output
OND
Ⅱ
ON Delay 2
(One-shot output)
1. Timing operation starts when power is ON.
2. Time limit output will be ON during Tout setting time and goes OFF when timing operation is progressed up to
the setting time. Display value will be HOLD.
3. If selecting time limit 1c + instantaneous 1c mode, instantaneous output will be ON when power is ON and goes
OFF when power is OFF.
4. If pressing RESET key, display value and time limit output will be reset.
5. Tout setting range: 0.01 sec to 99.99 sec
[
FLK
]
POWER
※
RESET
Time limit contact
(
⑧
-
⑥
)
Instantaneous contact
(
①
-
③
)
To󰀨
Ton
To󰀨
Ton
0
0
UP
DOWN
RtTo󰀨 To󰀨 To󰀨 To 󰀨To󰀨 To n Ton Ton TonTa
To󰀨
To󰀨
Ton
Ton
POWER
Time limit
contact
output
FK
Flicker
(To󰀨 operation
precedes)
1. Control output will be repeatedly OFF during To󰀨 setting time and will be ON during Ton setting time when
power is ON.
2. If selecting time limit 1c + instantaneous 1c mode, instantaneous output will be ON when power is ON and goes
OFF when power is OFF.
3. If pressing RESET key, display value and time limit output will be reset.
4. It is able to set each To󰀨 time and Ton time separately. In [ ] mode, timing operation starts with To󰀨.
[
FLk1
]
POWER
※
RESET
Time limit contact
(
⑧
-
⑥
)
Instantaneous contact
(
①
-
③
)
To󰀨
Ton
To󰀨
Ton
0
0
UP
DOWN
RtTo󰀨 To n To 󰀨 To󰀨To󰀨Ton To n Ton To nTa
To󰀨 To󰀨Ton
Ton
POWER
Time limit
contact
output
FK
Ⅰ
Flicker 1
(Ton operation
precedes)
1. Control output will be repeatedly ON during Ton setting time and will be OFF during To󰀨 setting time when
power is ON.
2. If selecting time limit 1c + instantaneous 1c mode, instantaneous output will be ON when power is ON and goes
OFF when power is OFF.
3. If pressing RESET key, display value and time limit output will be reset.
4. It is able to set each Ton time and To󰀨 time separately. In [ ] mode, timing operation starts with Ton.
Ton, To󰀨 > Ta
Tout = output time
T = set time
T = set time
Ton, To󰀨 = set time
Enables to set Ton and
To󰀨 time di󰀨erently.
Ton, To󰀨 = set time
Enables to set Ton and
To󰀨 time di󰀨erently.
