The probe outputs different pulse signals to the injector, and check
the injector spraying status. This function can help diagnose
injector conditions. It can work with any fuel pressure tester.
Injector test
13
Signal Output Mode
MODE 1:
Press “OK” button to activate probe outputs 1 pulse. Pulse
width is 250ms.
MODE 2:
Press “OK” button to activate probe outputs 50 pulses. Pulse
width is 7ms.
MODE 3:
Press “OK” button to activate probe outputs 100 pulses. Pulse
width is 4ms.
MODE 4:
Press “OK” button to activate probe outputs continuously at the
rate of 50 pulses in 1450ms. every pulse width is 7ms, press
“OK” button again to stop.
●

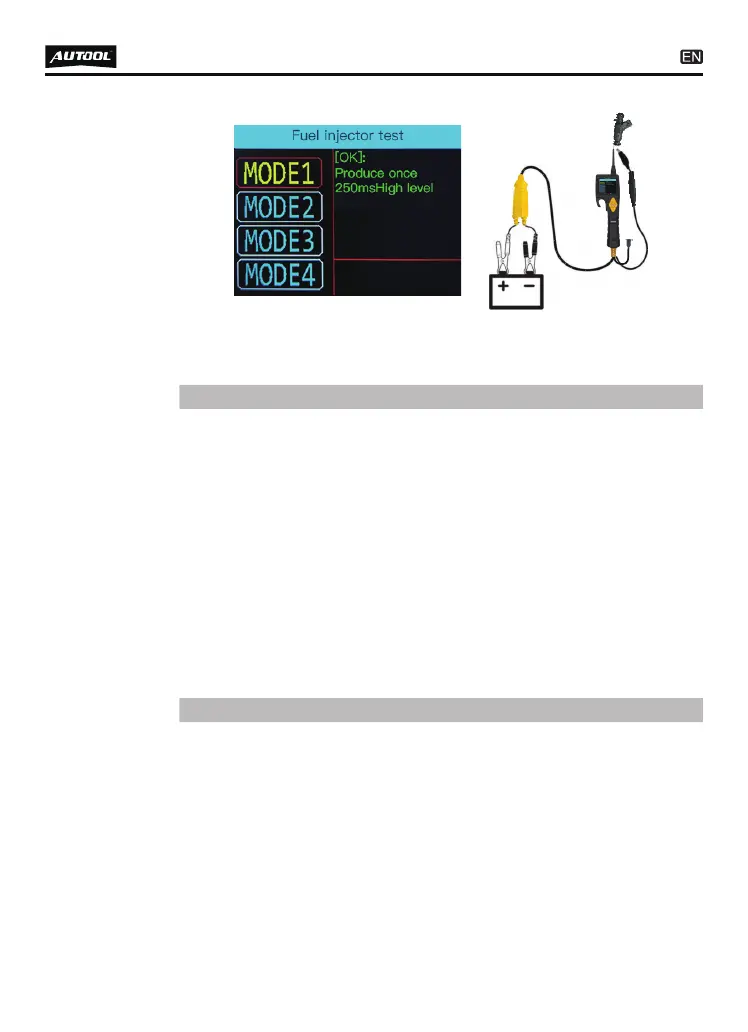

Test Fuel Injector
Turn off the Vehicle’s engine
Connect the BLACK clip to the negative terminal of the battery
and the RED clip to the positive terminal of the battery.
Unplug the connector from the fuel injector, connect the probe
auxiliary ground lead to the negative side of the injector, and
probe tip to the positive side of the injector.
After enter into the injector test function, select the test mode.
Press “OK” button to trigger the test.
Check the injector spraying status to diagnose the condition.
●
●
●
●
●
●
●
●
●
