20
●
●
●
You have connected the probe tip to the direct ground or nega-
tive voltage.
The component you are testing is short circuited.
The component is a very high current component. (such as
STARTER MOTOR)
If the probe circuit breaker tripped, it means the probe is overload-
ed. This could happened by the following reasons:
If the probe restart for the circuit breaker tripped or the displayed
message OVERLOADED on LCD screen, you can adjust the
overload current value and repeat the above operation to further
activation.
●
●
●
●
●

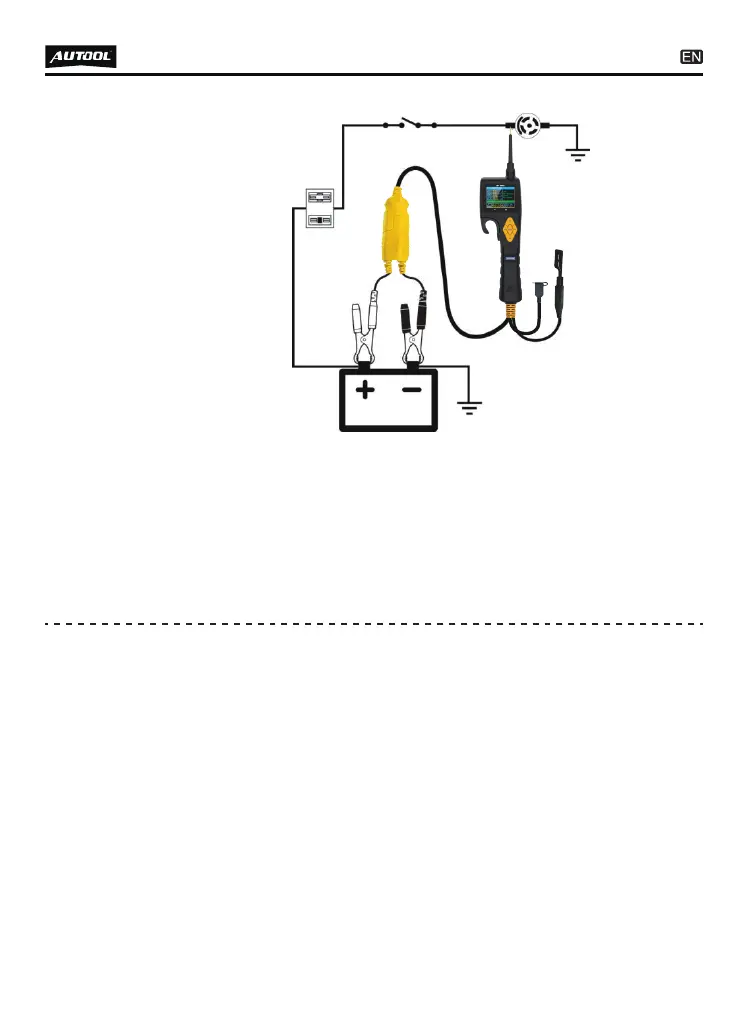

Hook up the battery clip to power supply.
Enter into component activation, select MOMENT mode
function.
Connect the auxiliary ground lead to the negative terminal of
the component being tested.
Connect the probe tip to the positive terminal of the compo-
nent, press “DOWN” button to trigger activation test.
The LCD screen will display the value of VDC, AMP, and VCC.
Test Procedure
Activating
components /
Ground
To Next Page
