6 LOGIX™ SERIES INSTALLER QUICK-START SHEET
Rev A
QUICK START
Manual Regeneration Procedures
To Initiate a Manual Regeneration:
• Press REGEN once for delayed regeneration.
System will regenerate at next set regen time (2:00 AM).
A flashing regen (recycle) symbol will be displayed.
• Press and hold REGEN for 5 seconds to initiate immediate manual
regeneration. A solid regen symbol will be displayed.
• After immediate regeneration has begun, press REGEN again to initiate a
second manual regeneration. An X2 symbol will be displayed, indicating a
second regeneration will follow the first regeneration.
During a Regeneration:
• A "C#" is displayed to show current cycle.
• Total regen time remaining is displayed on screen.
• Press and hold SET to show current cycle time remaining.
To Advance Regeneration Cycles:
• Press and hold SET - showing current cycle time.
• Simultaneously press SET and UP to advance one cycle.
An hourglass will display while cam is advancing.
When cam reaches next cycle, "C2" will be displayed.
• Repeat SET and UP to advance through each cycle.
• Press and hold SET and UP buttons for 5 seconds to cancel regen.
Hourglass will begin flashing, indicating regen is cancelled.
Camshaft will advance to home - may take 1-2 minutes.
Regeneration Cycles:
•C1 - Backwash
• C2 - Regenerant Draw/Slow Rinse (not used in filter mode)
• C3 - Slow Rinse (not used in filter mode)
• C4 - System Pause (to repressurize tank)
• C5 - Fast rinse cycle 1
• C6 - Backwash cycle 2 (not used in filter mode)
• C7 - Fast Rinse cycle 2 (not used in filter mode)
• C8 - Regenerant refill (not used in filter mode)
Time & Day
Regen Time & Day
Salt
SU MO TU WE TH FR SA DAYS
C
Capacity
Hardness
MIN
x2

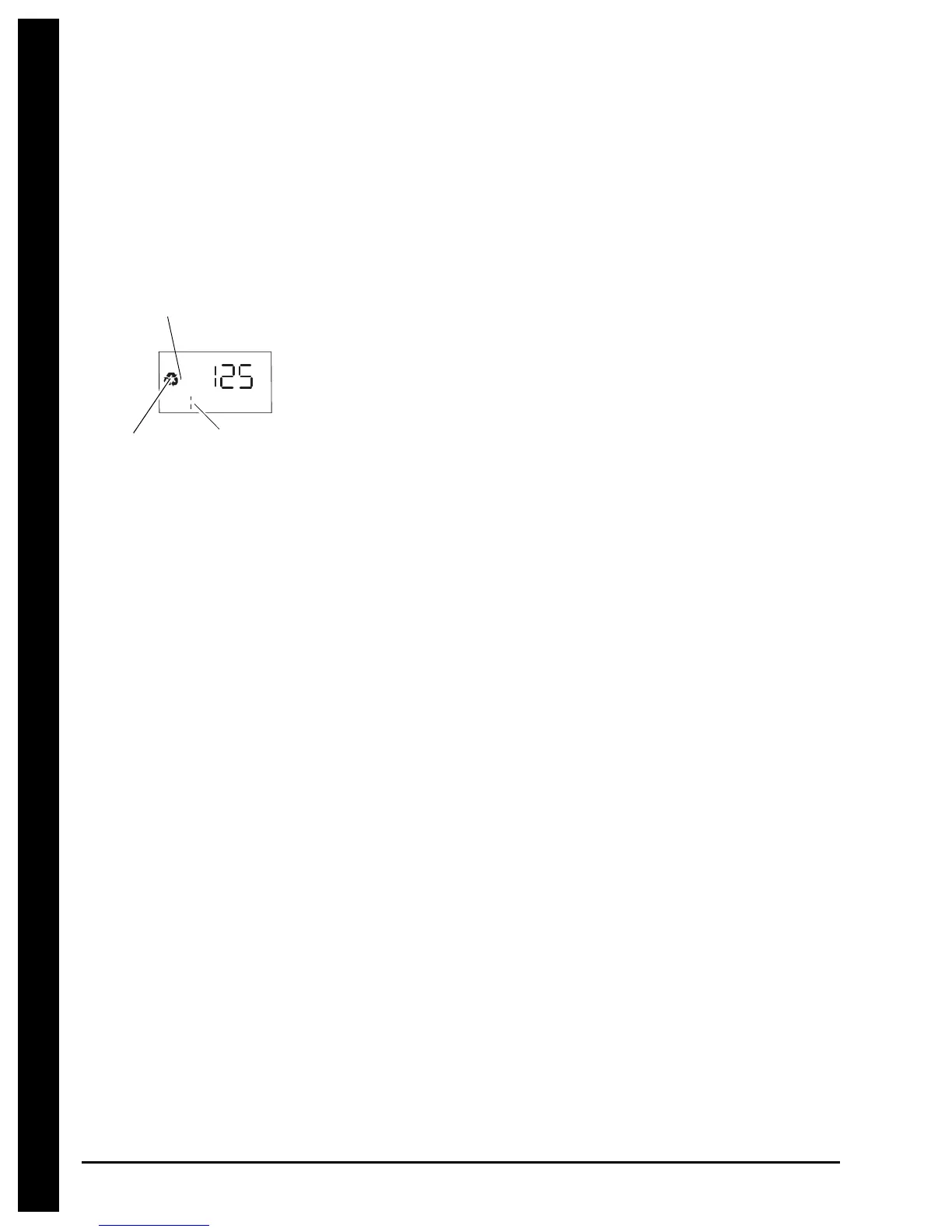

Cycle Indicator
Regen Symbol
Second Manual Regen Symbol
