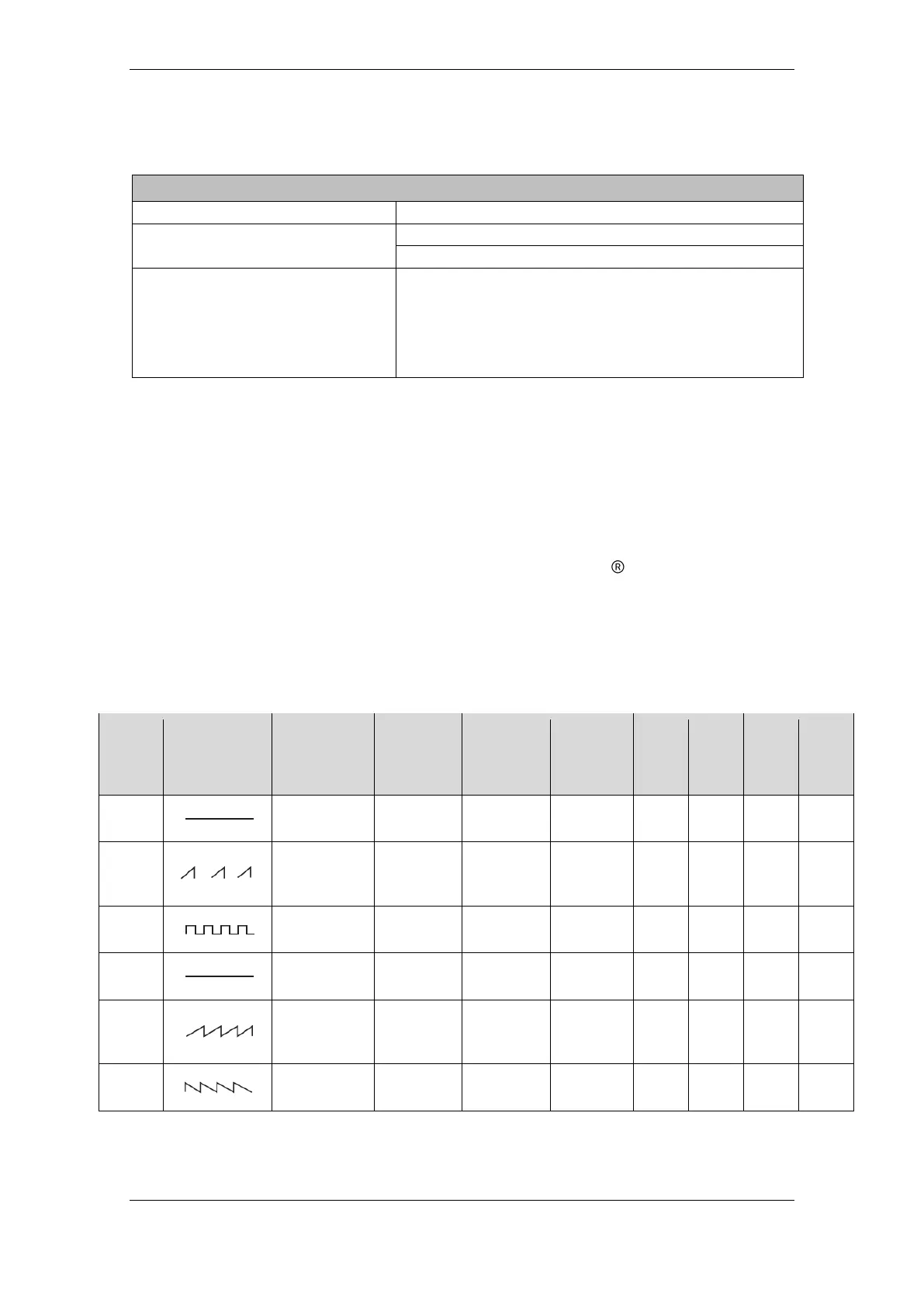

4.2 Integrated Sounder
Technical specifications INTEGRATED SOUNDER
Sound pressure (dB @ 1m)
HIGH VOLUME : Maximum 93 dBA at 1m range
Current consumption
HIGH VOLUME: 5,8mA
LOW VOLUME: 2,2mA
Sound patterns
16 standard tone types/ 16 standard tone
types/frequencies and corresponding ringing patterns
are available (see next chapters). In addition, ringing
patterns for the standard tone types/frequencies can be
configured to meet other user requirements.
4.3 Tones
EN54-3 approved tones
The following table provides an overview of the sound pressure levels
for EN 54-3-approved tones for AutroGuard multicriteria protector
series with sounders:
 V-430-S
 V-430-S-VADR
 V-430-S-VADW
 V-530-S-VADW
Sound
Source
TONE TYPE
Frequencies
Temporal
Pattern
Name/Use
Standard
High
vol.
max.
db(A)
High
vol.
min..
db(A)
Low
vol.
max.
db(A)
Low
vol.
min..
db(A)
0
915 Hz
Continuous
Continuous
915
91
73
84
66
1
500-1200 Hz
3.5 s sweep,
0.5 s OFF
Dutch slow
whoop 500-
1200
NEN2575
93
78
83
70
2
730 Hz &
915 Hz
2Hz
Alternating
730 & 915
BS Fire
tone
90
73
82
65
3
3650 Hz
Continuous
Continuous
3650
90
70
90
70
5
800 - 970 Hz
7Hz
Whoop
800-970
7Hz
BS Fire
tone
91
77
82
70
7
1200 - 500 Hz
1Hz
DIN tone
1200-500
DIN33404-
3
90
77
82
70
