9.3.2 Wire Routing Arrangement Inside Protector Base

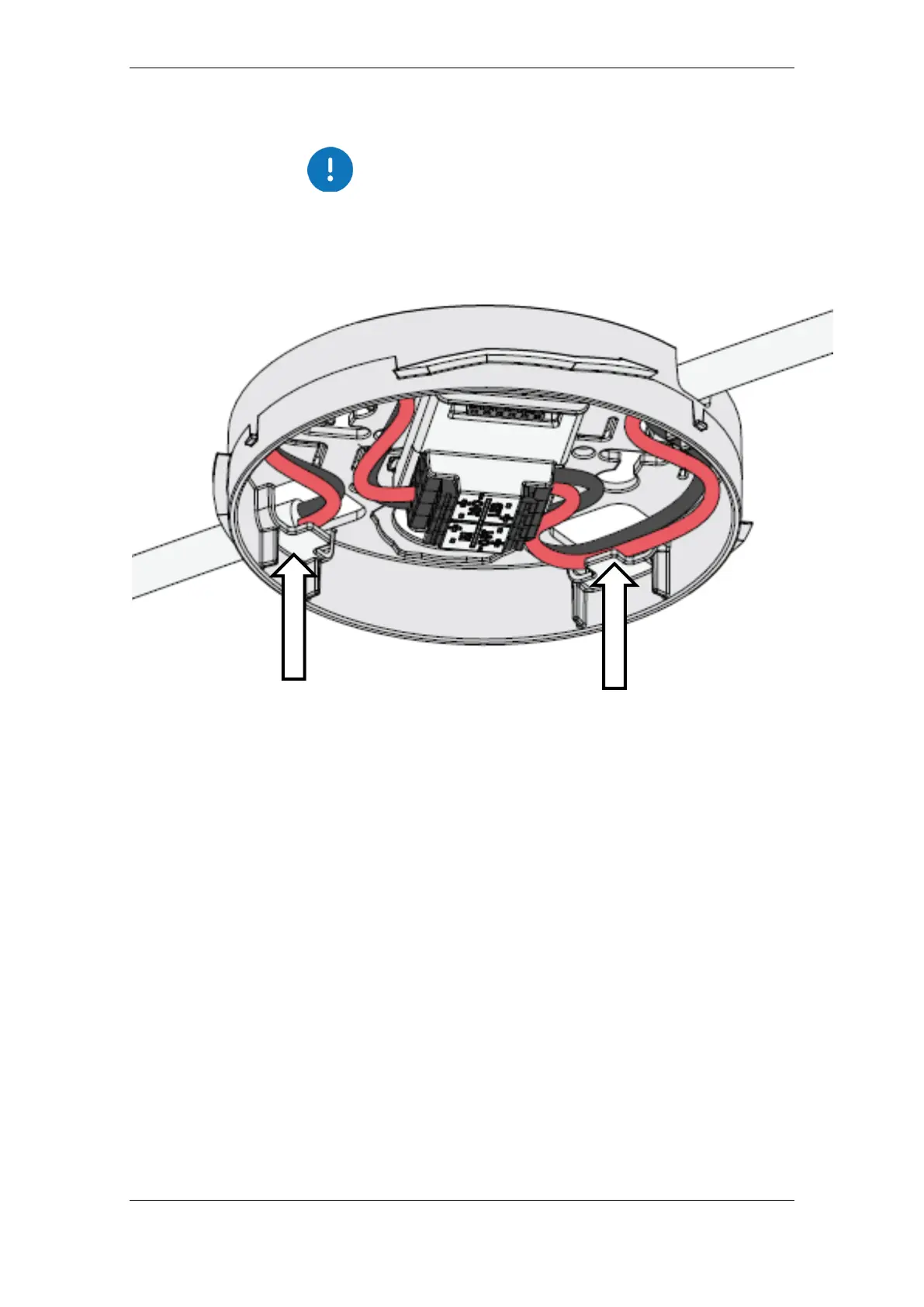

The wires must be supported by the cable holders. Make sure that
the wire routing arrangement shown below is used (the arrows point
to the cable holders).
