Mounting Instructions
Technical Handbook, AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339, Revision 1, 2020-06-29,
Autronica Fire and Security
Page 49
9.2.3 Mounting for Concealed Conduit Wiring

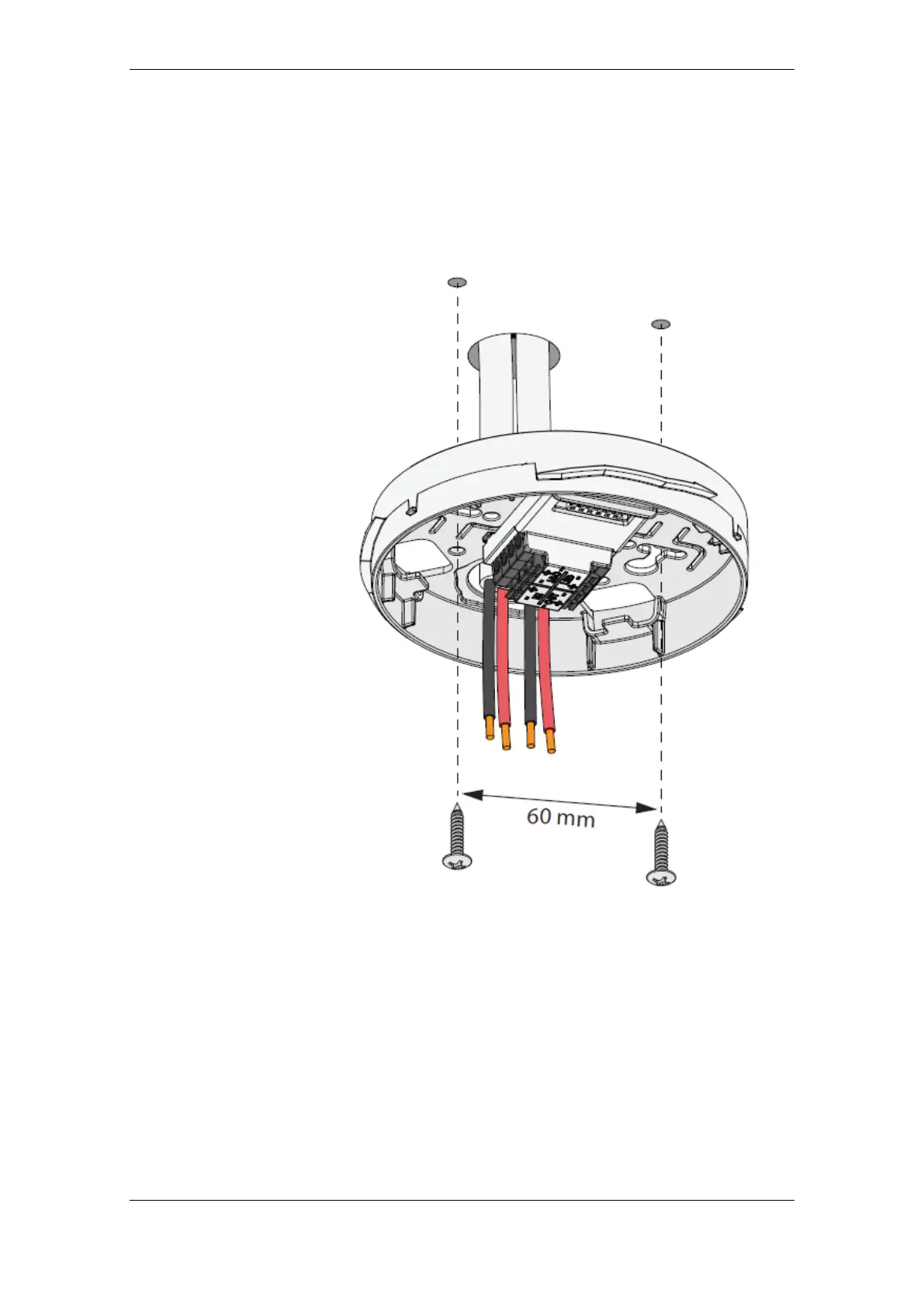

Mark and drill the necessary holes as decribed in chapter 9.2.2
Feed the cables through the Ø25 mm cable entry as shown
Mount the protector base to the ceiling by fastening the screws
