Mounting Instructions
Technical Handbook, AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339, Revision 1, 2020-06-29,
Autronica Fire and Security
Page 46

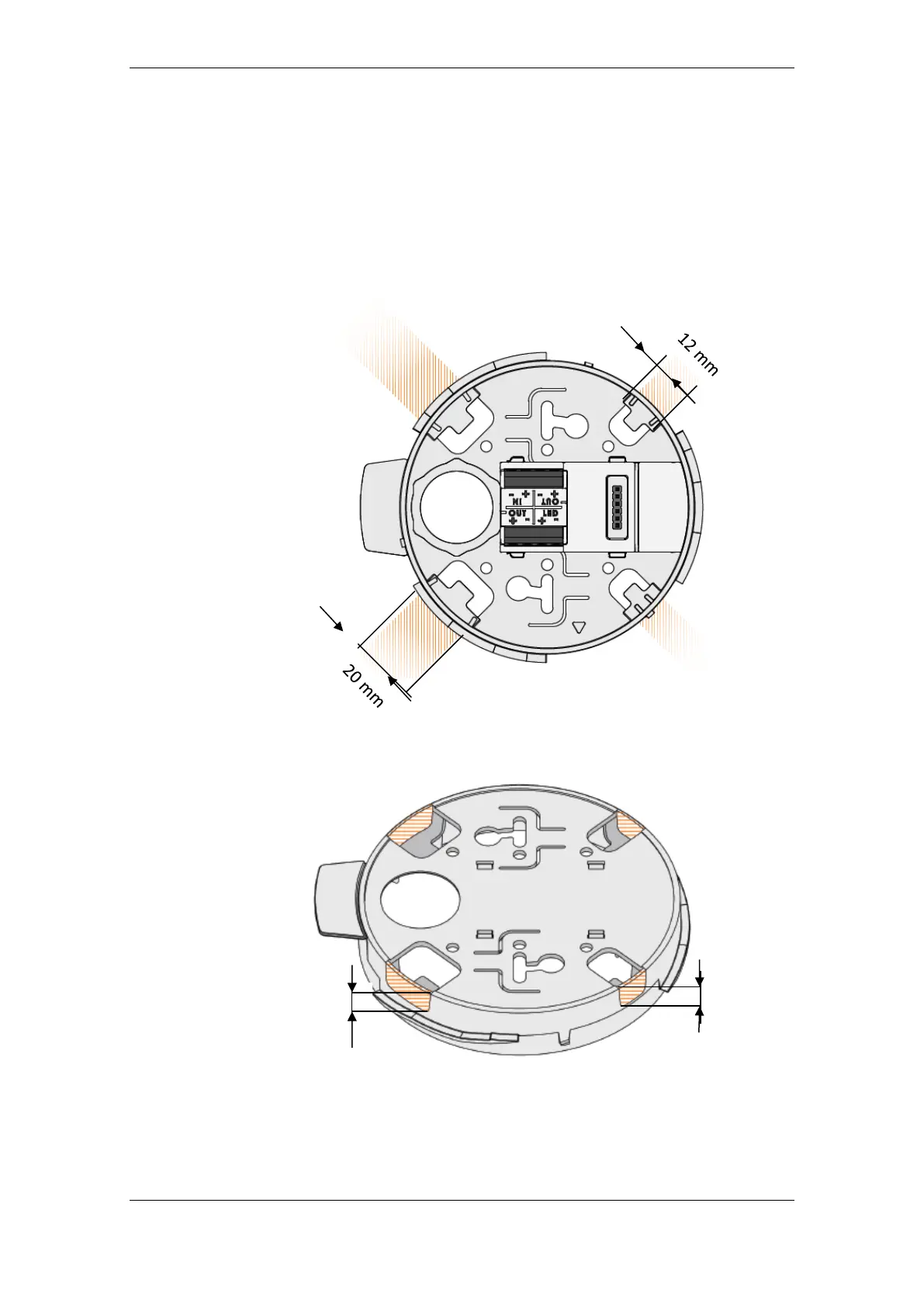

9.1.2 Cable Entries/Knockout Stampings for Surface-mounted Wiring
For surface-mounted wiring there are four optional cable entries
(knockouts) on the side of the protector base (see drawing) which
allow easy entry of the cables to the interior (two 9x12mm and two
9x20mm entries).
9 mm
9 mm
