9.3.4 Spring Cage Connection

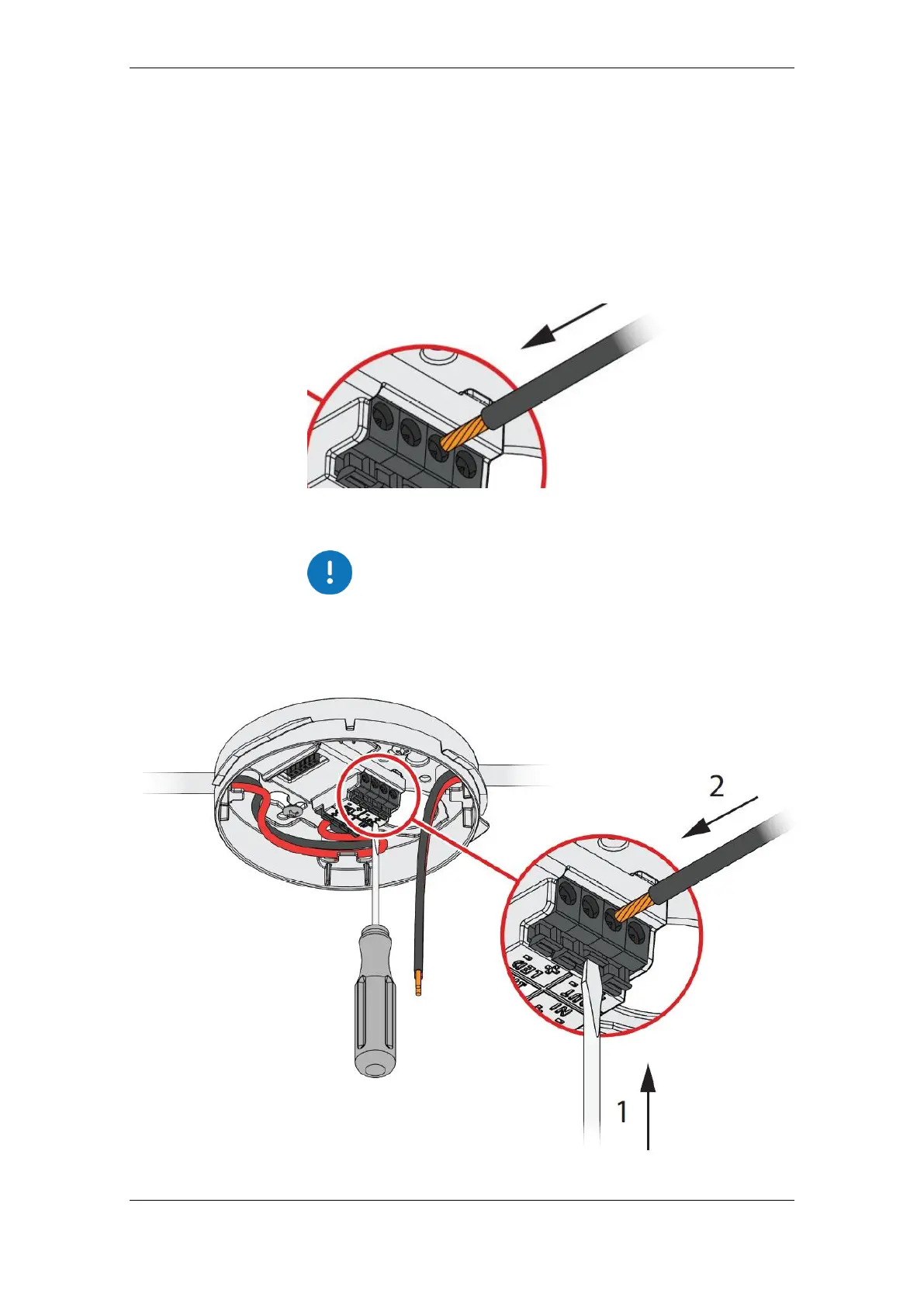

The connectors are “push-in” type (spring-cage connection), and do
not require tools for stiff cables with larger cross section
(> 0,5mm² and up to a maximum of 2,5mm²).
Insert the cable straight towards and into the connector
Verify that the cable is properly connected
To ensure proper connection of loop cables that are 0,5mm² or less,
make sure to push the connector lever fully down with a small
screwdriver before inserting the cable.
