Section Two the disassembly and the relating attention issues to the series product
of 18000BTU~24000BTU
Attention: Turn off the air-conditioner and pull out the plug of the power supply before the
service.
2. Indoor unit:

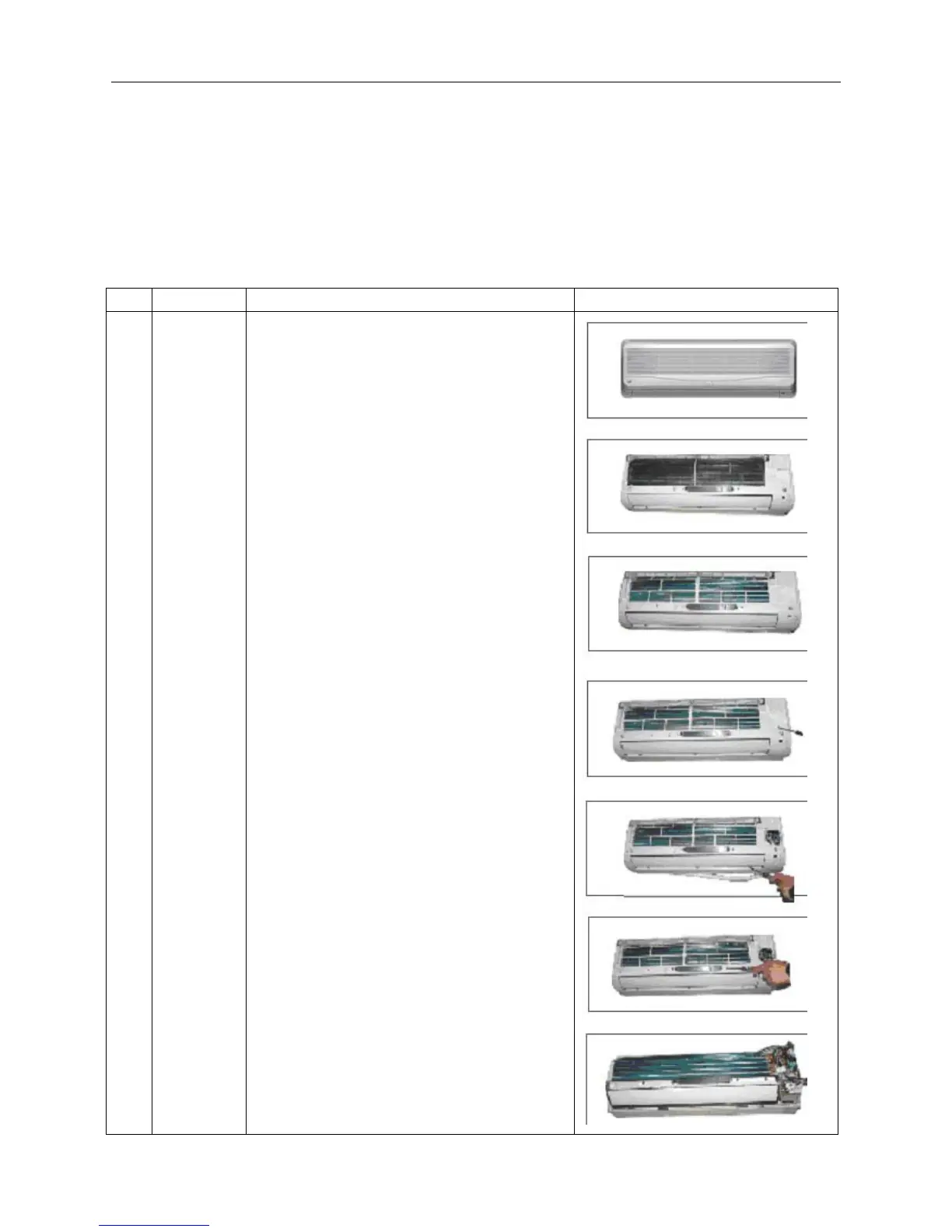

No. Part Operation Process
Remark
1 Front
panel
1) Turn off the air-conditioner and cut off
the power supply;
2) Remove the adhesive tape sticking to
the panel.
4) Hold the handles at both sides of the
panel and push upward to have it slip
out;
5) Grasp the both sides of the panel and
push upward;
6) Turn the upper board by 90°and unload
it from the connecting pole carefully;
7) Take out the filter from the right and left
side.
8) Screw off the bolts on the electrical box
cover and unload the box cover;
9) Screw off the six bolts on the medium
frame;
10) Hold the both sides of the medium
frame and open it gently;
11) Turn up the medium frame by about
90°;
12) Offload the medium frame once hearing
the crack sound;
