AUX air conditioner service manual
Section three electric wiring diagram of AUX air conditioner

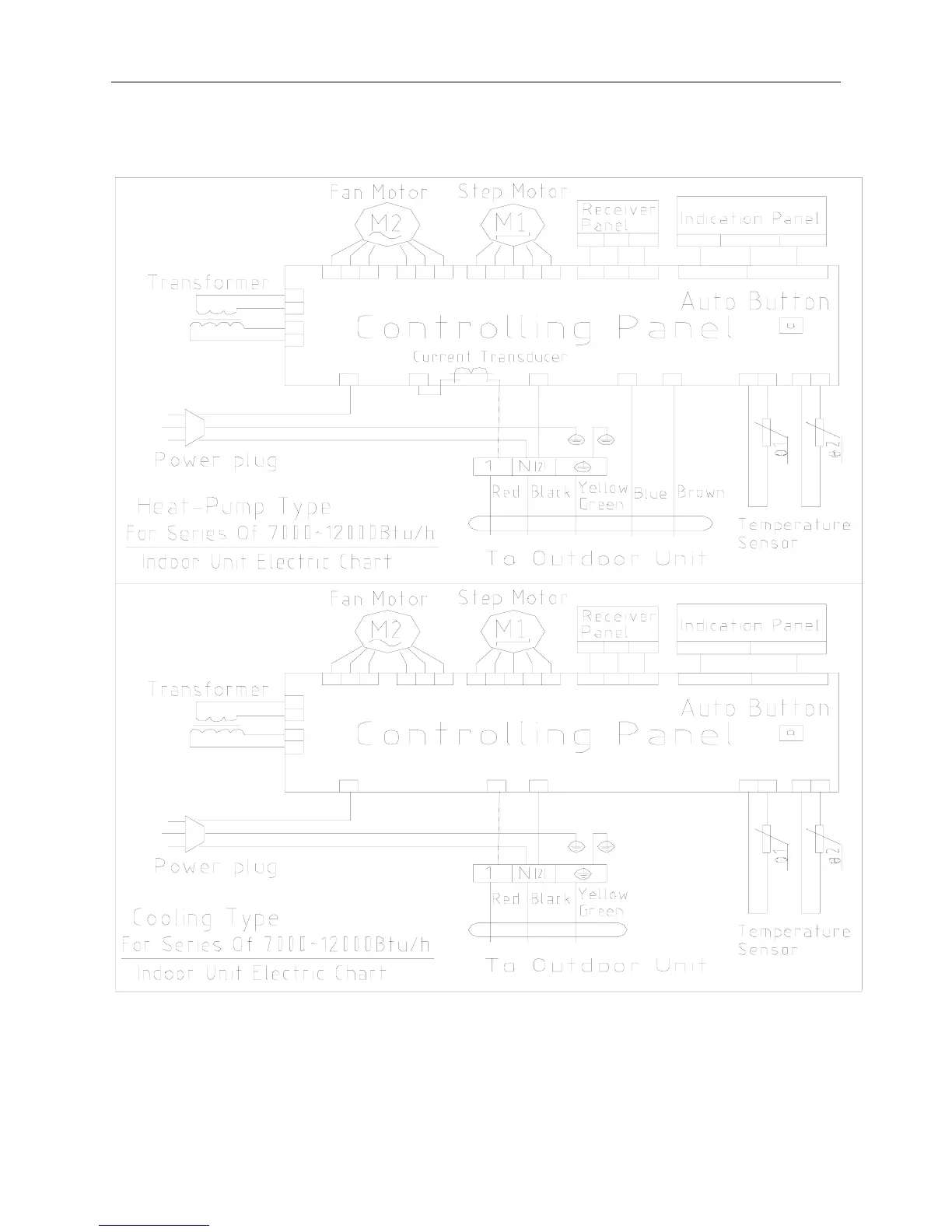

1.7000~12000BTU Electric wiring diagram：
⑴ Indoor unit：
