Web UI

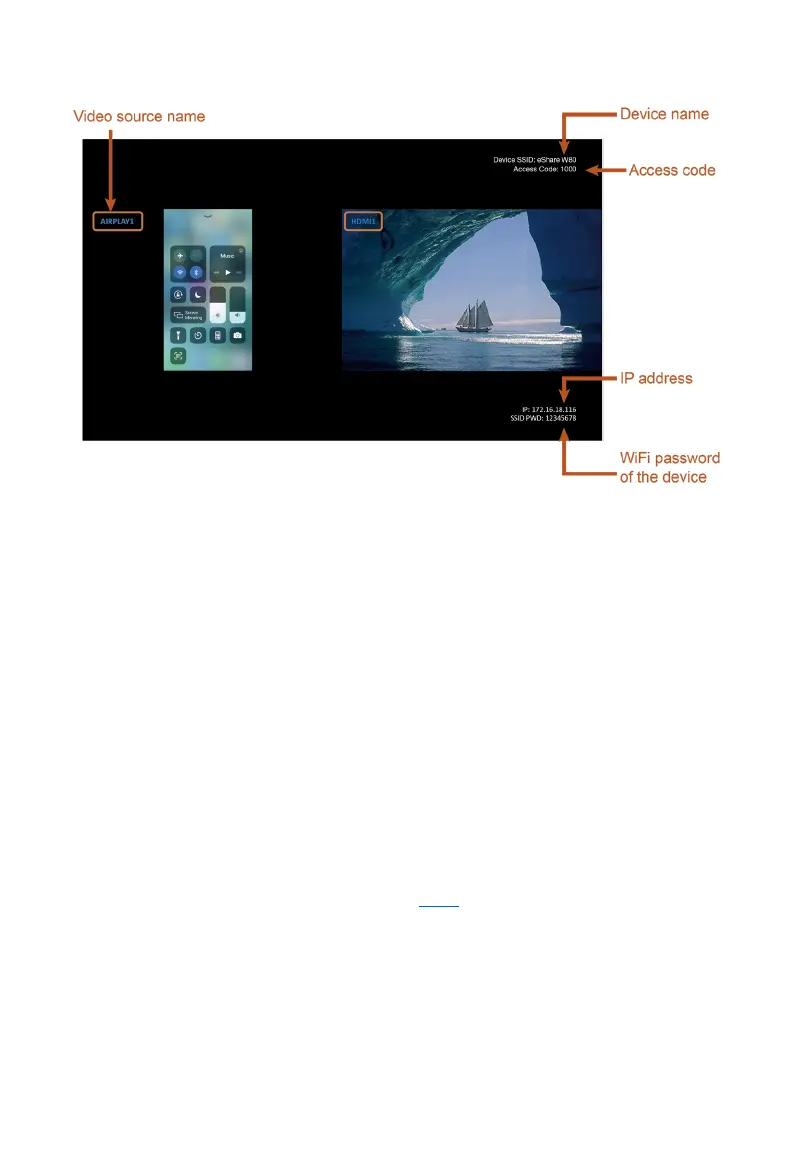

Example 2 – Displays in dual view
Figure 3 -- OSD Example 2
Web UI
The Web UI designed for this device allows for basic controls and
advanced settings. It can be accessed through a modern browser, e.g.
Chrome, Safari, Firefox, IE10+, etc.
To get access the Web UI:
1. Connect the LAN port of the device to a local area network.
Ensure there’s a DHCP server in the network so that the device
can obtain a valid IP address.
2. Connect a PC to the same network as the device.
3. Input the device’s IP address in the browser and press Enter, the
following window pops up. (See OSD section to easily view the IP
address.)
To Next Page
