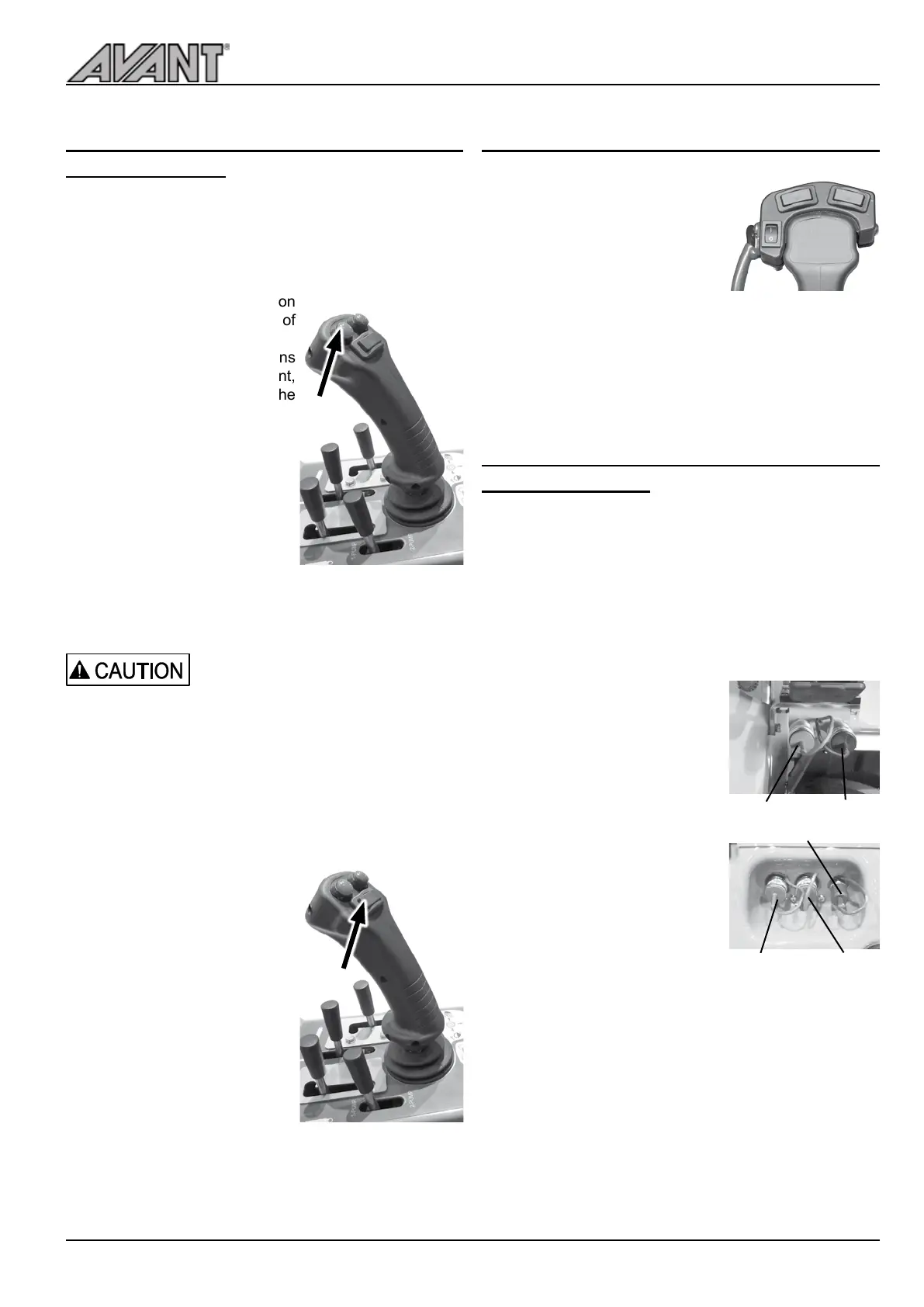

600 Series Operating instructions
Joystick with auxiliary hydraulics control
buttons (option)
The loader can be equipped, as an option with the 8
function joystick, where the operation of auxiliary hydraulics
is controlled by push buttons and telescopic boom with
rocker switch.
Auxiliary hydraulics
Push and hold either button
to operate hydraulic feature of
the attachment.
• The operation of the buttons
depends on the attachment,
see Operator’s Manual of the
attachment.
• Release buttons to stop.
• Make sure the manual
control lever is not locked
when operating the electric
joystick.
• When using the electric
switches, the manual
controllever will also move.
Eitherway can be used to
control the attachment as
needed.
Avoid abrupt movements of an
attachment - Use electric buttons
with caution.
When you use certain attachments
with the electric joystick buttons,
the attachments can move abruptly.
This can cause falling of material
from the attachment, loss of
stability, or damage to attachment.
Telescopic boom
With the rocker switch
the telescopic boom can
be operated steplessly
(extension- retraction). Speed
of the telescoping function
depends on the position of the
pump selection lever.
Attachment control switch pack (option)
• Optional extra with which
electric functions of the
attachment are controlled
• Optional extra with which
electric functions of the
attachment are controlled
• Consists of socket that mounts
on the boom. The electric harness of the attachment is
connected to this socket, and the electric features are
controlled with switches mounted on the boom control
lever.
• Read the operator’s manual of the attachment to see
how the switches are used with each attachment.
Extra auxiliary hydraulics outlets, front
and rear (option)
In addition to the standard auxiliary hydraulics outlet, the
loader can be equipped with a double acting extra outlet.
The extra hydraulic outlet can be tted either to the front of
the loader or to the rear, and the couplers are conventional
type quick couplers.
The loader can be equipped with either the rear hydraulics
outlet or with the extra front outlet – but not with both.
1. Extra auxiliary hydraulics
in the front
• Quick couplers are located
under the multi connector
2. Quick couplers in the rear
• Quick couplers are located on
top of the radiator.
If the extra auxiliary hydraulic
outlets is installed to the rear of
the loader, the outlet is double
acting type.
To use the extra auxiliary
hydraulic outlet:
The installed extra outlet is
controlled with its own lever. See
page 25 for more information.
pressure 1
pressure 2
pressure 1
pressure 2
tank line
