600 Series
Maintenance and service

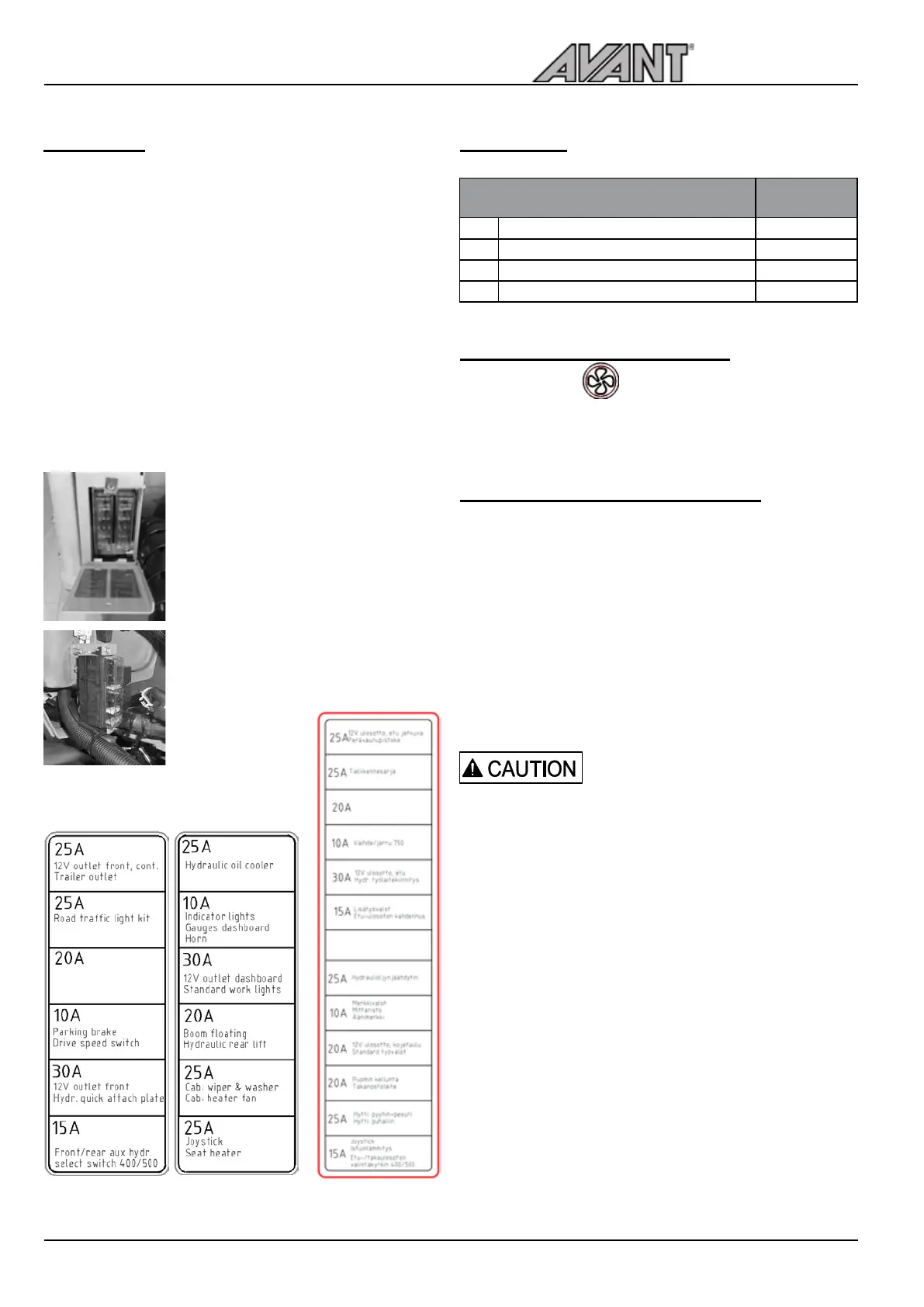

Main fuses
In the event of electric malfunction, always check the
fuses rst. If fuse is blown repeatedly, search for cause of
burning fuse. Electric cables may be damaged. Contact
Avant service, if necessary.
Main fuse box L and ROPS
located outside the cab, on the right side of the loader
boom.
On loaders equipped with ROPS canopy or cab L, lift the
boom rst for easier access to the main fuses, if possible.
Remember to use the service support. If the boom cannot
be lifted, the fuses can be checked after removing the
right side cover plate.
On loaders equipped with cab LX and DLX under a metal
cover below the windscreen.
Main fuse box cab LX and DLX
The main fuse box on loaders with cab
LX/DLX is located outside the cab, on
the right side below the windscreen
under a metal cover.
On cab DLX with A/C additional fuses
are located in the fuse box near the
throttle lever, accessible by removing
the right side cover panel outside the
cab.
Light bulbs
Hydraulic oil cooler fan fuse
The red indicator on the dashboard indicates blown
hydraulic oil cooler fan fuse. If the indicator is lit, check
the 25A fuse of the oil cooler fan. Contact Avant service if
necessary.
Jump start and auxiliary power
The engine can be started with auxiliary power if necessary,
by using appropriate (strong enough) jump start cables.
1. Connect rst one end of the positive cable to thepositive
(+) post of the dead battery.
2. Connect the other end of the positive jumper cableto the
positive (+) post of the charged battery.
3. Connect one end of the negative jumper cable tothe
negative (-) post of the charged battery.
4. Connect the other end of the negative jumpercable to
a solid, non-paint coated metal part of theengine of the
dead loader, as far from the deadbattery as possible.
Read Operator’s manual of the
vehicle that is giving auxiliary power,
in order to make sure that the vehicle
is suited for that. The vehicle can
get damaged when giving auxiliary
starting power.
Never bypass battery or connect
cables directly to starter motor.
Engine may get damaged.
ROPS canopy or
cab L
Cab LX and DLX
Light bulb Part no.
Lamp type
1. Front light 1000 lumen 66266
2. Work light 700 lumen (option) 66068
3. Work light 2500 lumen (option) A419163
4. LX/DLX Headlamps H4
