AVANT CH100 - Page 32

32
CH100

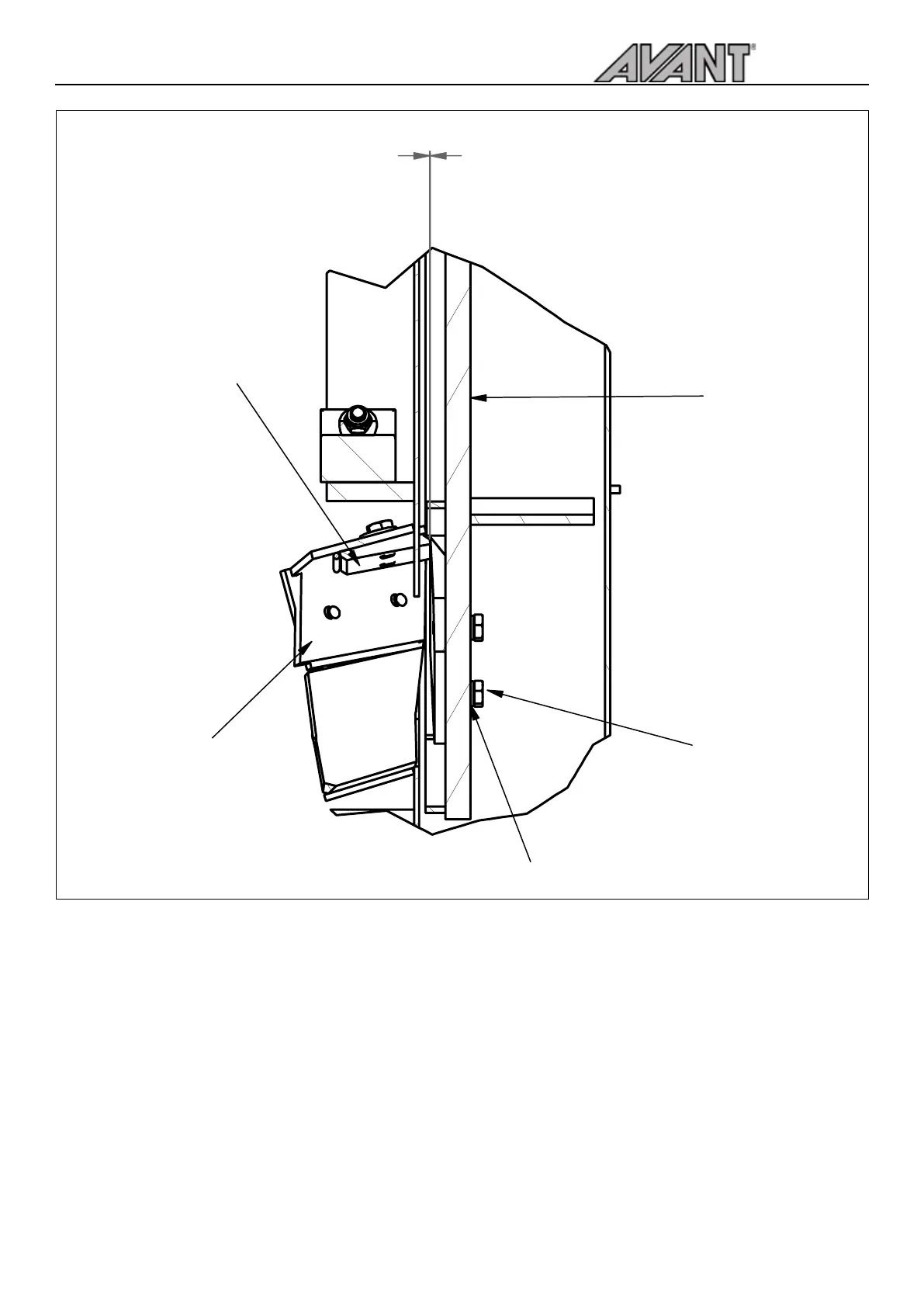

Fig 18. Cross-section of the disk and knives / anvils
knife-to-anvil clearance 1,5-2,0 mm
disc
vertical anvil
horizontal anvil
Observe
the correct
position!
Nord-lock M12 lock washer 2 pcs
screw
M12x30 DIN933 10.9
