BCM50 System Start Up
NN40010-318 Issue 1.2 BCM50 Rls 6.0 11
PC Configuration

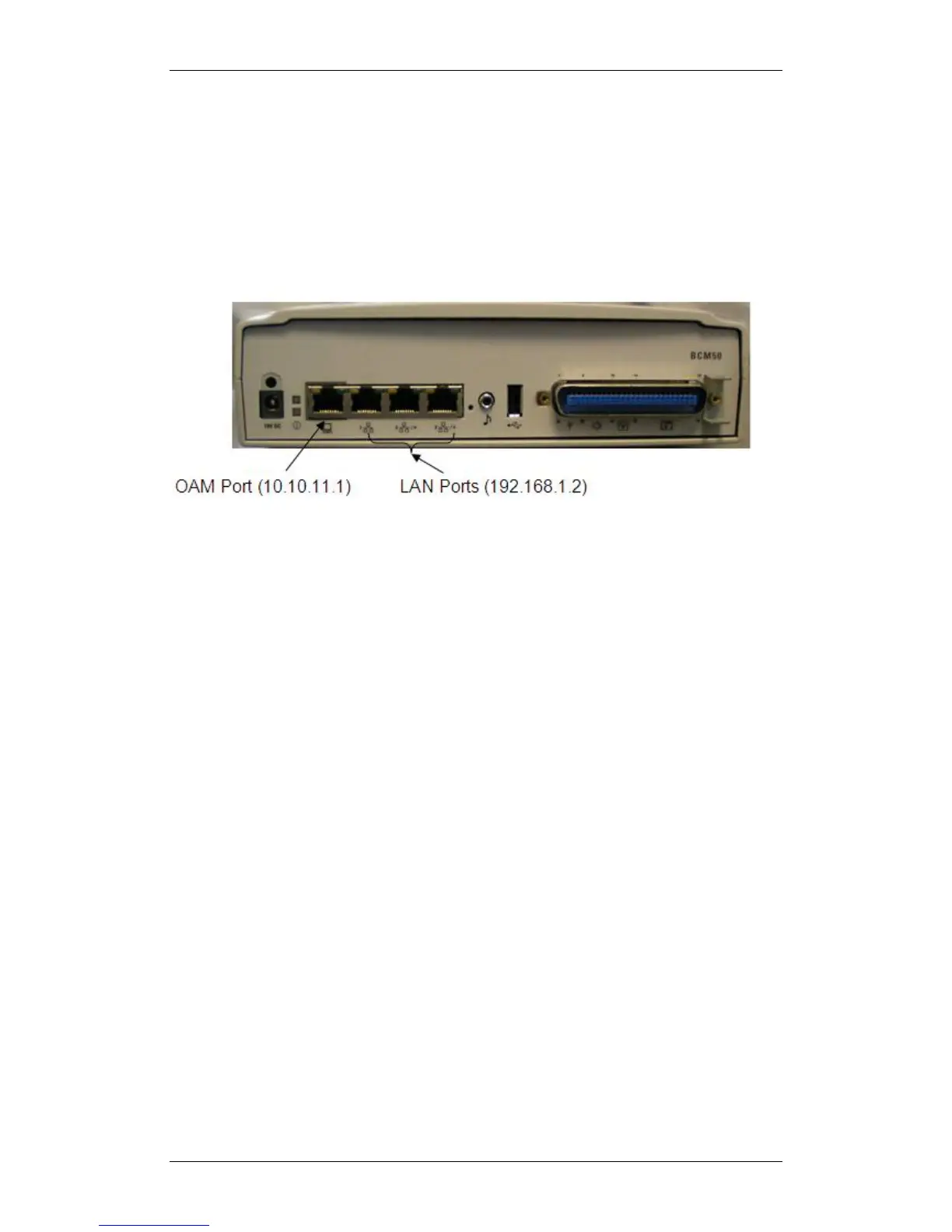

The BCM50 has a dedicated OAM port. It is recommended that you perform
any maintenance/configuration from this port. There are also:
1 x dedicated LAN Port on BCM50, & 5 x dedicated LAN Ports on
BCM50e
2 x dual function ports that act as expansion ports for Media Bay
Modules, and also LAN ports
A PC/laptop can be configured to connect to the BCM OAM in two ways:
Set your PC/laptop to obtain an IP Address automatically (preferred ,
as DHCP is always operating on the OAM port)
Manually set your PC/laptop’s IP Address (IP Address: 10.10.11.2,
Subnet Mask: 255.255.255.252)
(Note that the OAM port default settings are IP Address: 10.10.11.1,
Subnet Mask: 255.255.255.252)
The default setting for the LAN Ports is:
IP Address: 192.168.1.2
Subnet Mask: 255.255.255.0
For information concerning configuring the network settings of your PC, refer
to the Networking Essentials Guide.
