Wireless Fixed Base
Issue 6 September 2001
3-21

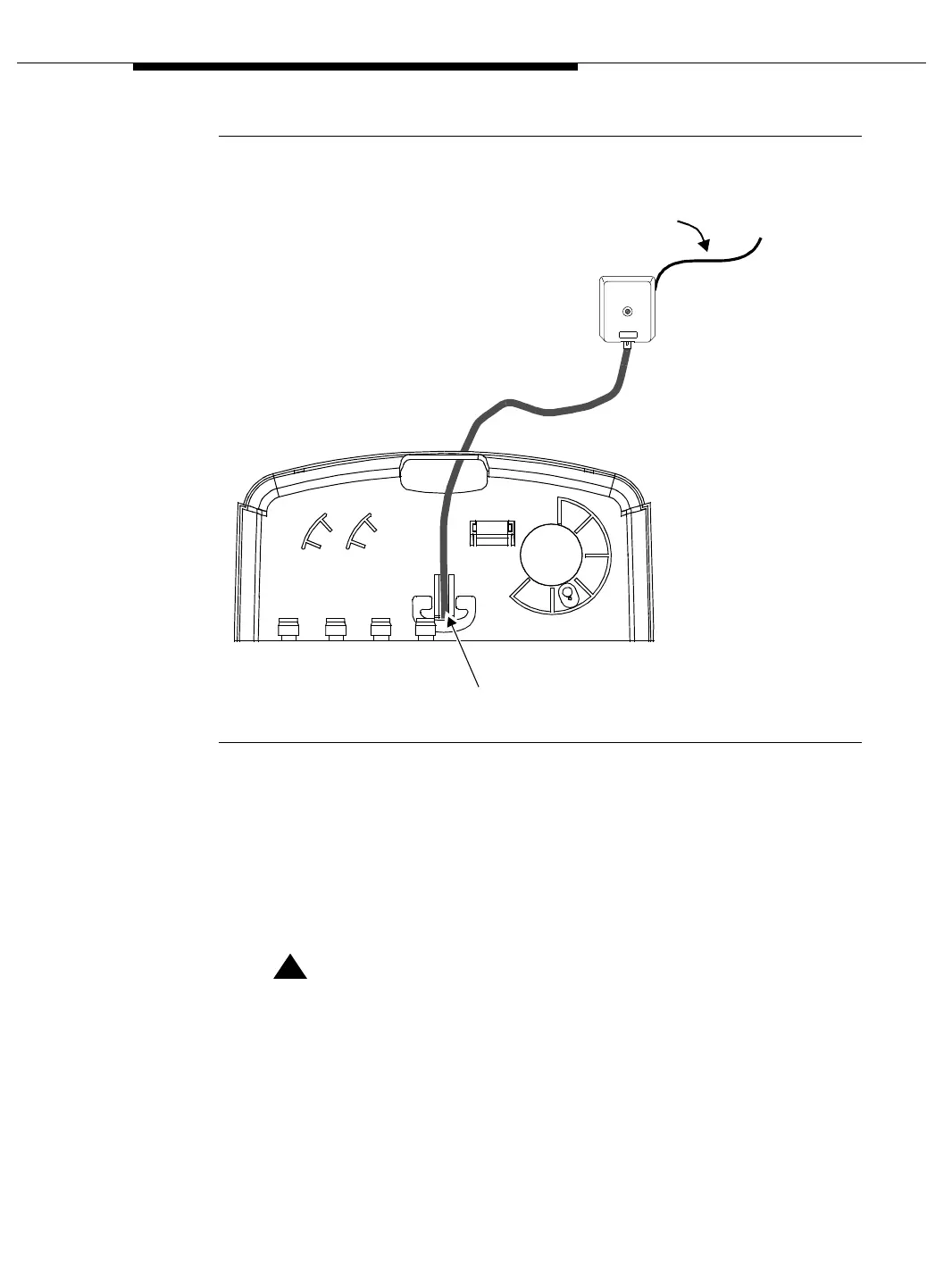

Figure 3-8. Communication and Power WFB Connection
10. If the WFB does not support an external CAU, return the cover to the WFB
to complete the installation. If the WFB supports any external CAUs,
proceed to the next step.
11. Attach the fixed-length coax cables to the specified connector. Route the
cable inside the WFB as shown in the next figure. Slide the cover back on.
Make the connector finger-tight only. (Using tools damages the WFB.)
!
WARNING:
These cables must be threaded through a small area. It is important
to handle the cables with as much care as possible to avoid damage.
Also, do not cut the coaxial cable once it is connected to an
active WFB. This could short and subsequently damage WFB
ports.
RJ45 Connector
D8W Cable
103
Category 3
4-Pair Twisted
Inside Wire
Block
Connecting
To Next Page
