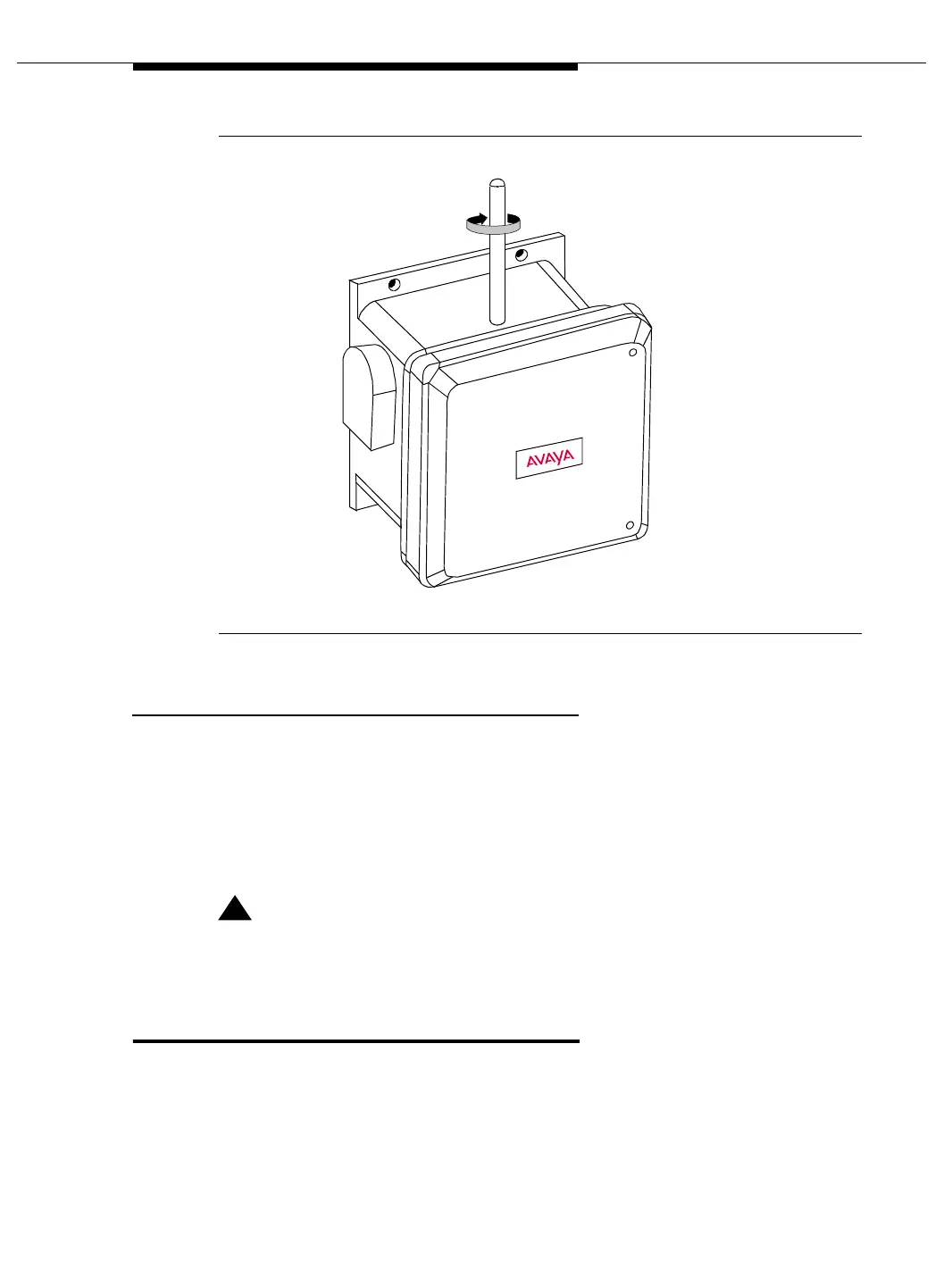

Figure 3-23. Tightening the Antenna for the 559C Outdoor CAU
Fixed-Length Coax Interface
This interface is physically implemented with a 110 foot long, custom coaxial cable
assembly (comcode 847565132) that interconnects the WFB and CAU. This
interface provides both RF signaling and DC power to and from the CAU.
Fixed-length coaxial cable is plenum-rated and can therefore be placed inside the
plenum above the ceiling.
!
CAUTION:
DO NOT cut or modify this cable to length. Any excess cable should be
spooled up in the ceiling or where convenient.
DWBS WTs
Two DWBS WTs are available. These WTs are discussed in the following
sections.
