Hardware Installation
3-32 Issue 6 September 2001

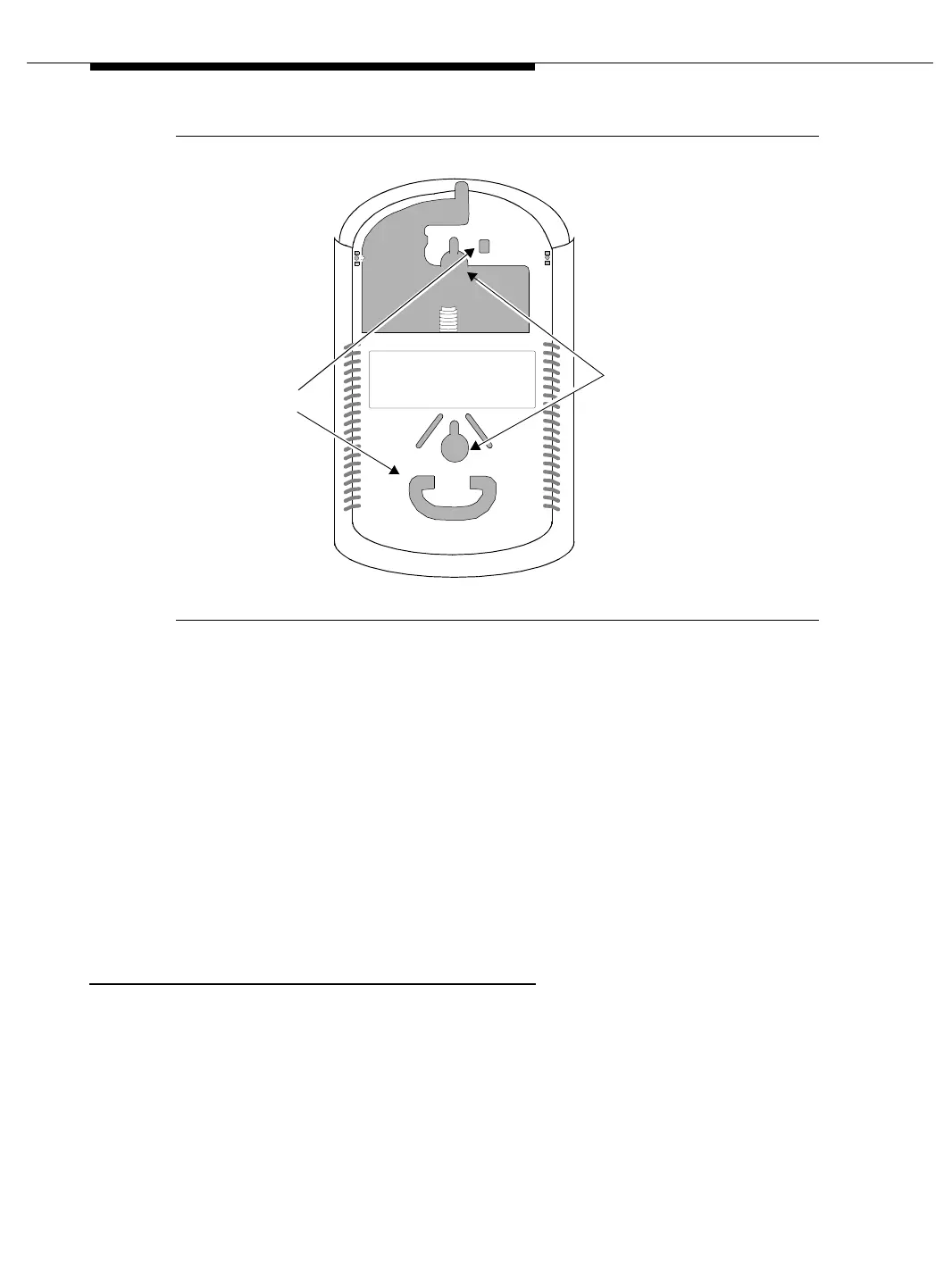

Figure 3-12. Mounting Tabs and Slots on the CAU
Wrap the tie wrap around the tabs and the object to which it will be affixed,
and tighten.
4. Unpack the CAU and obtain a standard telephone mounting plate and
screws.
5. Using a screwdriver, attach the mounting plate at the location designated in
the installation map.
6. Connect (twist) the fixed-length coaxial cable originating from the
appropriate WFB. Make the connector finger-tight only. (Using tools
damages the CAU.)
7. Slide the CAU onto the mounting plate as illustrated in the previous figure.
Procedure: Installing 559D Dipole CAUs
The following sections discuss how to install the 559D DCAU and its components.
Wall
Mounting
Slots
Tie Wrap
Mounting
Tabs
