Fastening the Antenna for the
559D Dipole CAU
Fasten the antenna for the 559D Dipole CAU to the CAU as follows:
1. Place the threaded end of the antenna onto the connector on the lower
third of the CAU.
2. Rotate the antenna clockwise until the antenna is finger-tight.
The following figures illustrate the preceding procedure.

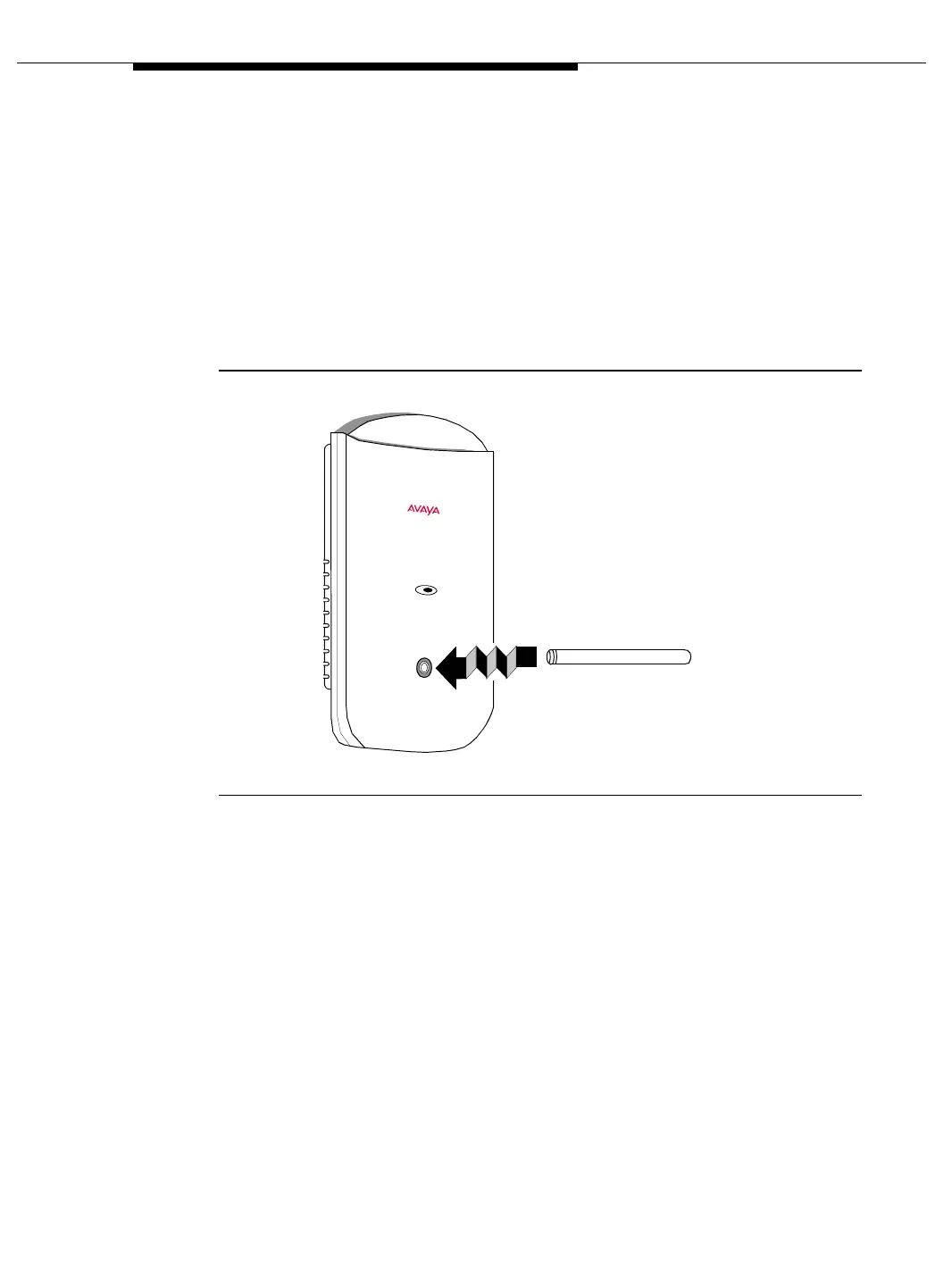

Figure 3-13. Inserting the Antenna for the 559D Dipole CAU
(Insert)
