Definity - Page 89

Procedure: WT Firmware Download and Connection
Issue 6 September 2001
4-9

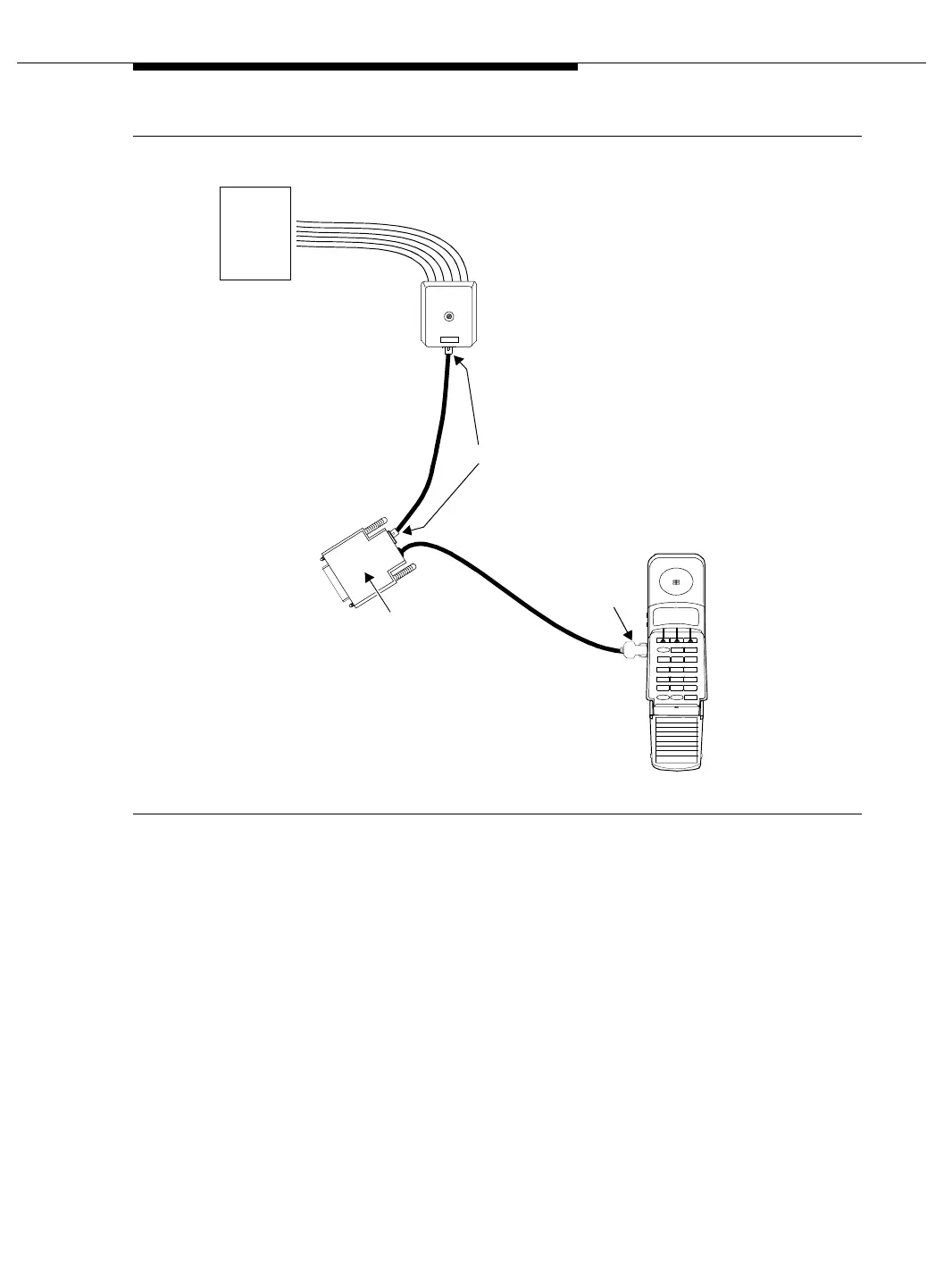

Figure 4-6. Connections for WT Firmware Download (9601 WT)
D8W Cord
103 Connector Block
Data
6-Foot Wireless Terminal
Data
Connector
Download Cable
At the
Wall Field
Modular Connectors
Connector
Wireless
Ter mi nal
RC
Circuit
Pack
