Procedure
1.
Attach a front bracket to each guide bracket with four M2 x 3-millimeter-long flat-head
machine screws.

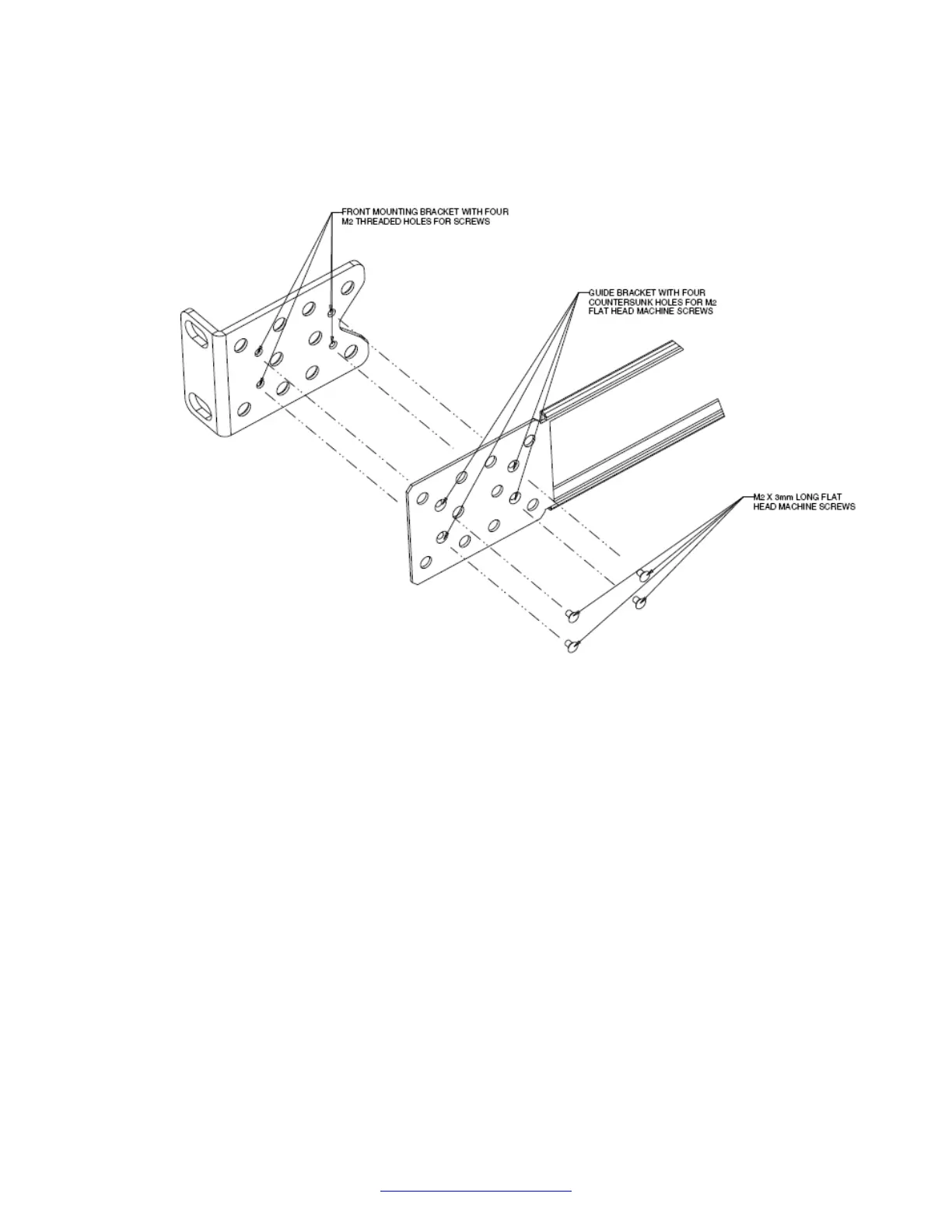

Figure 10: Attach front brackets to guide brackets
2.
Attach the guide brackets to the switch chassis.
Installing optional four-post rack-mount brackets
August 2014
Installing Avaya VSP 7000 Series
31
