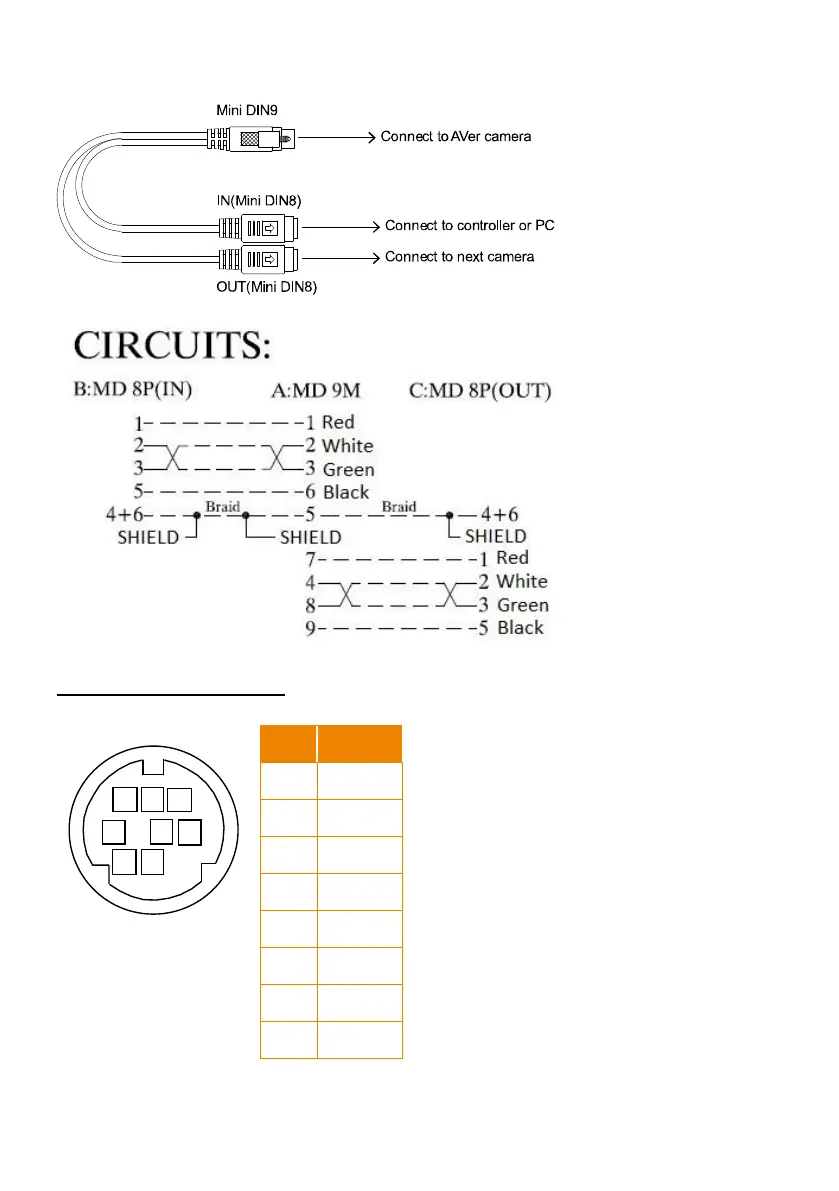

RS-232 mini DIN9 to mini DIN8 Cable Pin Definition
Mini DIN8 Cable Pin Definition
12
34
5
6
7
8
No.
Signal
1
DTR
2
DSR
3
TXD
4
GND
5
RXD
6
GND
7
NC
8
NC
