14

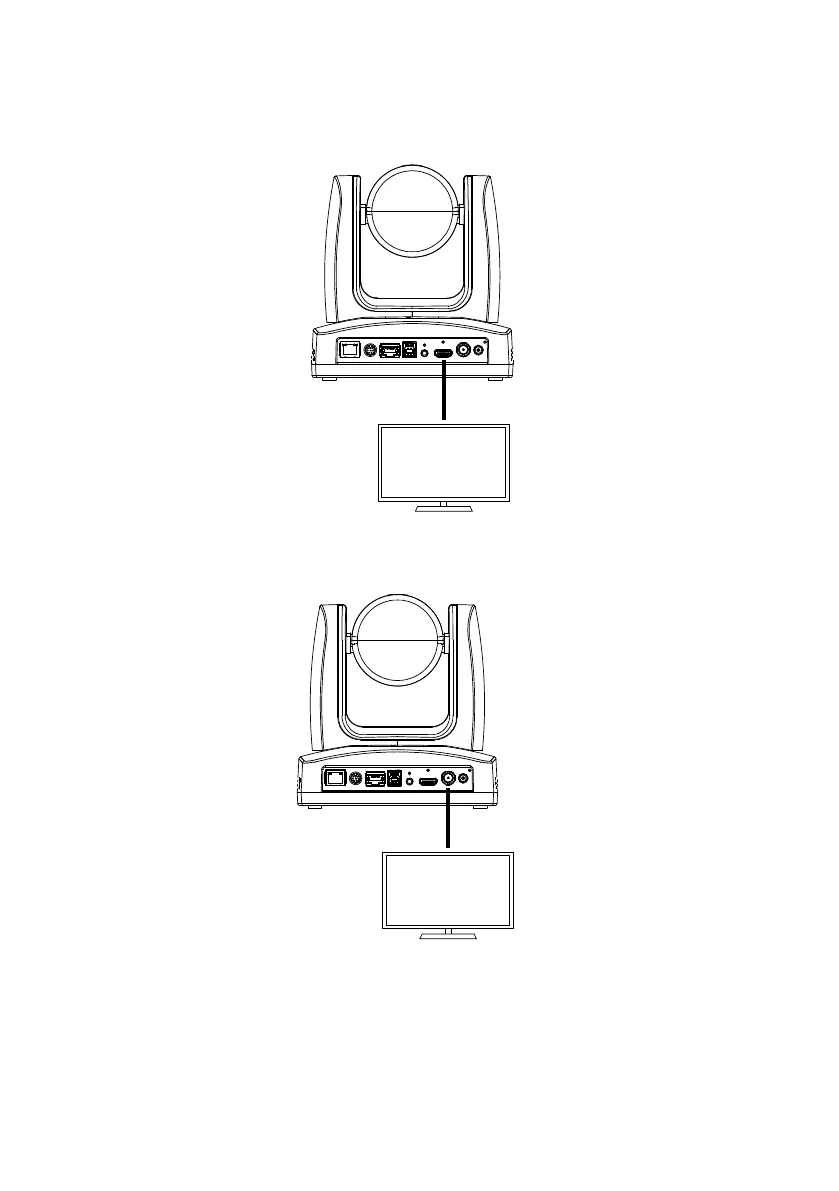

Video Output Connection
HDMI
Use the HDMI cable to connect with monitor or TV for video output.
3G-SDI
Connect to 3G-SDI monitor for video output.
[Notes]
HDMI and 3G-SDI monitors can be connected to camera and output live video simultaneously;
Assuming HDMI monitor is well connected before the camera turned on, the OSD menu will be
displayed on HDMI monitor in default.
The model names with “H” do not have 3G-SDI.
SDI Monitor
3G-SDI Cable
(Not Included)
