Using the Stereo Mix Section
The stereo mix section is located in the main view of the Driver Control Panel and is divided into
four main sections:
• Hardware Inputs
• Software Returns
•Effects
•Master
Hardware Inputs
The Hardware Inputs section is where the
Mic/Line and Instrument inputs are monitored,
as well as the S/PDIF input of Mbox. Hardware
Inputs 1–2 are the analog inputs, and Hardware
Inputs 3–4 are the S/PDIF input L/R.
Software Returns
The Software Returns section is where the audio
coming back from Pro Tools (or other audio ap-
plication) is monitored. Software Returns 1 and
2 is the default stereo output from Pro Tools.

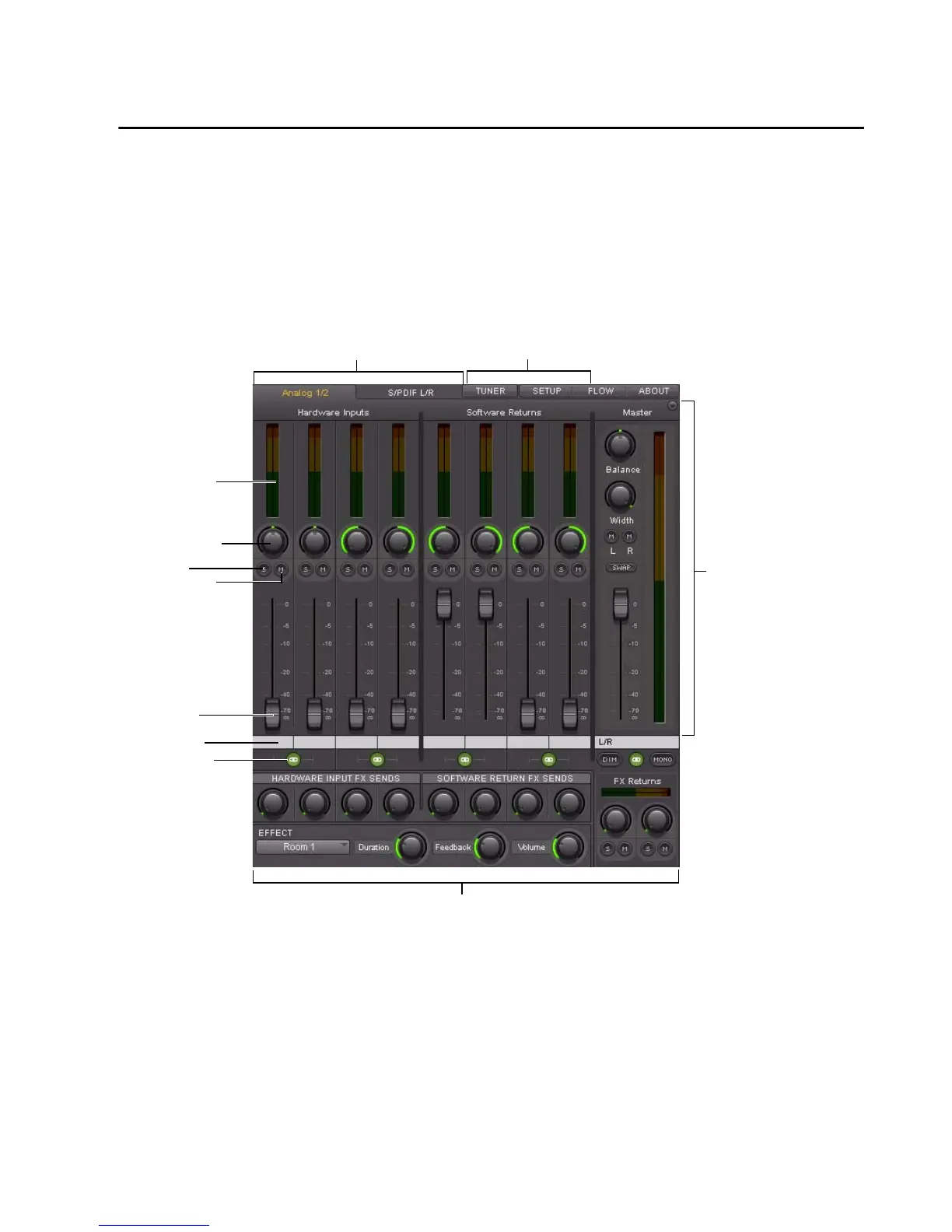

Signal Meter
Solo
Channel Fader
Channel Label
Pan
Mute
Link
Master
Hardware Inputs
Software Returns
Effects
