chapter 4
Making Studio Connections
This chapter provides step-by-step instructions
for connecting mics, instruments, mixers,
headphones, speakers, and other devices to
Mbox .
Connecting Outputs
To hear audio from Mbox, you need to connect
headphones or an external sound system (such
as powered monitors or a home stereo) to Mbox.
Connecting Headphones
You can use headphones equipped with a 1/4-
inch stereo jack to monitor your audio.
The Headphone Output mirrors Monitor Out-
put channels 1–2.
To connect headphones:
1 Connect headphones with a 1/4-inch stereo
connector (or adapter) to the Headphone jack.
2 Adjust the volume using the Headphone Vol-
ume knob on the front panel.
The headphone outputs mirror the signal sent
to the Monitor Outputs.

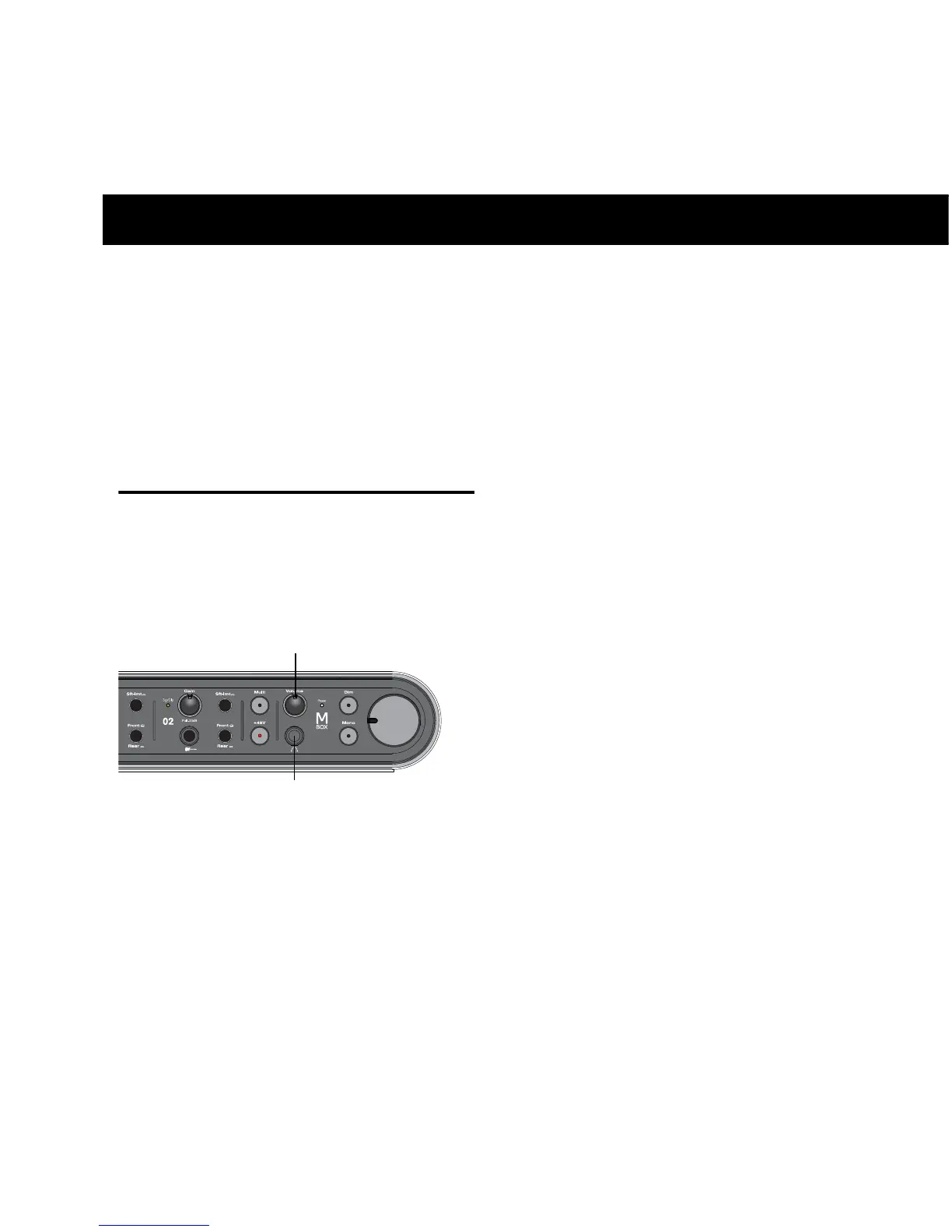

Headphone jack on front of Mbox
