Chapter 3: DADman Software
13
AD Section
The AD section controls any Mic/Line AD and Line AD cards in the MTRX. If there are no AD cards in the MTRX, the AD section for
that MTRX is empty.
The sliders for MIC gain can be adjusted with the mouse, the mouse scroll wheel, or with the Up and Down Arrows on your computer
keyboard. Note that using the mouse adjusts the gain by 0.1 dB increments, but the Up and Down Arrow keys adjusts the gain by 1.0 dB
increments.
DA Section
The DA section controls any DA cards in the MTRX. If there are no DA cards in the MTRX, the DA section for that MTRX is empty.

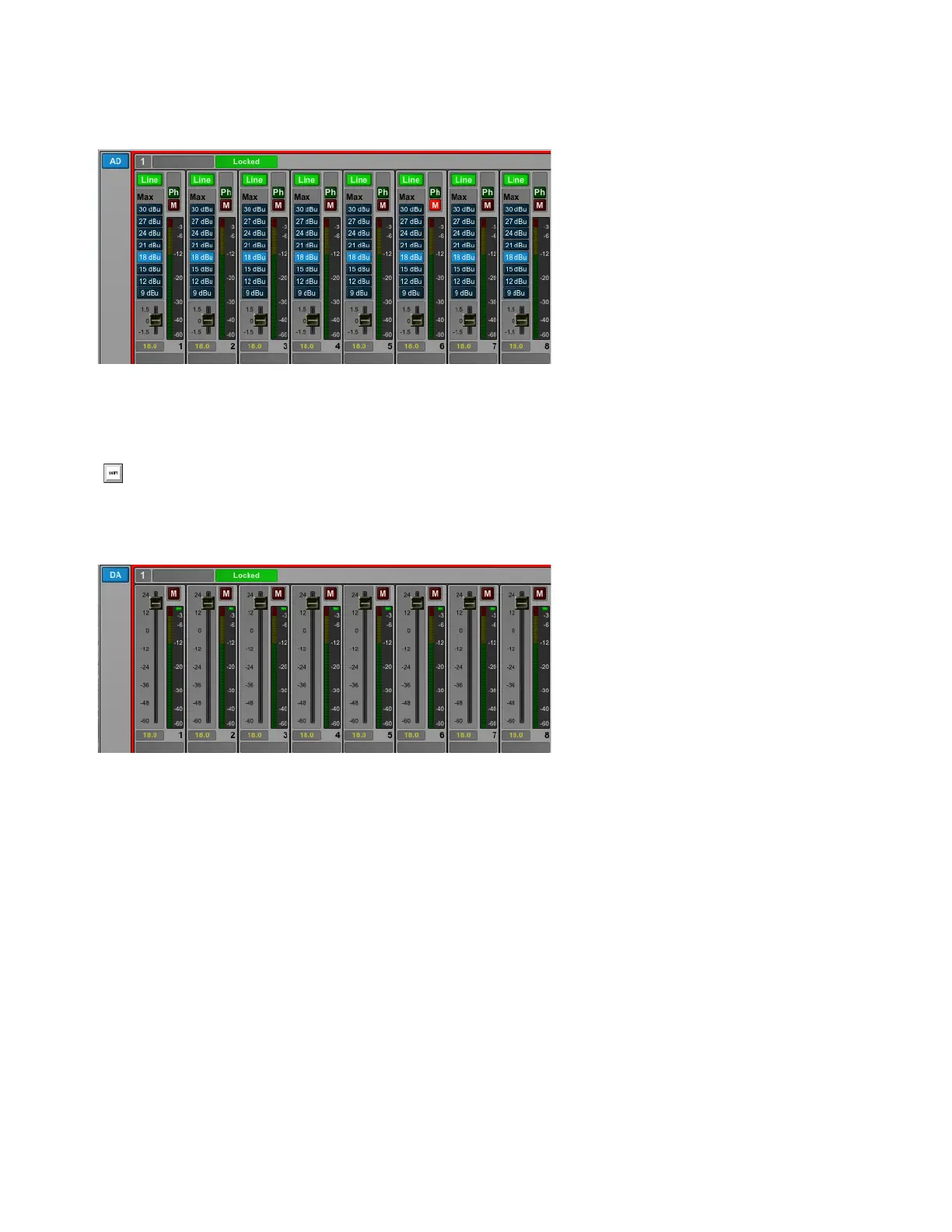

AD section
Command-click (Mac) or Control-click (Windows) any fader to set it to 0.
DA section
