Chapter 5: Pro Tools | MTRX Back Panel Connections 22
Chapter 5: Pro Tools | MTRX Back Panel Connections
1 Analog and digital I/O expansion cards are installed into slots along the back of the unit in card slots 1–8 (right to left). All eight
slots can be used. Up to six analog cards can be installed simultaneously. Digital I/O expansion cards can be installed in any
available slot.
2 Mini-module slot for either an optional MTRX Dual MADI I/O module or Dante module.
3 Power switch.
4 Main power supply.
5 AES/EBU I/O channels 1–4. 25-pin female D-sub connector with Tascam pin-out.
6 AES/EBU I/O channels 5–8 25-pin female D-sub connector with Tascam pin-out.
7 MADI I/O BNC connectors.
8 Primary DigiLink Mini port for Pro Tools | HDX or HD Native.
9 Primary or Expansion DigiLink Mini port for Pro Tools | HDX or HD Native, or another I/O.
10 Word Clock synchronization output, BNC connector.
11 Word Clock or Video Black Burst synchronization input (configurable), BNC connector.
12 AES11/AES3 synchronization input, female XLR connector.
13 Ethernet control and IP audio Primary port (net 1) RJ45 connector. Control port in redundant IP audio mode.
14 Ethernet control and IP audio Secondary port (net 2) RJ45 connector.
15 Reconfigure button and Status LED.

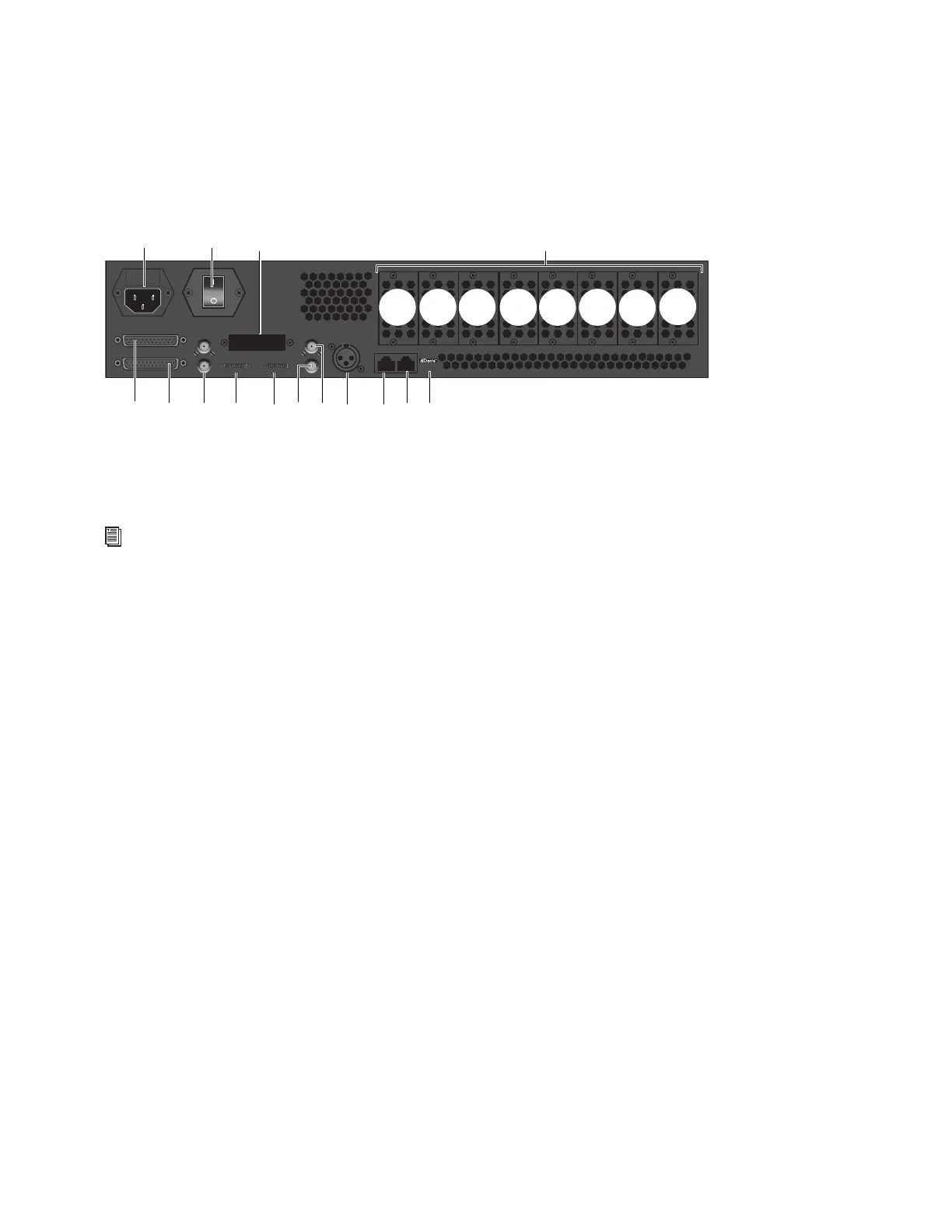

Pro Tools | MTRX back panel
For information on installing expansion cards, see the Pro Tools | MTRX Installation Guide.
