C - INSTALLATION
5.2 - Opening outwards

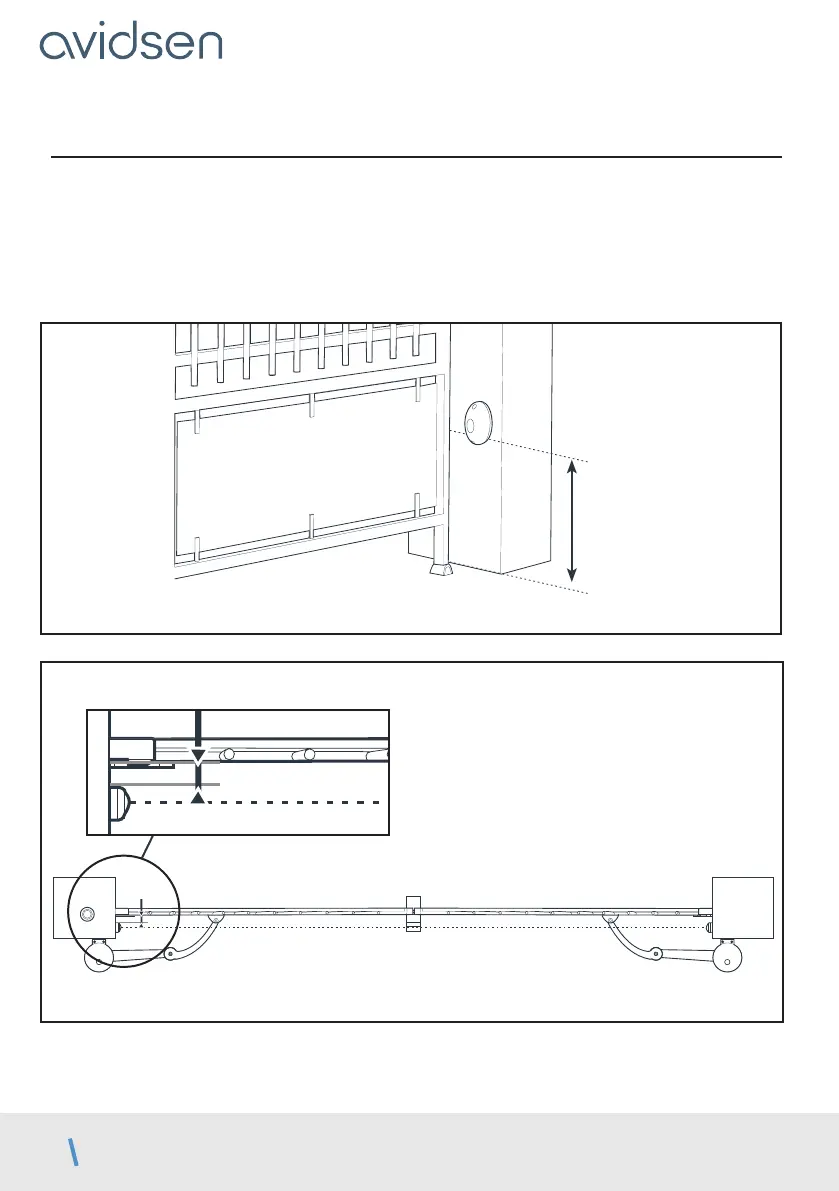

1 set of photocells
• Install the reception photocell (RX indicated on the back) on the motor post containing the electronic card.
The surface of the posts must be perfectly flat in order to properly align the infrared beam of the photocells.
• Place the photocells at exactly the same height from the ground; they must be perfectly aligned and
parallel to each other.
• Mount the photocells on the posts.
Inner side of the property
30cm min
60cm max
View from above
Inner side of the property
Perfect alignment
10cm min
15cm max
