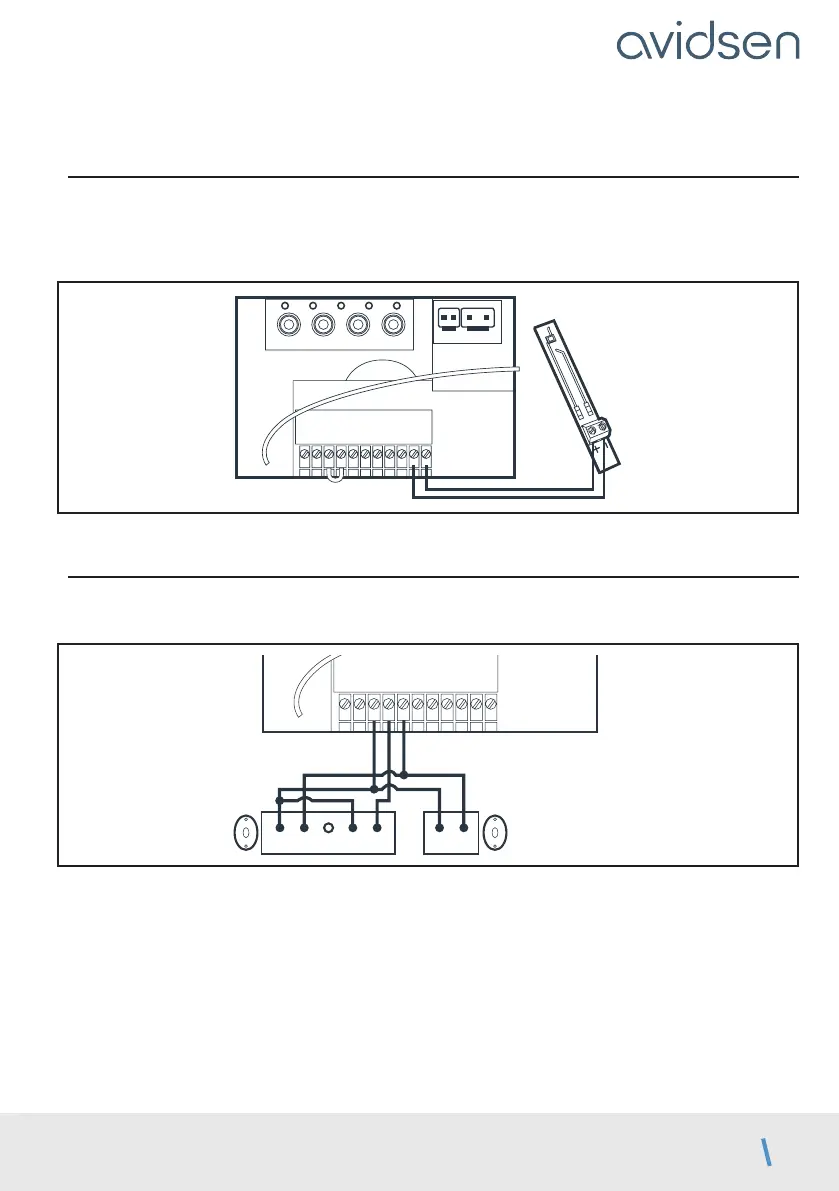

6.3 - Flashing light
• Connect the flashing light wires to the terminal block as shown in the diagram below and reconnect the
terminal block.
• Use a 2x0.5mm² section cable, at least.
• Maintain the connection polarity
L0
PROG
OK
+
-
L1 L2 L3 L4
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
6.4 - Photocells
• If there are no photocells, leave the connector between GND and PHO.
• With one set of photocells, remove the connector between GND and PHO.
photocell RX1 photocell TX1
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
~- ~+ ~+~-NO COMNC
C - INSTALLATION
