After having checked that the gate to be motorised complies with the requirements given in this chapter and
before beginning the installation, a hazard analysis of the installation must be conducted in order to eliminate
all dangerous situations or to indicate them if they cannot be eliminated.
2. ELIMINATION OF HAZARDS
The hazards posed by a two-panel motorised gate, as well as the adapted solutions to eliminate those
hazards, are as follows:
2.1. Subpanels

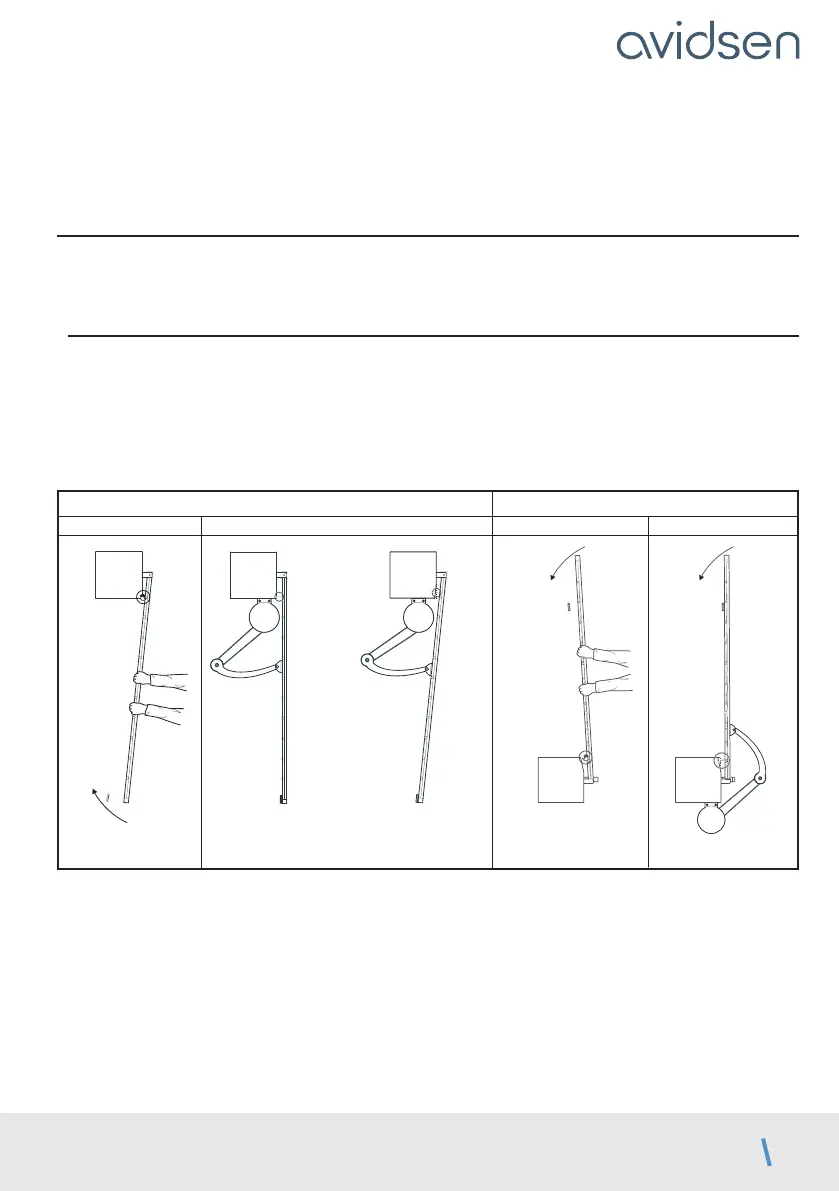

Following installation, there may be a shear zone between the panel and the corner of the post.
In this case, it is recommended to remove this zone leaving a minimum working distance of 25mm either
by positioning the side stops accordingly or by notching the corner of the posts without weakening them,
or both if necessary.
If this is not possible, the hazard must be clearly indicated.
For opening towards the outsideFor opening towards the inside
side
stop
side
stop
side
stop
side
stop
side
stop
shear zone
shear zone
25mm
min
25mm
min
25mm
min
post post post
view from above view from above view from above view from above
Solution SolutionHazard Hazard
OR
post post
