6.6 - Backup battery (optional)
It is possible to connect a backup battery to perform some manoeuvres in the event of power failure.
• Type of battery: NiMH
• Battery voltage: 24V
• Configuration: 20xAAA / 800mAh

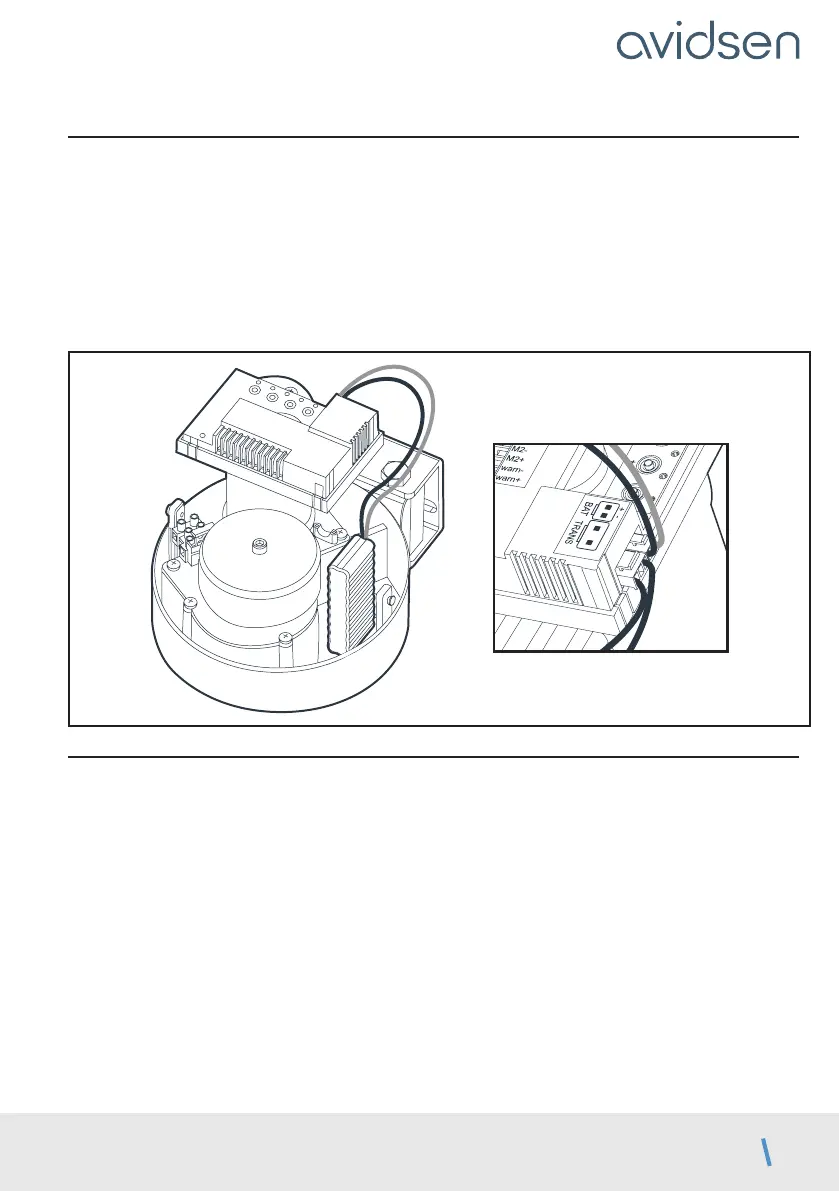

• Use the connection cable supplied in the kit to connect the battery. Cut unnecessary terminals and use an
insulating screw joint to connect the battery wires to this connecting cable.
• Observe the connection polarity (red on + and black on -)
• After connecting the battery, it will charge for up to 48H.
PROG
OK
L0
L1
L2
L3
L4
6.7 - Solar power kit (optional)
The 24V solar power kit is plugged into the same connector as the backup battery. The solar power kit
(which already has a battery) and a backup battery cannot be connected at the same time.
For installation, refer to the solar power kit instructions.
When a solar power kit is connected, if you press the “OK” button on the electronic card, the number of red
LEDs that light up indicates the battery charge level.
