General
14
F-FEM-CNT — Users Guide
2.2 System Environment
The figure below outlines schematically how F-FEMs are integrated with the
PUMA Open test bed system.

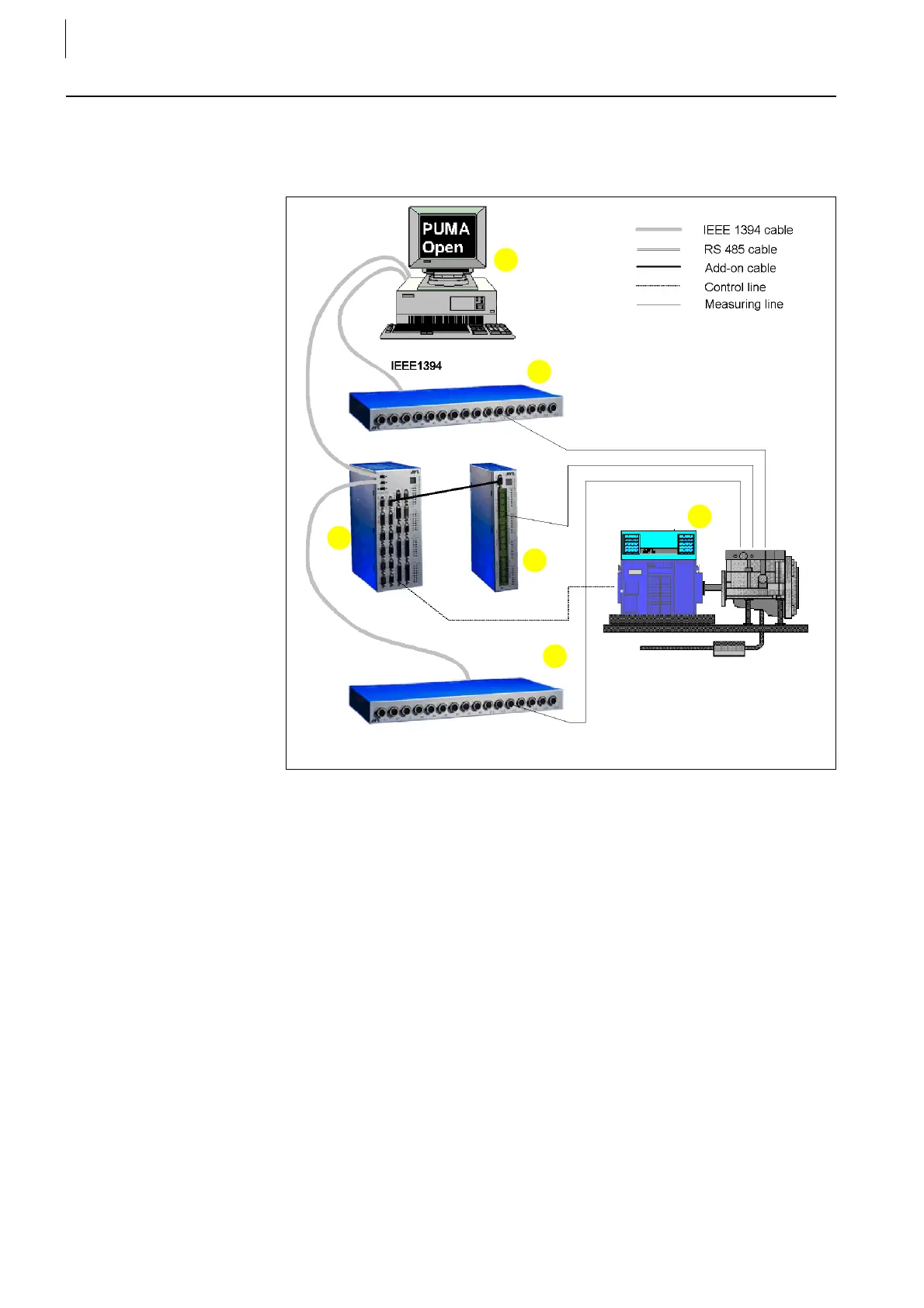

Fig. 2 Example of a system environment
1.....Test bed workstation (on which the PUMA Open system has been
installed)
2..... F-FEM-AIF connected to the PUMA Open system
3.....Engine test bed (engine, dyno)
4..... F-FEM-AIN or F-FEM-AIS (electrically isolated), connected to the PUMA
Open system via F-FEM-CON
5..... F-FEM-DIO, connected to the PUMA Open system via F-FEM-CON
6.....F-FEM-CON directly connected to the PUMA Open system
1
3
4
5
2
6
