AVL F-FEM-CNT User Manual

47
Operation
F-FEM-CNT — User’s Guide
4.4.3 Power Supply: X11
The 24 V power supply is connected at a 3-pin P-SUB socket. The connector at
the cable has terminal screws and can thus be connected without soldering.
Information
Please take care that the total current consumption on X11 is less than 2 A. This
can be calculated by adding the ruccents of all internal supplied loads (incl.
Add-On1 and 2) to the own consumption fo the module.

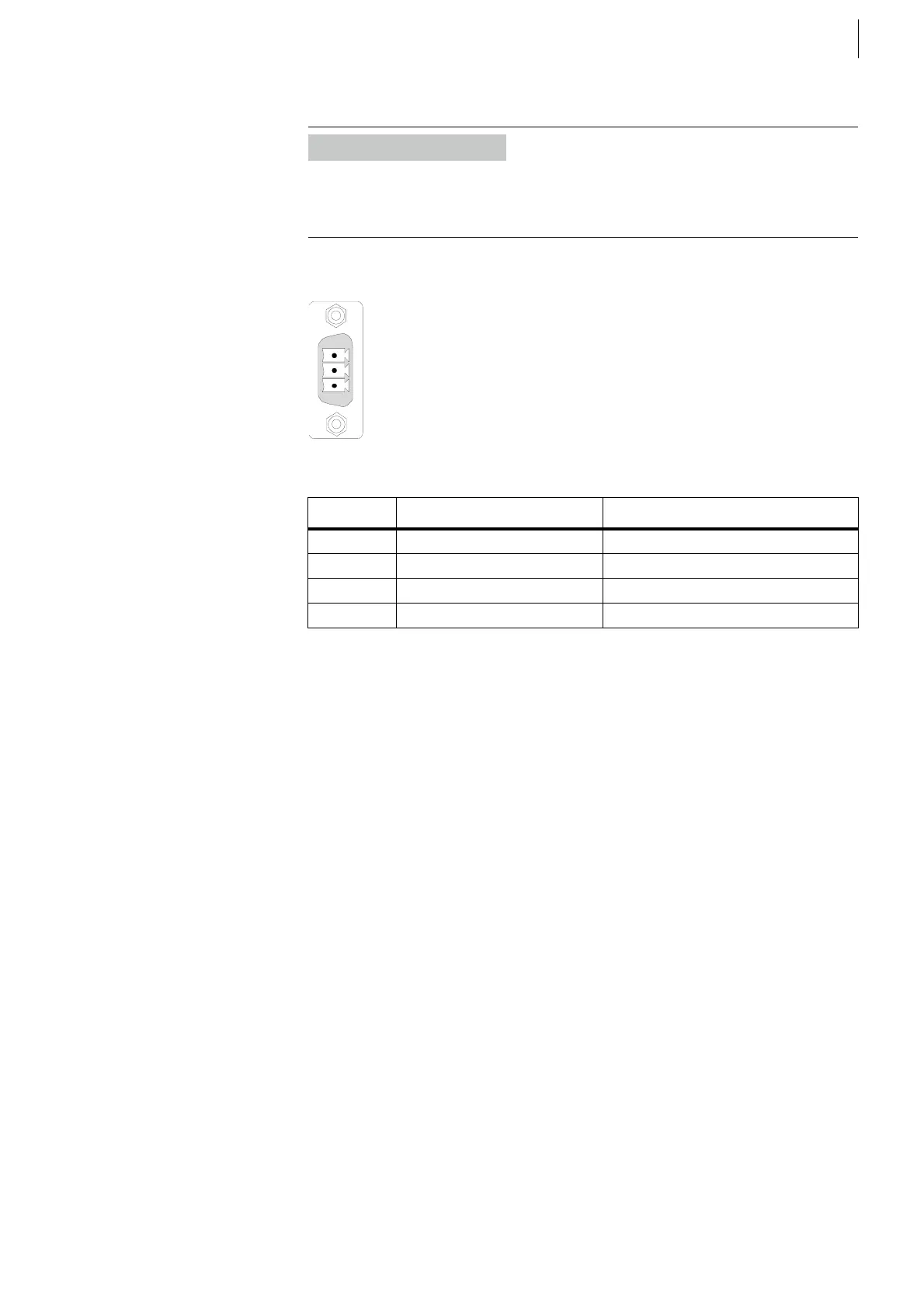

Fig. 30 Power supply: X11
Pin Signal Description
1 GND_24 Ground
2 PE Protective ground
3 + 24 V + power supply
Case Shielding Shielding
Tab. 8 Pin assignment
1

AVL F-FEM-CNT Specifications

General

Brand	AVL
Model	F-FEM-CNT
Category	Measuring Instruments
Language	English
