AVL F-FEM-CNT User Manual

Operation
34
F-FEM-CNT — User’s Guide
4.1.2 Input Circuit for Inductive Pick-up
The pin assignment above also applies to X18, X29 and X30.
4.1.3 Input Circuit for Incremental Rotary Encoder
The pin assignment above also applies to X18, X29 and X30.

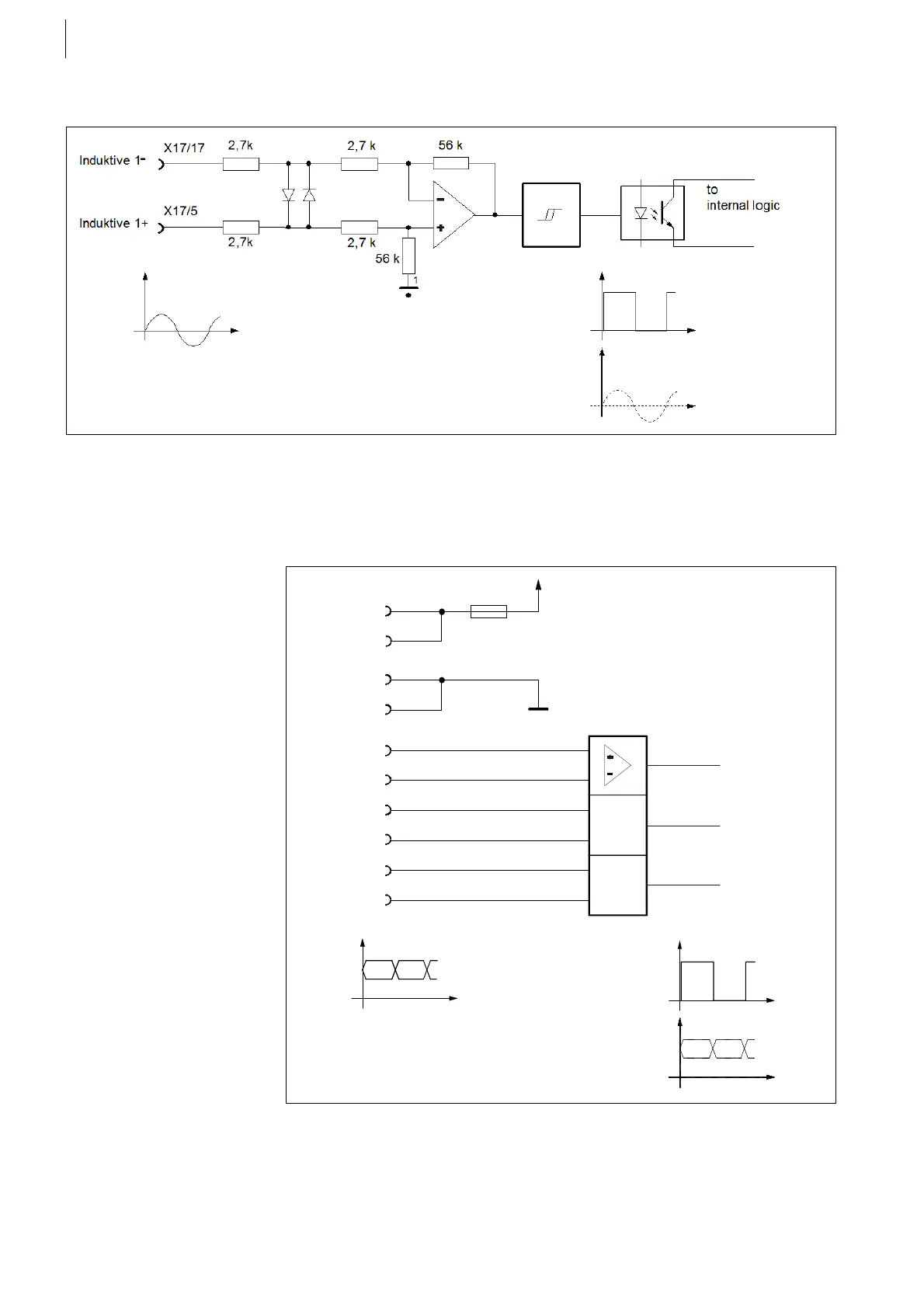

Fig. 19 Input circuit for inductive pick-up
Fig. 20 Input circuit for incremental rotary encoder
0.25 A
X17/7
to
Zero Track
to
Track A
X17/20
5 V
X17/10
X17/23
X17/6
X17/18
X17/8
X17/21
X17/9
X17/22
to
Track B
Inc0+
Inc0-
Inc1+
Inc1-
Inc2+
Inc2-
