AVM FRITZ!Box Fon WLAN User Manual

Connecting to the Analog Telephone Line
28 FRITZ!Box Fon WLAN 7170 – 2 FRITZ!Box Fon WLAN 7170: Connecting
Connecting
1. Connect the longer, gray end of the cable to the socket
labeled “DSL/TEL”, located at the far left of the back
panel of the FRITZ!Box Fon WLAN.
2. Insert the black end of the Y-branch of the cable into the
socket of your ISDN NT.
2.9 Connecting to the Analog Telephone Line
You only have to connect the FRITZ!Box Fon WLAN with the
analog line if you have an analog line and want to use the
FRITZ!Box Fon WLAN for analog fixed-line telephony.

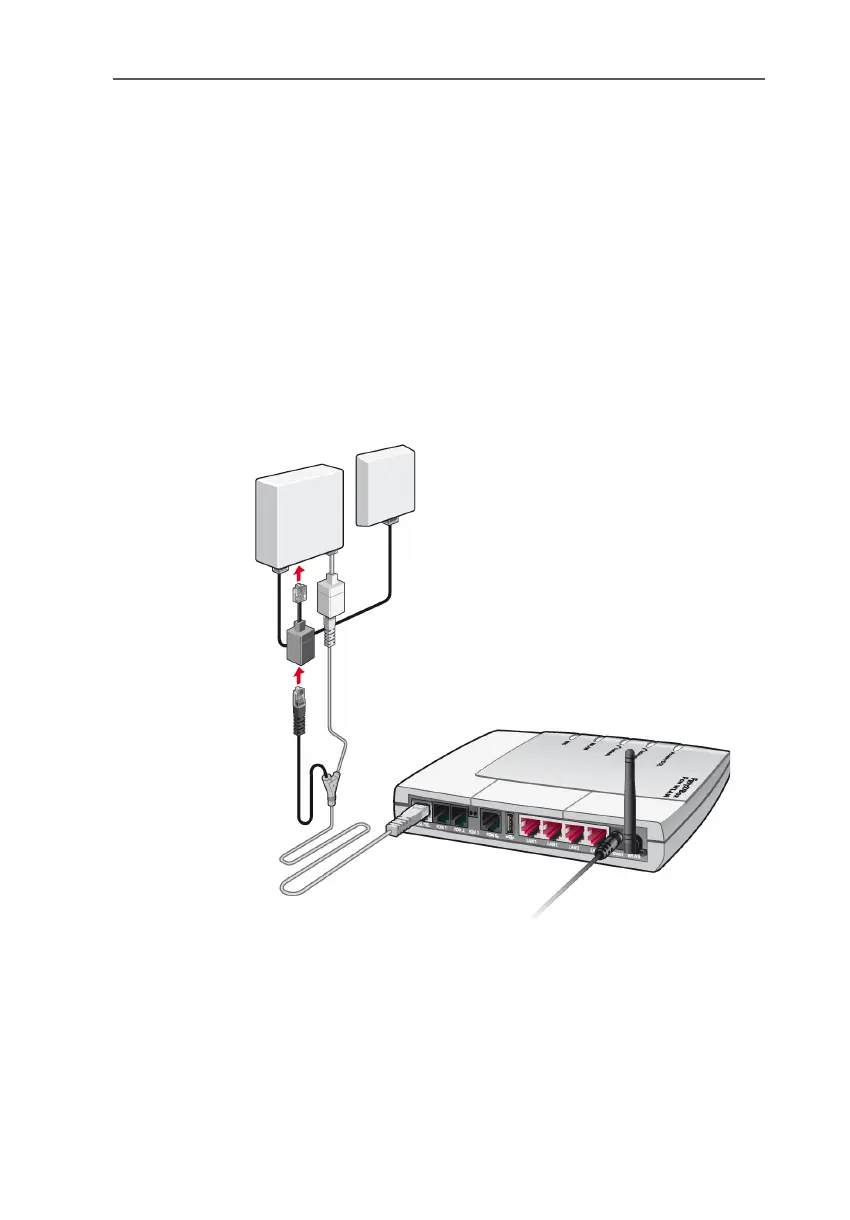

Connecting an analog telephone line to FRITZ!Box Fon WLAN
Cable
The gray and black Y-shaped cable is for connecting to the
analog line. This cable is a combination of a DSL cable and a
telephone cable.
