5
CHAPTER
2
Installation and Configuration
Hardware Overview

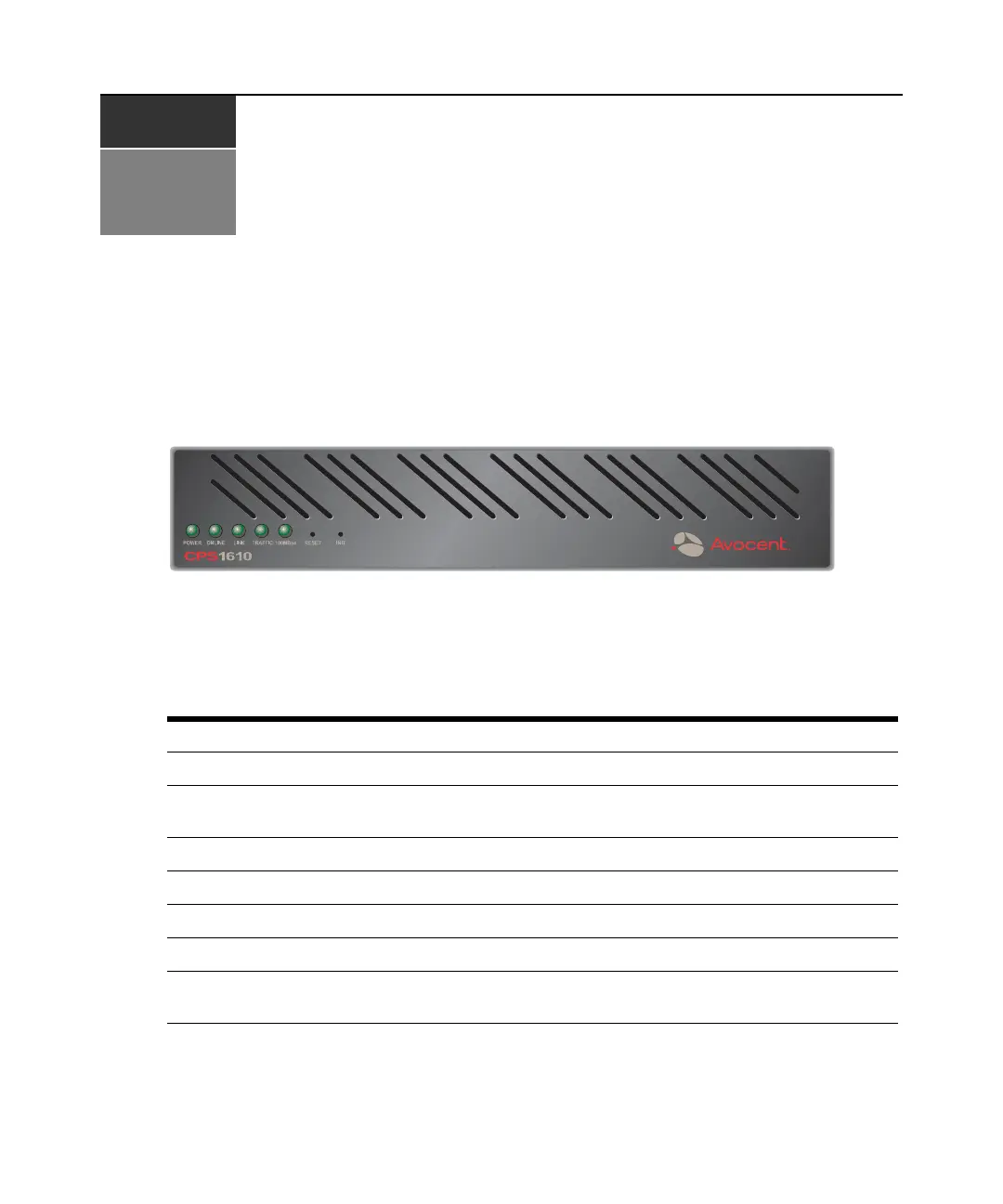

Figure 2.1 shows the front panel of a 16-port CPS network appliance.
Figure 2.1: 16-port CPS Appliance Front Panel
The lower left area of the front panel contains five LEDs and two buttons, which are described in
Table 2.1.
Table 2.1: LEDs and Buttons
LED/Button Description
POWER The POWER LED illuminates when the CPS appliance is connected to a power source.
ONLINE
The ONLINE LED illuminates steadily (not blinking) when the CPS self-test and initialization
procedures complete successfully.
LINK The LINK LED illuminates when the CPS appliance establishes a connection to the network.
TRAFFIC The TRAFFIC LED blinks when there is network traffic.
100MBps The 100MBps LED illuminates when the CPS appliance is connected to a 100 MBps LAN.
RESET The RESET button, when pressed, reboots the CPS appliance.
INIT
The INIT button, when pressed and held, restores the CPS appliance to factory defaults; for
more information, see Reinitializing the CPS Network Appliance on page 10.
