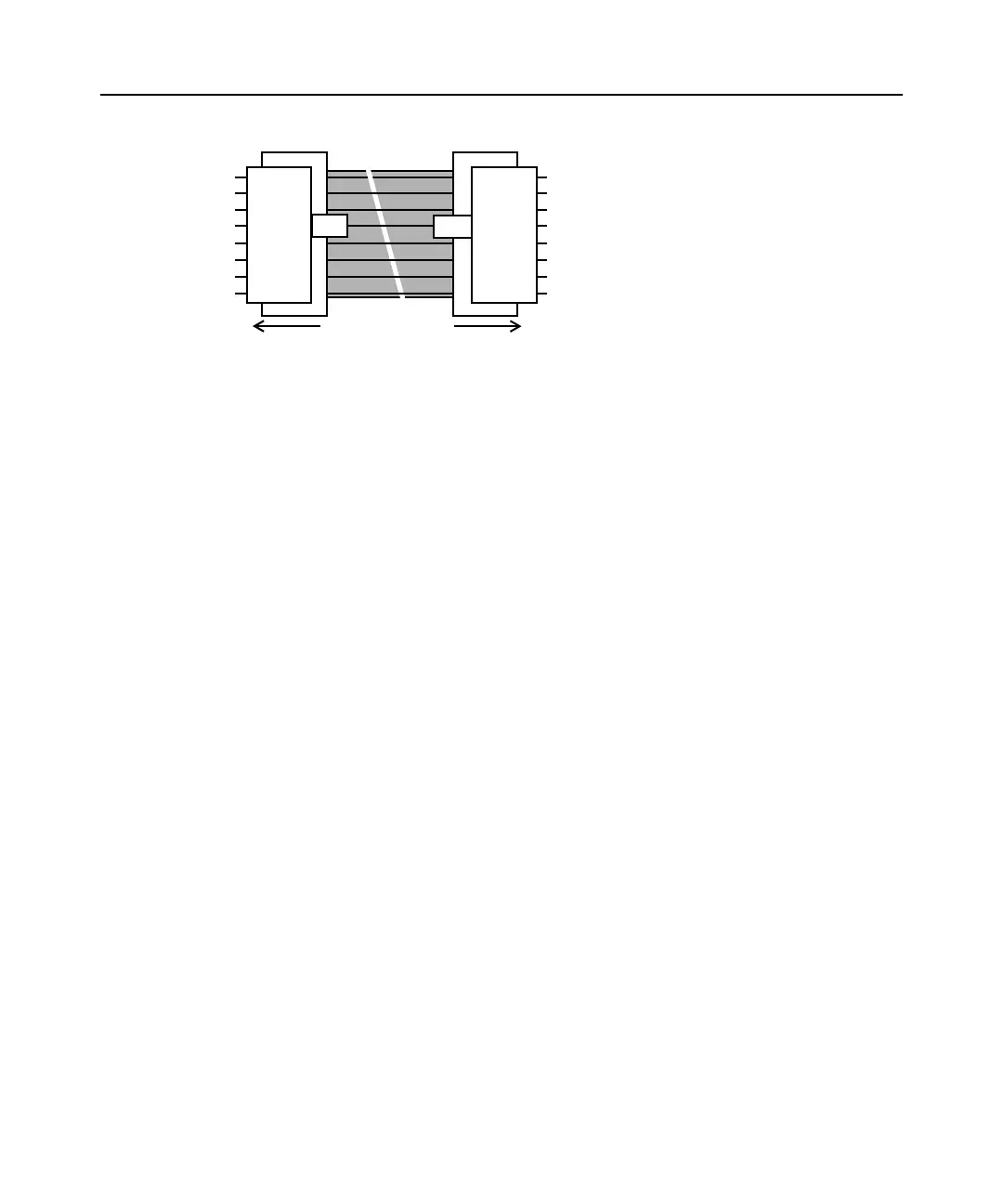

Figure B.3: 8-wire RJ-45 Reversing Cable
RTS
DSR
CD
RD
TD
GND
DTR
CTS
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
RTS
DSR
CD
RD
TD
GND
DTR
CTS
8-WIRE
CPS Port Modular Adaptor
