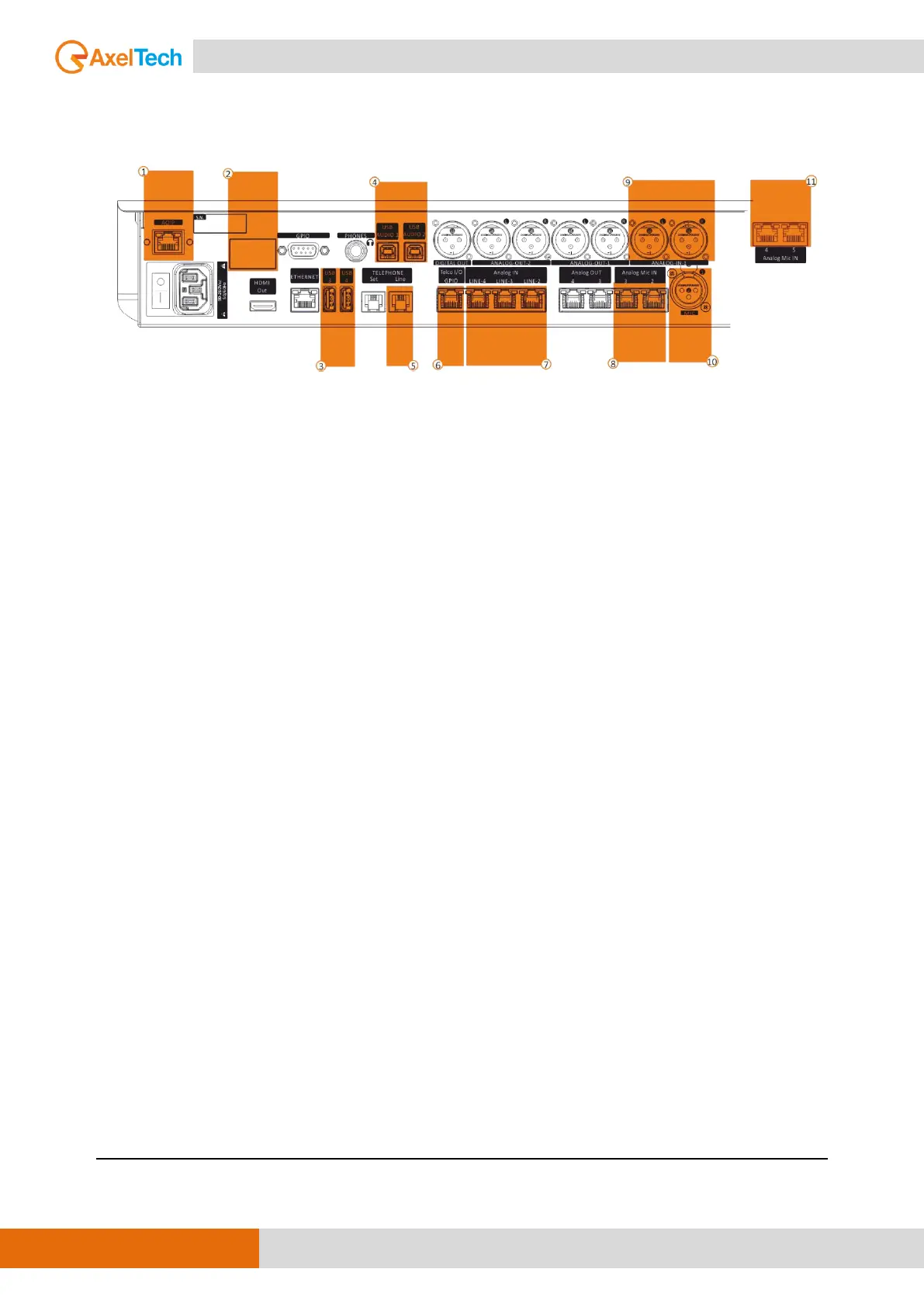

1.4 INPUT CONNECTIONS
AOIP – LAN DANTE* – RJ45 (CAT 6 cable).
8 Stereo digital audio inputs over Ethernet. These
inputs are optional. If DANTE board was not purchased
with the device these inputs are not enabled and do
not work. Instead of these inputs, USB AUDIO 1 and
USB AUDIO 2 inputs will be active.
The first DANTE-1 audio input over Ethernet could be
selected as 2 additional Telco Inputs: TELCO4 and
TELCO5.
Bluetooth
Bluetooth Stereo/Mono Input - Wireless –
Smartphone
USB 3, USB 4 ports Type A to Export and Import the
mixer configurations and to customize the station
LOGO
USB AUDIO 1, USB AUDIO 2
2 Audio Card Stereo Input- USB-Type B - PC
Connections. If DANTE board was purchased these
ports will not be present and will be automatically
disabled. Recording Sample Rate to be set on the PC
Control Panel is 44100 Hz
Telephone
Analog Telephone Line Input - RJ11 – for POTS/PSTN
interfacing.
Telco I/O GPIO – RJ45 (SFTP cable). The RJ45 cable
transports TELCO-Input and TELCO Output. Through
RJ45 is also carried 2 GPIO signals. 1 GPI to get the
incoming call signal by the flashing of the F1 button. 1
GPO to control the external hybrid device for hook and
drop purposes.
Pinout – in scheme
+188 – Oxy1000/Oxy2000-RJ45-Telco
ANALOG IN (LINE-2, LINE-3, LINE-4) – RJ45 (SPTF
Cable) for 3 Stereo analog audio inputs.
Pinout - in scheme
+189 - Oxy1000/Oxy2000-RJ45-LineIn
ANALOG MIC IN 2, ANALOG MIC IN 3 - RJ45 (SFTP
Cable) – cable for the Balanced Audio (Mic 2/3
Input) and for 2 GPI and for 1 GPO signals on each
connector.
These 2 ports are useful for 2 Talk Box interfacing.
Pinout - in scheme
+187 - Oxy1000/Oxy2000-RJ45-Mic
ANALOG-IN-1
1 Stereo Input / 2 Mono - XLR Female -
Balanced Audio Connection (10KΩ)
The ANALOG-IN-1 could be selected as: 2 Telco
Mono-Inputs: ANALOG-IN-1-L (Telco2) and ANALOG-
IN-1-R (Telco3)
MIC – XLR Female – Balanced Audio Connection
(1.2KΩ)
ANALOG MIC IN 4, ANALOG MIC IN 5** RJ45 (SFTP
Cable) – for Balanced Audio (Mic 4/5 Input) for 2 GPI
and for 1 GPO signals on each connector.
These 2 ports are useful for 2 Talk Box interfacing.
ANALOG-IN-1 (input scheme - point 9.) and GPIO
(communication scheme – point 1.) will be lost if
these option should be requested.
Pinout - in scheme
+187 - Oxy1000/Oxy2000-RJ45-Mic
* Optional on both OXYGEN 1000 and OXYGEN 2000.
** Optional only on OXYGEN 2000
