AxelTech OXYGEN1000 - Talkbox Connections

OXYGEN 1000 & OXYGEN 2000 · User Manual · ENG
25
GENERAL DESCRIPTION |TALKBOX CONNECTIONS

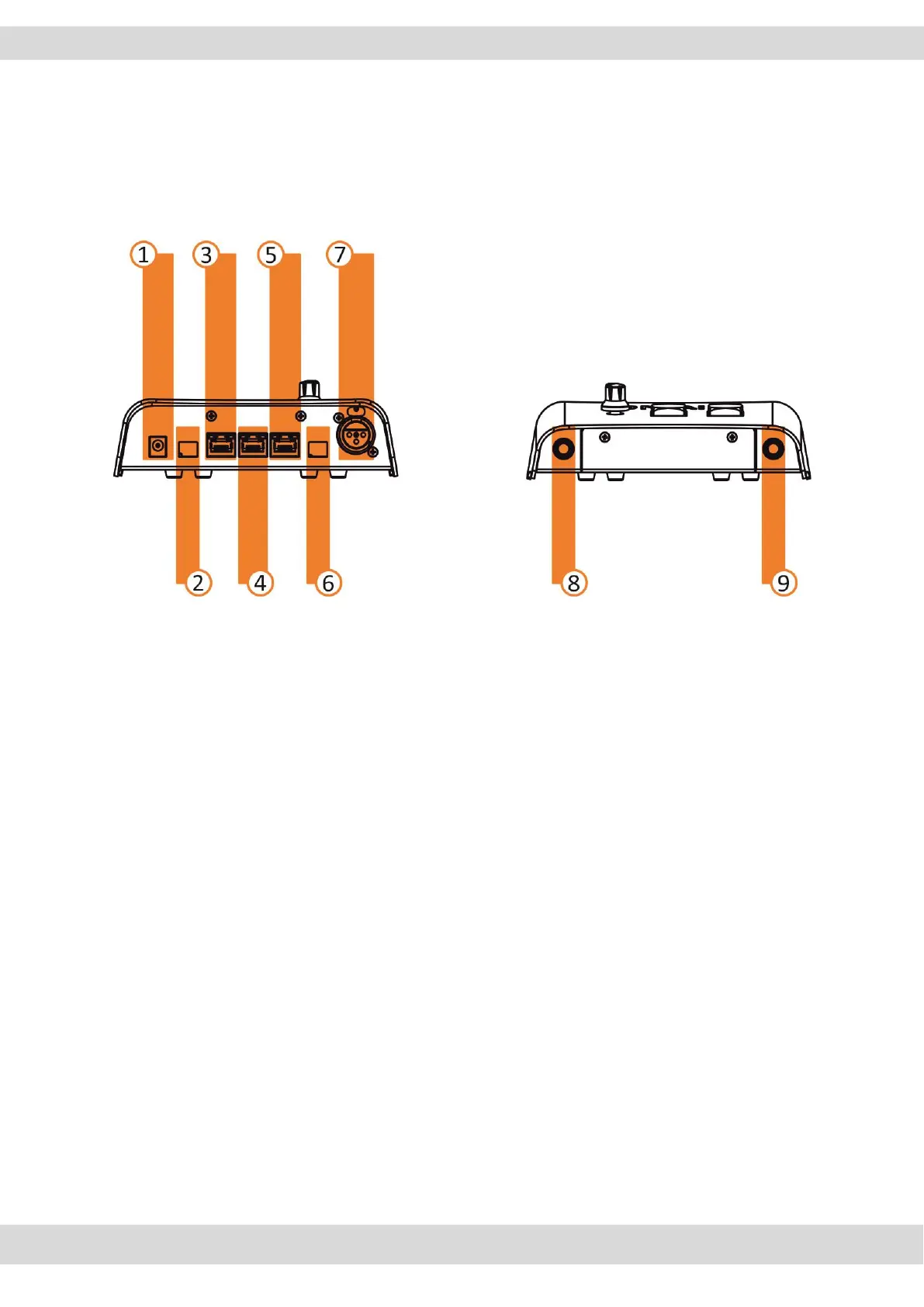

1.7 TALKBOX CONNECTIONS
1.
1. Power Supply
12VDC 1A
6.
2. Mic Light
2 PIN Screw Connector - (12VDC output).
2.
3. Studio Light
4. 2 PIN Screw Connector - (12VDC
output).
7.
5. Mic Input
6. XLR Female Connector.
3.
7. HDP Output
8. RJ45 Connectors (SFTP) - (Passive Loop
Output).
9.
8.
10. HDP-1-TBox
Jack 6.3mm Female Connector - (Min. Imp.
32Ω).
4.
HDP Input
RJ45 Connectors (SFTP).
9.
HDP-2-TBox
Jack 6.3mm Female Connector - (Min. Imp.
32Ω).
5.
Talk Box Connection
RJ45 Connectors (SFTP) - (Passive Loop
Output).
11.
12.
