GENERAL DESCRIPTION|COMMUNICATION CONNECTORS
OXYGEN 1000 & OXYGEN 2000 · User Manual · ENG

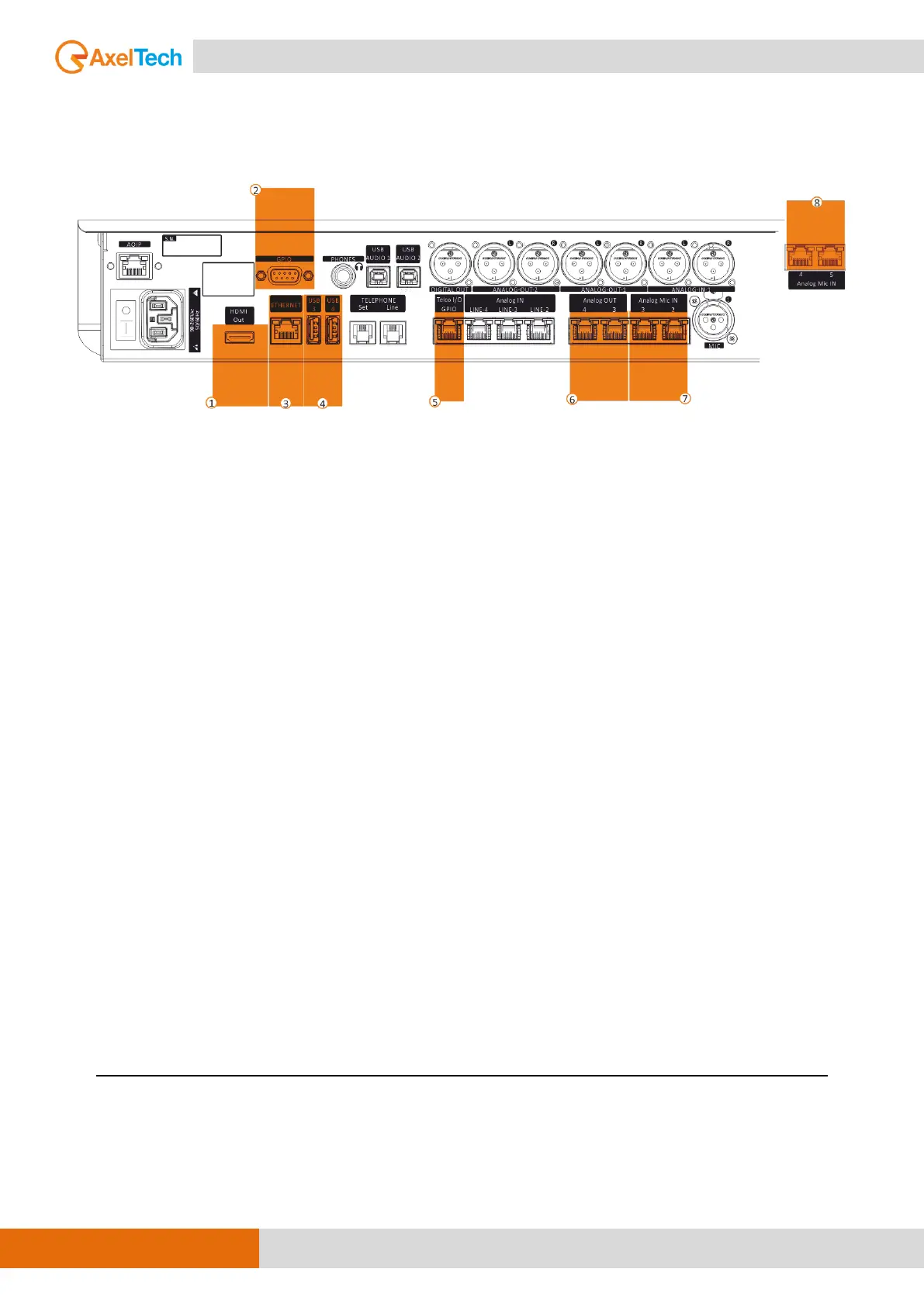

1.6 COMMUNICATION CONNECTORS
1.
2.
3.
4.
5.
6.
HDMI Output
Standard HDMI Female Connector – External Monitor.
GPIO
SUB-D 9p Female – 4 GPI + 4 GPO.
Ethernet
RJ45 Female Connector (CAT 6) Internet Connections
(online updates), Web interface, remote control, and
monitoring.
USB 3, USB 4
ports Type A to Export and Import the mixer
configurations.
Import LOGO
Telco I/O GPIO – RJ45 (SFTP cable). The RJ45 cable
transports the TELCO Input, the TELCO Output and the
GPIO signals to get the incoming call signal for flashing
of button F1 and to control the external hybrid device
for hook and drop purposes.
Pinout – in scheme
+188 – Oxy1000/Oxy2000-RJ45-Telco
ANALOG OUT 3, ANALOG OUT 4 - on RJ45 (SPTF
Cable) for audio HEADPHONES, 1 GPO signal for ONAIR
LIGHTS and TALKBOXES.
Pinout - in scheme
+190 - Oxy1000/Oxy2000-RJ45-LineOut
7.
8.
ANALOG MIC IN 2, ANALOG MIC IN 3 - RJ45 (SFTP
Cable) – cable for the Balanced Audio (Mic 2/3
Input) and for 2 GPI and for 1 GPO signals on each
connector.
These 2 ports are useful for 2 Talk Box interfacing.
Pinout - in scheme
+187 - Oxy1000/Oxy2000-RJ45-Mic
ANALOG MIC IN 4, ANALOG MIC IN 5** RJ45 (SFTP
Cable) – for Balanced Audio (Mic 4/5 Input) for 2 GPI
and for 1 GPO signals on each connector.
These 2 ports are useful for 2 Talk Box interfacing.
ANALOG-IN-1 (input scheme - point 9.) and GPIO
(communication scheme – point 1.) will be lost if
these option should be requested.
Pinout - in scheme
+187 - Oxy1000/Oxy2000-RJ45-Mic
** Optional only on OXYGEN 2000
