Page 14 AXIS 212 PTZ/-V Installation Guide

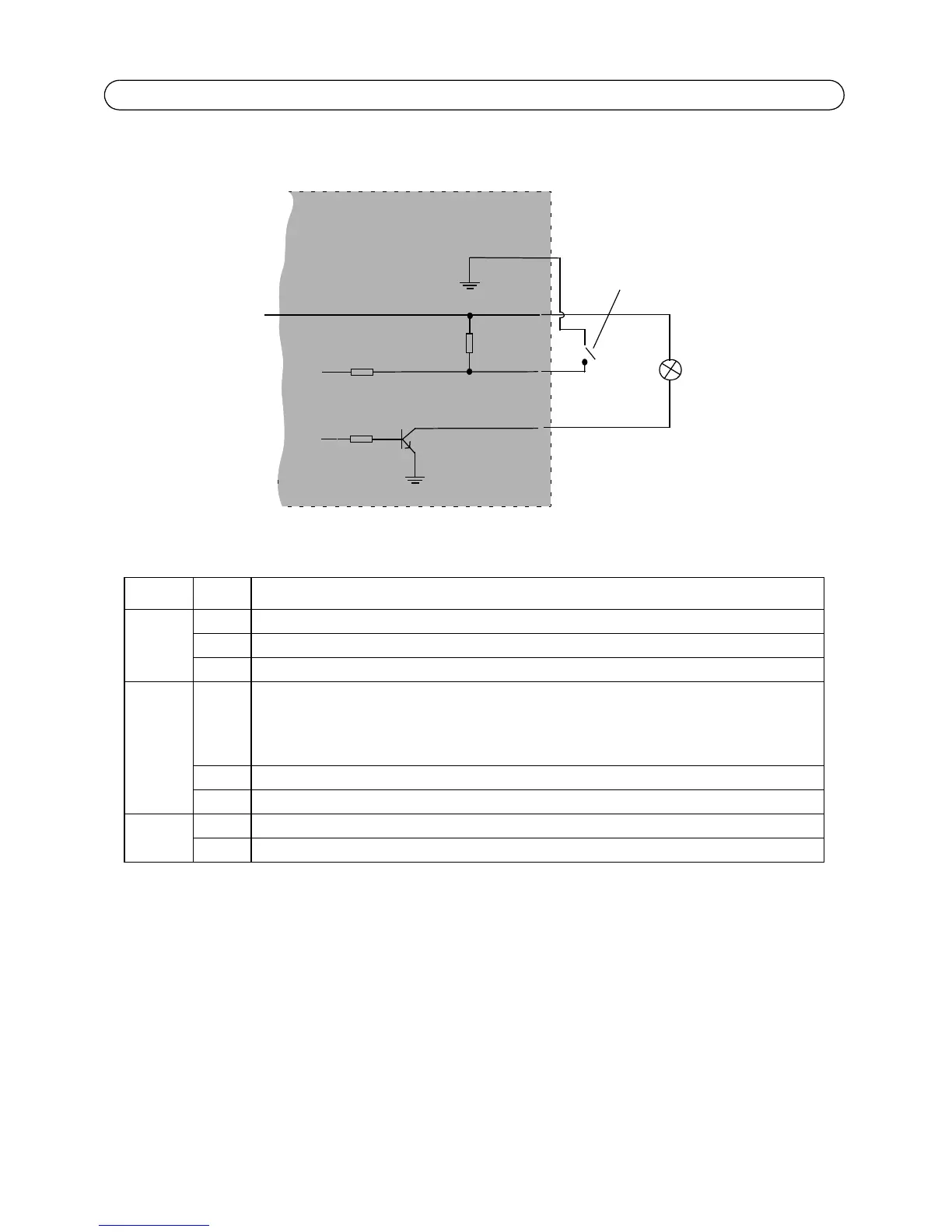

Connection diagram
LED indicators
LED Color Description
Network Green Steady for connection to 100 Mbit/s network. Flashes for network activity.
Amber Steady for connection to 10 Mbit/s network. Flashes for network activity.
Unlit No connection.
Status Green Shows steady green for normal operation.
Note: The Status LED can be configured to be unlit during normal operation, or to flash
only when the camera is accessed. See the online help files for more information. Go to
Setup > System Options > LED settings
Amber Steady during startup, reset to factory default or when restoring settings.
Red Slow flash for failed upgrade.
Power Green Normal operation.
Amber Flashes green/amber during firmware upgrade.
o
z
AXIS 212 PTZ/-V
3.3V, max. 50mA
e.g.
doorbell
4
o
3
o
o
2
1
