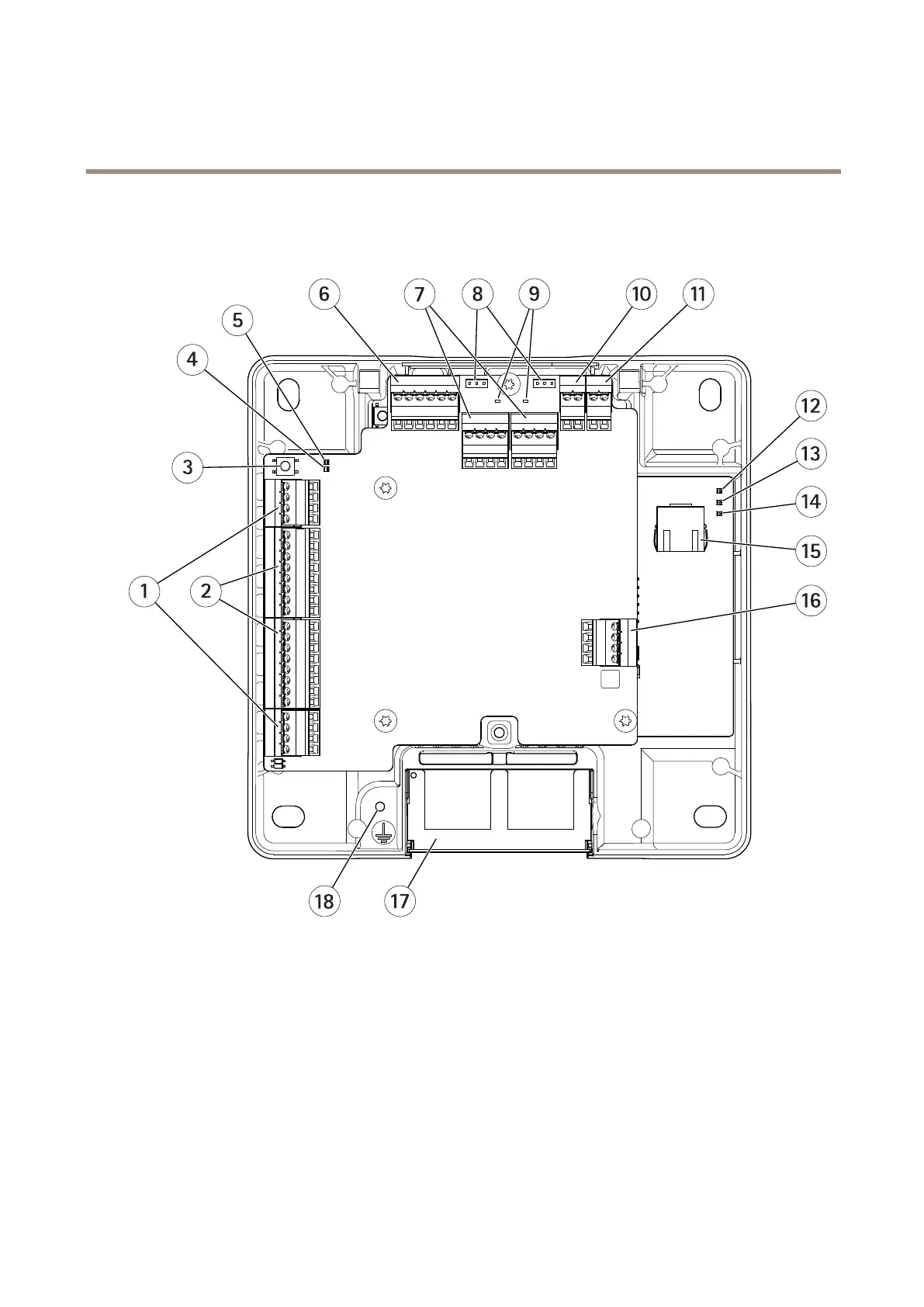

AXISA1601NetworkDoorController
Productoverview
Productoverview
1
Doorconnectoronpage38(2x)
2
Readerconnectoronpage37(2x)
3
Controlbuttononpage36
4
ReaderovercurrentLED
5
RelayovercurrentLED
6
Auxiliaryconnectoronpage39
7
Relayconnectoronpage39(2x)
8
Relayjumper(2x)
9
RelayLED(2x)
10
Backupbatteryinputconnectoronpage41
11
Powerconnectoronpage41
12
PowerLED
13
StatusLED
14
NetworkLED
5
