6.1 Power
 power input

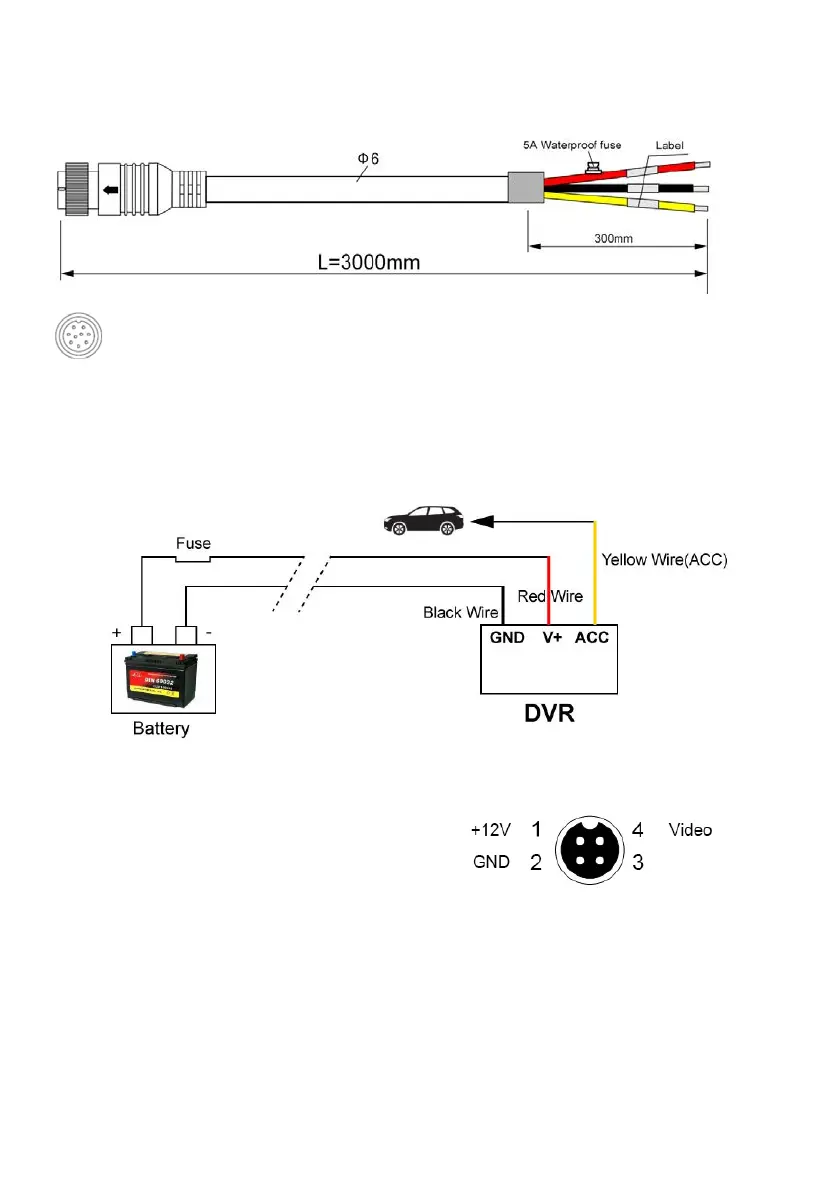

9 PIN Avation female connect to 9 PIN Avation male on the DVR
 Connection
Connect ignition wire to yellow ACC wire of DVR, battery Positive to V+(Red wire),
Negative to GND(black wire)
6.2 Camera(AVIN 1~4 )
 See below 4 cameras diagram.
 How to connect cameras
Connect 4 cameras on below cable which connects to back plate of DVR
Audio
