Axis P3346 Installation Guide

AXIS P33/P33-V Network Camera Series Installation Guide Page 15
ENGLISH
Adjust the Lens
Open the Live View page in the web interface and make the following adjustments to the camera:
1. Loosen the locking screw and tilt adjustment screws.
2. Turn the lens (with the lens holder) to the desired position. Make sure the horizontal lines on
either side of the lens are aligned horizontally.
Note:
Ensure that the mark on the lens cover, between the horizontal lines, is facing up.
3. Once satisfied, gently tighten the locking screw and tilt adjustment screws to secure the
camera’s position.
4. Open the Focus Adjustment page in the Web interface under Setup > Basic Setup > Focus &
Zoom, and follow the on-screen instructions. Use the image window to adjust the focus and
zoom. See the online help files for more information.
Note:
Due to the dome’s refraction, the image may appear slightly out of focus once the dome has been
placed. To correct this go to the Focus Adjustment page in the Web interface under Setup > Basic
Setup > Focus & Zoom, and adjust the focus again.
Warning! Adjusting the focus and zoom manually can damage the lens.

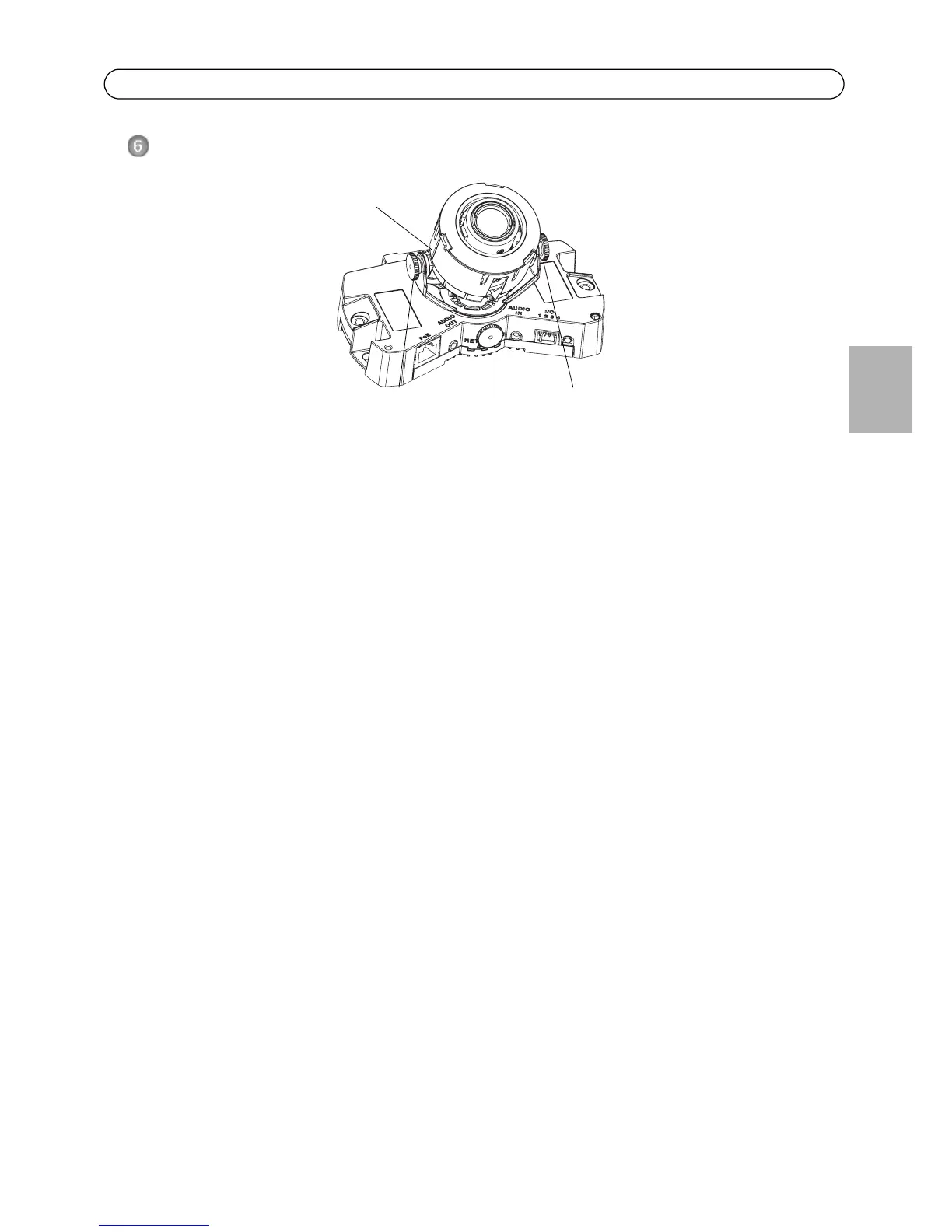

Locking screw
Tilt adjustment screw
Tilt adjustment screw
Horizontal line

Axis P3346 Specifications

General

Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	2048 x 1536 (QXGA)
Pan range	0 - 360 °
White balance	Auto
Tilt angle range	0 - 160 °
Angle of rotation	340 °
Camera shutter speed	1/35500 - 1/6 s
Minimum illumination	0.08 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Security algorithms	802.1x RADIUS, HTTPS
Video motion detection	Yes
Audio formats supported	AAC
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/v6, HTTP, HTTPS, QoS L3, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Dimensions (WxDxH)	96 x 148 x 101 mm
Compliance industry standards	IEEE 802.3u, IEEE 802.3af
Power source type	PoE
Certification	EN 55022 B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B B, ICES-003 B, VCCI B, C-tick AS/NZS CISPR 22, EN 60950-1
Processor model	ARTPEC-3
Placement supported	Indoor
Flash memory	128 MB
Compatible memory cards	SD, SDHC
Housing material	Polycarbonate (PC)
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	15 - 85 %

Weight and Dimensions

Weight	490 g
