AXISQ8752-EBispectralPTZCamera

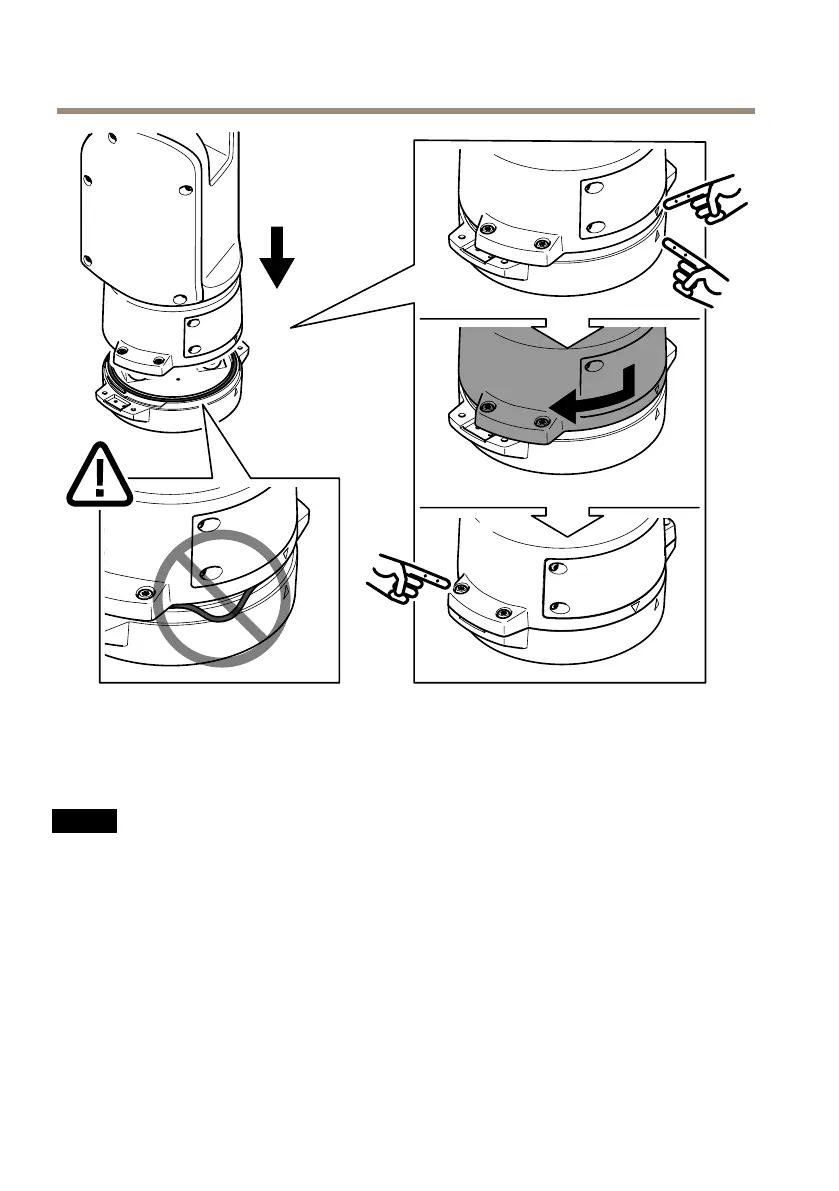

13.Placethepositioningunitonthebaseunit.Makesurethatthearrowsonthetwo
unitsarealigned.
14.Turnthepositioningunitclockwisebacktoitsoriginalpositionandtightenthefour
baseunitscrews(torque3.0Nm).
NO NO
NO
TICE TICE
TICE
Makesurethatthecablesdon’tgetpinchedwhenyouassemblethetwounits.
