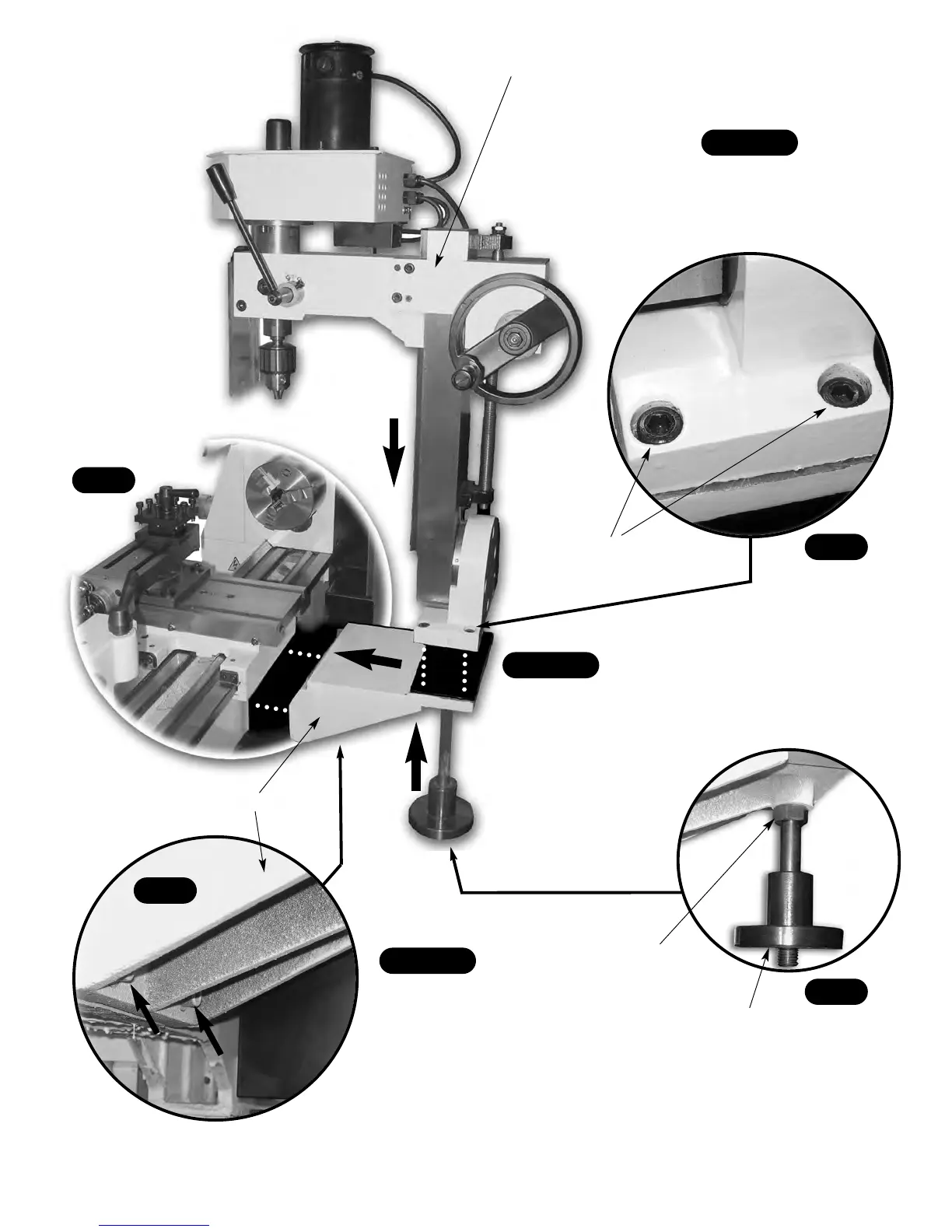

Mill assembly
M8 Caphead bolts
Lower the mill assembly down
onto the angle support casting
and secure in place using four M8
caphead bolts. (See figs C & E)
Offer up and secure the angle support
casting to the side of the lathe bed
using four M10 caphead bolts/
washers and tighten securely. (See
figs C & D) DO NOT OVERTIGHTEN
Tip the lathe forward and have your assistant thread
the support leg up into the angle support casting.
(See figs C & F ) Adjust the the support leg until it
makes contact with the
surface of your bench or
stand, tighten the lock
nut to lock the leg in
position.
Leg Support
Lock nut
Angle support casting
Step 2
Step 4
Step 3
INITIAL
ASSEMBLY
Fig E
Fig C
Fig D
Fig F
Make sure that everything is secure then replace the splash guard as described on page 22.
